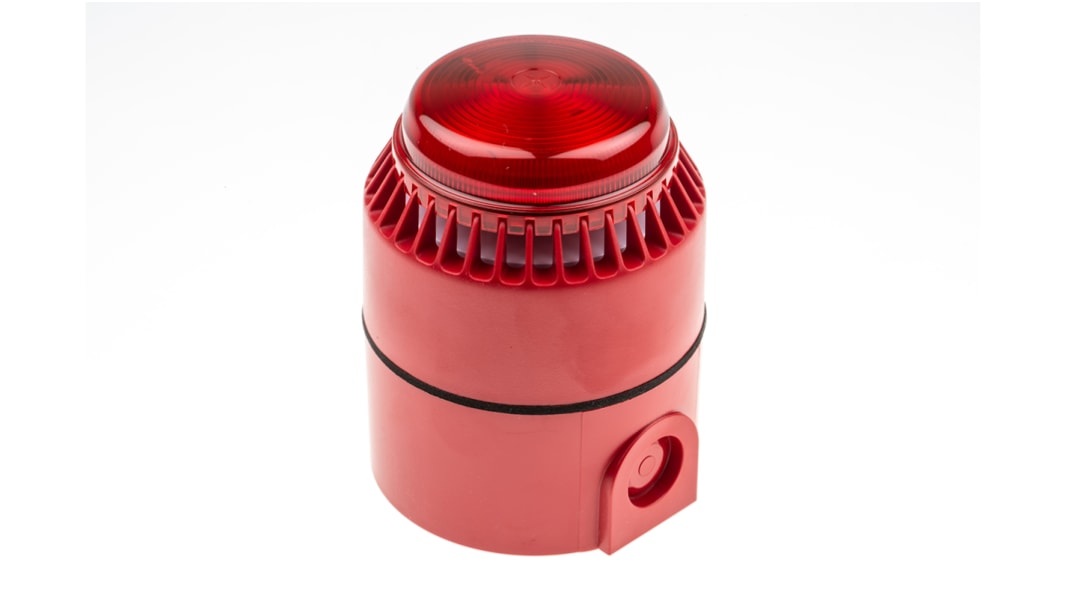

Eaton Flashni Series Red Sounder-Beacon Combination, IP65, IP55 28V dc Wall 110 dB @ 1m

RS Stock No.:: 529-4474
Distrelec Article No.:: 304-00-845
Mfr. Part No.:: 640451FULL-0079X
Brand:: Eaton

Eaton Flashni Series Red Sounder-Beacon Combination, IP65, IP55 28V dc Wall 110 dB @ 1m

Subtotal (1 unit)*

£67.61

(exc. VAT)

£81.13

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 180 unit(s) shipping from 16 March 2026
Plus 28 unit(s) shipping from 16 March 2026
Plus 110 unit(s) shipping from 17 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£67.61

*price indicative

RS Stock No.:: 529-4474
Distrelec Article No.:: 304-00-845
Mfr. Part No.:: 640451FULL-0079X
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Sounder-Beacon Combination
	Minimum Sound Level	65dB
	Lens Colour	Red
	Current Type	DC
	Light Effect	Flashing
	Sounder Type	Electronic
	Mount Type	Wall
	Current Consumption	111 mA
	Series	Flashni
	Bulb Type	Xenon
	Maximum Supply Voltage	28V dc
	Minimum Operating Temperature	-10°C
	Sound Level at 1m	110dB
	Housing Colour	Red
	Maximum Sound Level	110dB
	Number of Tones	32
	Hazardous Area Certification	No
	IP Rating	IP65, IP55
	Standards/Approvals	EN 54-3
	Housing Material	ABS

	Select all
	Brand Eaton
	Product Type Sounder-Beacon Combination
	Minimum Sound Level 65dB
	Lens Colour Red
	Current Type DC
	Light Effect Flashing
	Sounder Type Electronic
	Mount Type Wall
	Current Consumption 111 mA
	Series Flashni
	Bulb Type Xenon
	Maximum Supply Voltage 28V dc
	Minimum Operating Temperature -10°C
	Sound Level at 1m 110dB
	Housing Colour Red
	Maximum Sound Level 110dB
	Number of Tones 32
	Hazardous Area Certification No
	IP Rating IP65, IP55
	Standards/Approvals EN 54-3
	Housing Material ABS

COO (Country of Origin):: GB

Sounder Beacon

The Flashni DC flashy sounder beacon with a red lens is an audible and visual device with one single installation point. It has a sound output of 101dB. This reduces installation costs and is also less obtrusive than two separate devices. It is suitable for fire, industrial, and signalling application requiring a combined indication device.

Additional options:

Red deep base - 530-6066

White deep base - 530-6072

VdS approved sounder and beacons - 530-6038, 530-6016, 529-4474, 529-4452 and 529-4468

The sounder and beacon elements for 529-4474 and 529-4468 are individually wired. This enables them to be controlled separately

530-6038, 530-6016, 529-4474, 529-4452 and 529-4468 are EN54 part 3 compliant

529-4452 is CPD compliant

Warning:

This product exceeds the requirements of En54-3. However, it is not designed to meet EN54-23. Where the construction product directive or regulation (CPD/CPR) is a country requirement, it cannot be used, legally, to alert room occupants to a fire alarm condition. For countries where CPD/CPR is not applicable, this note should be disregarded.

Features & Benefits

The supply voltage is between 18VDC and 28VDC

Includes 3 tones with tone select switch

Reduced installation costs due to the single installation point

High output sounder beacon

Automatic sounder synchronisation

Suitable for a multitude of applications

Provides tone clarity, reducing confusion

Xenon flash

Volume control to alter the alarm to suit the application

Reverse polarity protected

ABS cases and polycarbonate Fresnel lens

Flash power of 0.7j

Operating temperature range is between -10°C and 55°C

How do I install this sounder beacon?

You can install this sounder beacon by directly attaching it to a wall or flat machine surface. Its single installation point makes mounting quick and simple.

Can I adjust the volume of the sounder?

IP65 rated

CE certified

Yes, you can conveniently adjust the volume of this sounder using the built-in control button.

Note

Eaton formerly known as Fulleon
