Clifford & Snell YL40 Series Amber Beacon-Sounder Combination, IP65 24V Base 108 dB @ 1m
- RS Stock No.:
- 224-7667
- Mfr. Part No.:
- 245180
- Brand:
- Clifford & Snell

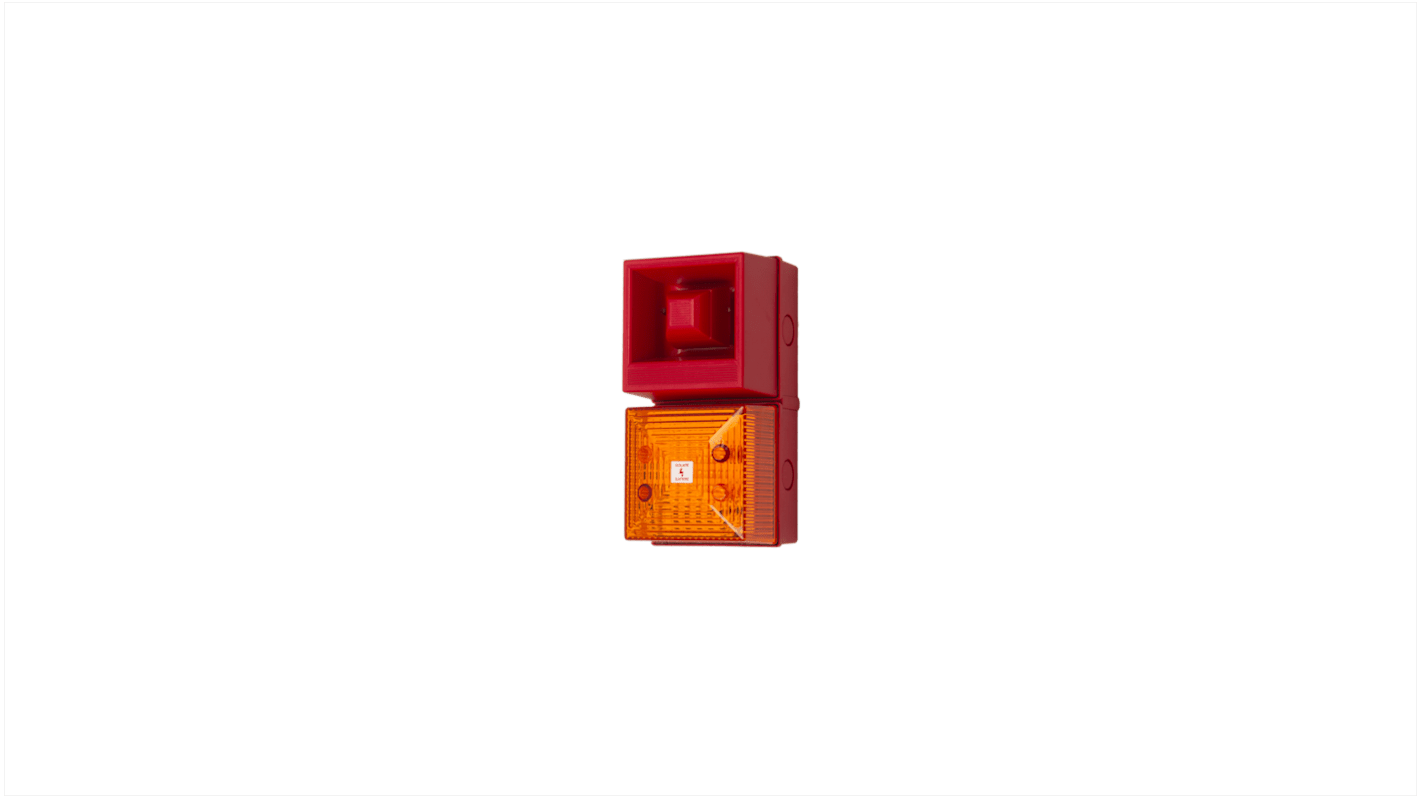

Image representative of range
Subtotal (1 unit)*
£107.77
(exc. VAT)
£129.32
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 5 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £107.77 |
*price indicative
- RS Stock No.:
- 224-7667
- Mfr. Part No.:
- 245180
- Brand:
- Clifford & Snell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Clifford & Snell | |
| Product Type | Beacon-Sounder Combination | |
| Lens Colour | Amber | |
| Current Type | DC | |
| Light Effect | Strobe | |
| Sounder Type | Electronic | |
| Mount Type | Base | |
| Current Consumption | 70mA | |
| Series | YL40 | |
| Maximum Supply Voltage | 24V | |
| Bulb Type | LED | |
| Housing Colour | Red | |
| Minimum Operating Temperature | -35°C | |
| Sound Level at 1m | 108dB | |
| Maximum Operating Temperature | 70°C | |
| Maximum Sound Level | 108dB | |
| Number of Tones | 32 | |
| IP Rating | IP65 | |
| Hazardous Area Certification | No | |
| Housing Material | ABS, Polycarbonate | |
| Standards/Approvals | CE Certified EN54-3 UKCA | |
| Select all | ||
|---|---|---|
Brand Clifford & Snell | ||
Product Type Beacon-Sounder Combination | ||
Lens Colour Amber | ||
Current Type DC | ||
Light Effect Strobe | ||
Sounder Type Electronic | ||
Mount Type Base | ||
Current Consumption 70mA | ||
Series YL40 | ||
Maximum Supply Voltage 24V | ||
Bulb Type LED | ||
Housing Colour Red | ||
Minimum Operating Temperature -35°C | ||
Sound Level at 1m 108dB | ||
Maximum Operating Temperature 70°C | ||
Maximum Sound Level 108dB | ||
Number of Tones 32 | ||
IP Rating IP65 | ||
Hazardous Area Certification No | ||
Housing Material ABS, Polycarbonate | ||
Standards/Approvals CE Certified EN54-3 UKCA | ||
Clifford & Snell Amber Sounder Beacon, 108dB, 24V DC - YL40 Series - 245180
This electronic sounder beacon from Clifford & Snell offers clear audio and visual signalling for your industrial workplace. The device's xenon tube gives off a bright strobe light that quickly draws attention to a machine hazard. Its electronic sounder has a loud sound output of 108dB (decibels), so you can hear it clearly even from a distance. Thanks to its light weight of just 510g, this beacon won't place too much strain on your equipment.
Features & Benefits
• Wide operating temperature range of -35°C to +70°C for use in demanding environments
• Low current consumption of 345mA for energy-efficient operation
• IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
• UV-stable polycarbonate (PC) lens is resistant to warping and discolouration in direct sunlight
Applications
• Marine industry
• Chemical processing facilities
• Gas plants
How many tones does this beacon have?
This beacon offers a selection of 32 different tones for versatile signalling.
Is this sounder beacon flame-retardant?
Yes, the PC lens and ABS (acrylonitrile butadiene styrene) base are both flame-retardant, so they won't promote the spread of flames in the event of a fire.
