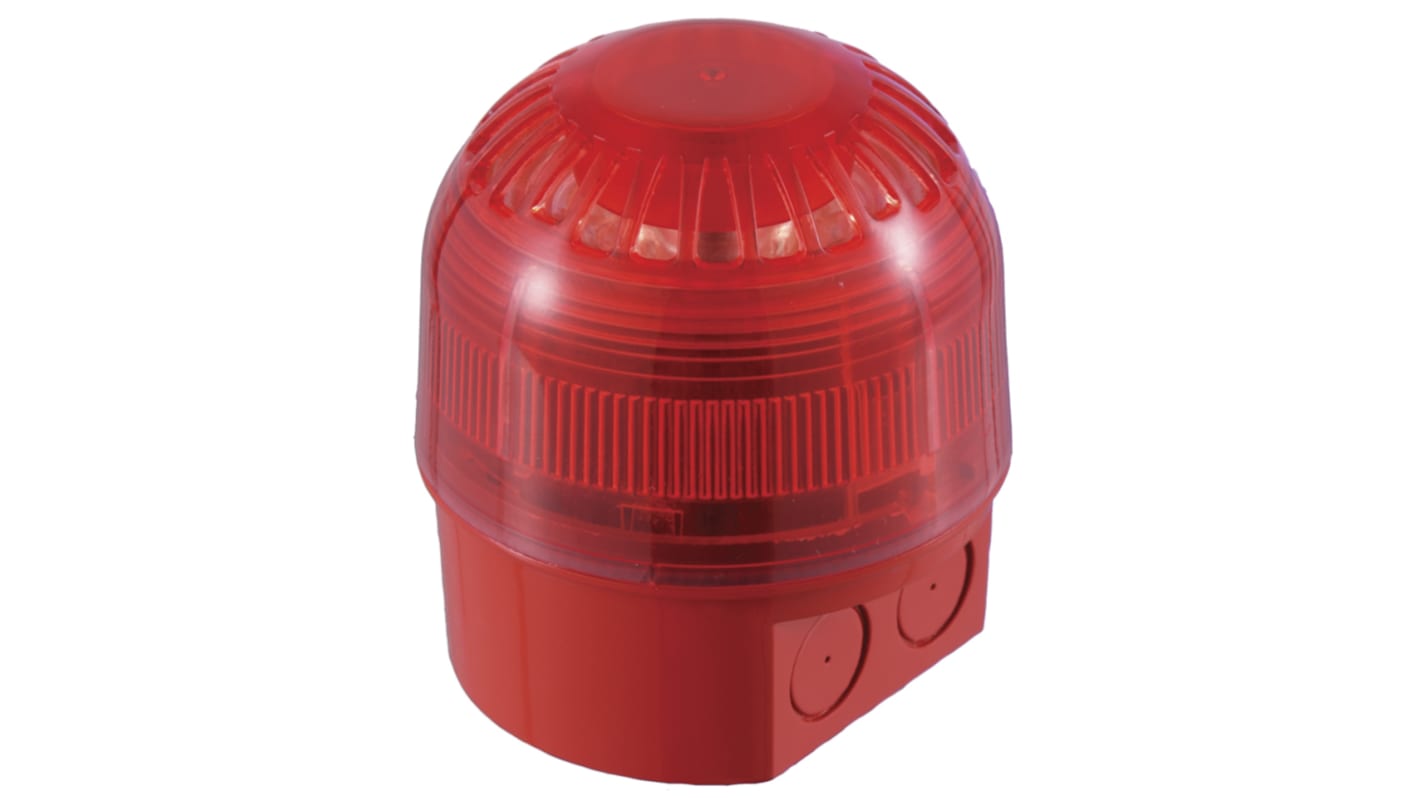

Klaxon Sonos Series Red Sounder-Beacon Combination, IP65 60V Shallow Base, Base 106 dB @ 1m
- RS Stock No.:
- 183-3833
- Mfr. Part No.:
- PSC-0029
- Brand:
- Klaxon
Subtotal (1 unit)*
£63.61
(exc. VAT)
£76.33
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £63.61 |
*price indicative
- RS Stock No.:
- 183-3833
- Mfr. Part No.:
- PSC-0029
- Brand:
- Klaxon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Klaxon | |
| Product Type | Sounder-Beacon Combination | |
| Lens Colour | Red | |
| Minimum Sound Level | -20dB | |
| Current Type | DC | |
| Light Effect | Flashing | |
| Sounder Type | Electronic | |
| Mount Type | Shallow Base, Base | |
| Current Consumption | 4, 45mA | |
| Series | Sonos | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 60V | |
| Housing Colour | White | |
| Sound Level at 1m | 106dB | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Maximum Sound Level | 106dB | |
| Number of Tones | 32 | |
| IP Rating | IP65 | |
| Hazardous Area Certification | NO | |
| Housing Material | Flame Retardant Polycarbonate | |
| Standards/Approvals | EN54 3 Type B, EN54 3 Type A | |
| Select all | ||
|---|---|---|
Brand Klaxon | ||
Product Type Sounder-Beacon Combination | ||
Lens Colour Red | ||
Minimum Sound Level -20dB | ||
Current Type DC | ||
Light Effect Flashing | ||
Sounder Type Electronic | ||
Mount Type Shallow Base, Base | ||
Current Consumption 4, 45mA | ||
Series Sonos | ||
Bulb Type LED | ||
Maximum Supply Voltage 60V | ||
Housing Colour White | ||
Sound Level at 1m 106dB | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Maximum Sound Level 106dB | ||
Number of Tones 32 | ||
IP Rating IP65 | ||
Hazardous Area Certification NO | ||
Housing Material Flame Retardant Polycarbonate | ||
Standards/Approvals EN54 3 Type B, EN54 3 Type A | ||
- COO (Country of Origin):
- GB
The Sonos Sounder Beacon is a general purpose electronic sounder for fire, security and industrial applications. With the TimeSaver base, connections are made to the base during the initial wiring phase which results in faster and more reliable installation. The sounder head ’twists and clicks’ into the base on commissioning, avoiding the wiring and connection problems associated with traditional sounders. With a choice of 32 tones including all the major international standards, the Sonos Sounder Beacon has universal acceptance.
Low current LED beacon
Simple ’First Fix’ installation
Weatherproof (deep base units)
Choice of lens colours
Sounder and beacon can be controlled separately
Tone and volume can be preset or adjusted off-base - 20dB
Separate connections for sounder & beacon
Applications - Fire, security, industrial alarm
