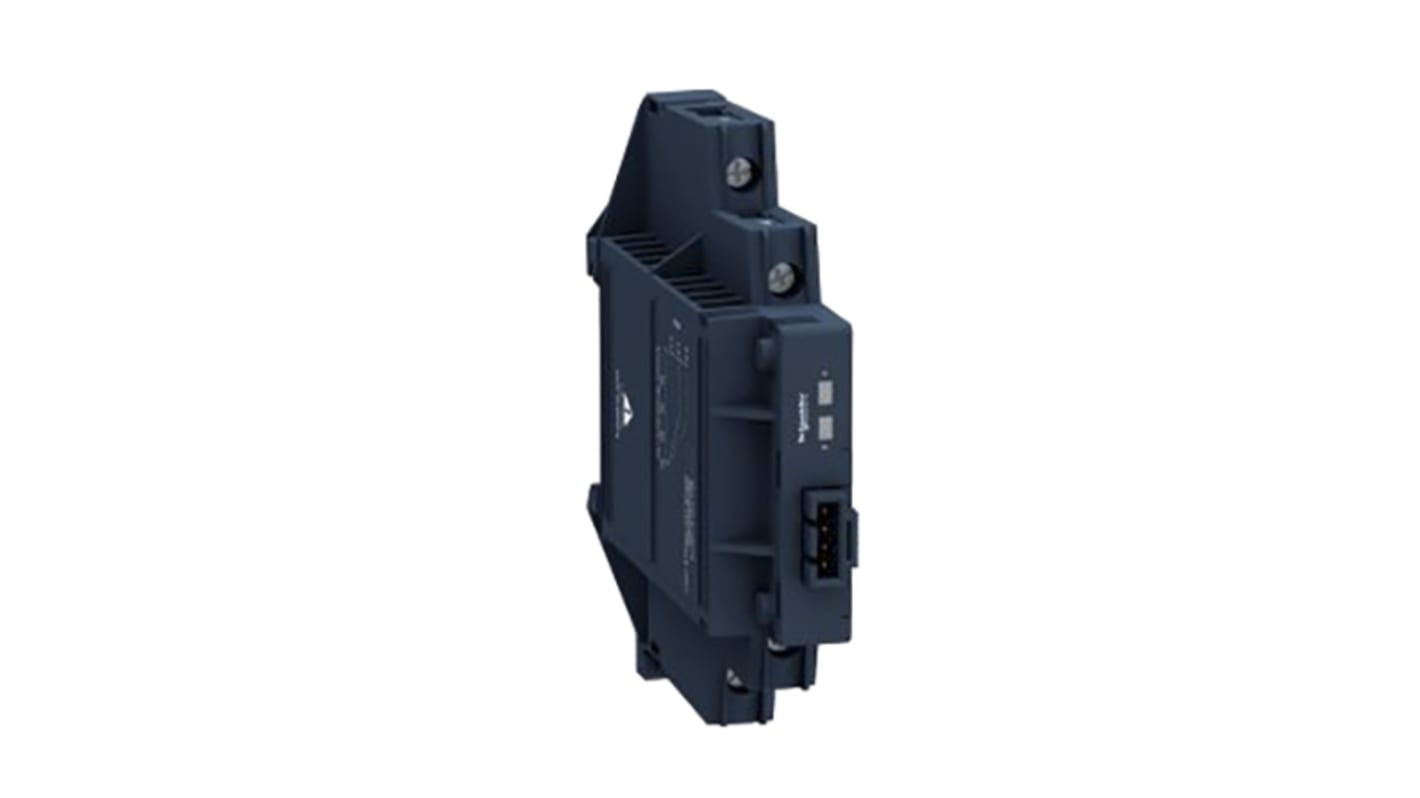

Schneider Electric Solid State Relay, 6 A Load, DIN Rail Mount, 600 V ac Load, 32 V dc Control
- RS Stock No.:
- 922-1990
- Mfr. Part No.:
- SSM2A36BDR
- Brand:
- Schneider Electric
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 922-1990
- Mfr. Part No.:
- SSM2A36BDR
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Load Current | 6 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 600 V ac | |
| Minimum Load Voltage | 48 V ac | |
| Minimum Control Voltage | 4 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 4 → 32 V dc | |
| Minimum Load Current | 0.15 A | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Contact Configuration | SPST | |
| Output Device | SCR | |
| Relay Type | Single Channel Relay | |
| Maximum Turn On Time | 1/2 cycles | |
| Load Voltage Range | 48 → 600V ac | |
| Dimensions | 18.29 x 84.38 x 87.6mm | |
| Special Features | Integrated Heat Sinks for Effective Thermal Management & Space Savings | |
| Standards Met | CE, CSA, UL | |
| Capacitance | 10pF | |
| Operating Temperature Range | -30 → +80°C | |
| Depth | 84.4mm | |
| Height | 87.6mm | |
| Off State Leakage Current | 0.25 mA | |
| Length | 18.3mm | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Load Current 6 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 600 V ac | ||
Minimum Load Voltage 48 V ac | ||
Minimum Control Voltage 4 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 4 → 32 V dc | ||
Minimum Load Current 0.15 A | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Contact Configuration SPST | ||
Output Device SCR | ||
Relay Type Single Channel Relay | ||
Maximum Turn On Time 1/2 cycles | ||
Load Voltage Range 48 → 600V ac | ||
Dimensions 18.29 x 84.38 x 87.6mm | ||
Special Features Integrated Heat Sinks for Effective Thermal Management & Space Savings | ||
Standards Met CE, CSA, UL | ||
Capacitance 10pF | ||
Operating Temperature Range -30 → +80°C | ||
Depth 84.4mm | ||
Height 87.6mm | ||
Off State Leakage Current 0.25 mA | ||
Length 18.3mm | ||
- COO (Country of Origin):
- MX
Zelio SSM Solid State Modular Relays
Schneider Electric Zelio solid state relays provide a compact and innovative solution for a wide variety of applications with interfacing control and load switching. The SSM series DIN Rail mount relays offer a modular IP20 housing design with built in heatsink for optimised operating conditions.
Easy maintenance
IP20
High switching frequency
Resistance to shock, vibration and contamination
Long life span
IP20
High switching frequency
Resistance to shock, vibration and contamination
Long life span
