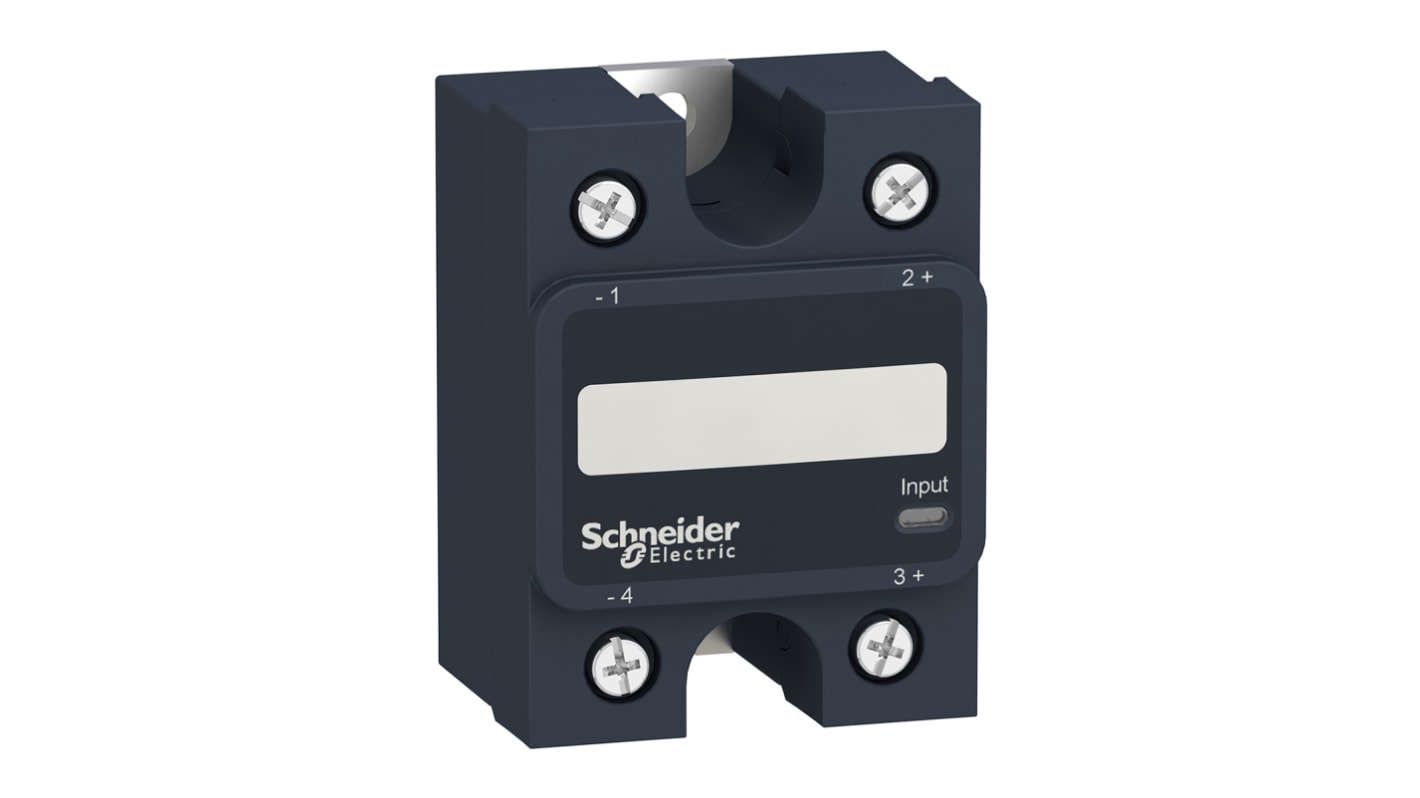

Schneider Electric Solid State Relay, 75 A Load, Panel Mount, 300 V ac Load, 32 V dc Control
- RS Stock No.:
- 904-5686
- Mfr. Part No.:
- SSP1A175BD
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£50.16
(exc. VAT)
£60.19
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 04 December 2025
Units | Per unit |
|---|---|
| 1 + | £50.16 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 904-5686
- Mfr. Part No.:
- SSP1A175BD
- Brand:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Load Current | 75 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 300 V ac | |
| Minimum Load Voltage | 24 V ac | |
| Minimum Control Voltage | 3 V dc | |
| Maximum Control Voltage | 32 V dc | |
| Switching Type | Zero Voltage | |
| Control Voltage Range | 3 → 32 V dc | |
| Minimum Load Current | 0.15 A | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Contact Configuration | SPST | |
| Output Device | SCR | |
| Relay Type | Solid State Relay | |
| Maximum Turn On Time | 1/2 cycle + 1 ms | |
| Load Voltage Range | 24 → 300V ac | |
| Dimensions | 44.45 x 34.29 x 58.89mm | |
| Better World Product | Yes | |
| Better World Verification | Green Premium | |
| Standards Met | CE, CSA, EAC, EN/IEC, REACH, UL | |
| Depth | 34.3mm | |
| Special Features | Green LED for Input Visualization | |
| Operating Temperature Range | -40 → +80°C | |
| Length | 44.5mm | |
| Off State Leakage Current | <= 1 mA | |
| Height | 58.9mm | |
| Capacitance | 10pF | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Load Current 75 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 300 V ac | ||
Minimum Load Voltage 24 V ac | ||
Minimum Control Voltage 3 V dc | ||
Maximum Control Voltage 32 V dc | ||
Switching Type Zero Voltage | ||
Control Voltage Range 3 → 32 V dc | ||
Minimum Load Current 0.15 A | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Contact Configuration SPST | ||
Output Device SCR | ||
Relay Type Solid State Relay | ||
Maximum Turn On Time 1/2 cycle + 1 ms | ||
Load Voltage Range 24 → 300V ac | ||
Dimensions 44.45 x 34.29 x 58.89mm | ||
Better World Product Yes | ||
Better World Verification Green Premium | ||
Standards Met CE, CSA, EAC, EN/IEC, REACH, UL | ||
Depth 34.3mm | ||
Special Features Green LED for Input Visualization | ||
Operating Temperature Range -40 → +80°C | ||
Length 44.5mm | ||
Off State Leakage Current <= 1 mA | ||
Height 58.9mm | ||
Capacitance 10pF | ||
- COO (Country of Origin):
- MX
Zelio SSP1 Solid State Relays
Zero voltage switching
1 Phase
Panel Mount
Simpler approach giving higher efficiency
Maintenance free
Full electronic unlimited lifespan
High switching frequency
Fast and precise control
Silent and reliable switching
No moving parts
Sustainable in harsh environments
Resistant to shock and vibration
Free from contact contaminations
Applications:
Suitable for a wide range of applications including:
Industrial machines
Packaging machines
Injection moulding
HVAC
Machines, building and medical equipment
Textile machines
