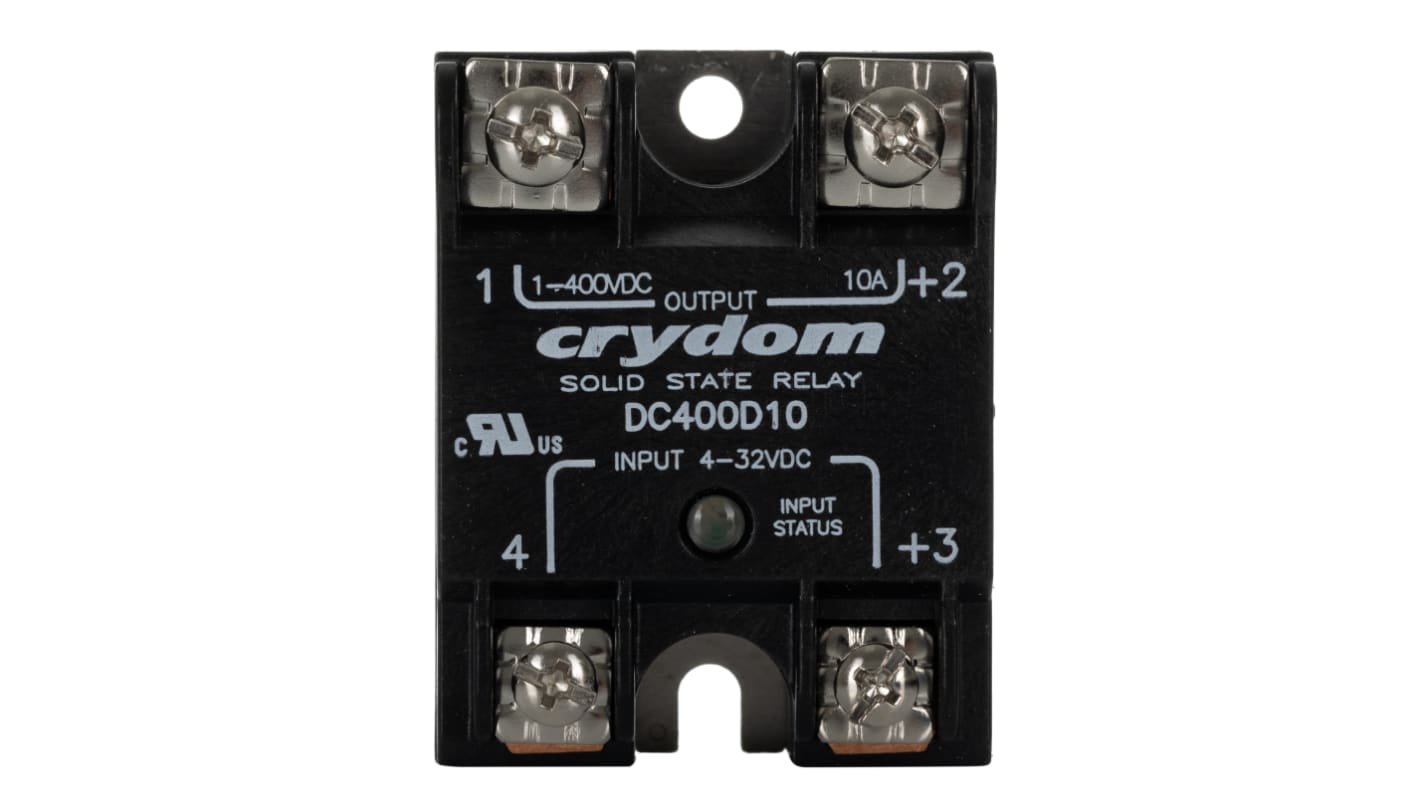

Sensata Crydom DC Series Series Solid State Relay, 10 A Load, Panel Mount, 300 V dc Load, 32 V dc Control

RS Stock No.:: 756-9515
Mfr. Part No.:: DC400D10
Brand:: Sensata / Crydom

Sensata Crydom DC Series Series Solid State Relay, 10 A Load, Panel Mount, 300 V dc Load, 32 V dc Control

View all Solid State Relays

Bulk discount available

Subtotal (1 unit)*

£104.37

(exc. VAT)

£125.24

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

8 unit(s) ready to ship
Plus 1 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£104.37
5 - 9	£99.14
10 - 24	£93.93
25 - 49	£88.70
50 +	£83.49

*price indicative

RS Stock No.:: 756-9515
Mfr. Part No.:: DC400D10
Brand:: Sensata / Crydom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Load Current	10 A
	Mounting Type	Panel Mount
	Maximum Load Voltage	300 V dc
	Minimum Load Voltage	1 V dc
	Maximum Control Voltage	32 V dc
	Minimum Control Voltage	4 V dc
	Switching Type	Instantaneous
	Control Voltage Range	4 → 32 V dc
	Minimum Load Current	2.5 mA
	Contact Configuration	SPST
	Terminal Type	Screw
	Output Device	MOSFET
	Package Style	Panel Mount
	Relay Type	Solid State Relay
	Series	DC Series
	Load Voltage Range	1 → 300V dc
	Maximum Turn On Time	0.075ms
	Dimensions	57.3 x 44.5 x 26.8mm
	Length	57.3mm
	Depth	44.5mm
	Minimum Operating Temperature	-40°C
	Standards Met	CE, RoHS Compliant
	Off State Leakage Current	0.4 mA
	Height	26.8mm
	Capacitance	8pF
	Maximum Operating Temperature	+100°C
	Operating Temperature Range	-30 → +80°C

	Select all
	Brand Sensata / Crydom
	Maximum Load Current 10 A
	Mounting Type Panel Mount
	Maximum Load Voltage 300 V dc
	Minimum Load Voltage 1 V dc
	Maximum Control Voltage 32 V dc
	Minimum Control Voltage 4 V dc
	Switching Type Instantaneous
	Control Voltage Range 4 → 32 V dc
	Minimum Load Current 2.5 mA
	Contact Configuration SPST
	Terminal Type Screw
	Output Device MOSFET
	Package Style Panel Mount
	Relay Type Solid State Relay
	Series DC Series
	Load Voltage Range 1 → 300V dc
	Maximum Turn On Time 0.075ms
	Dimensions 57.3 x 44.5 x 26.8mm
	Length 57.3mm
	Depth 44.5mm
	Minimum Operating Temperature -40°C
	Standards Met CE, RoHS Compliant
	Off State Leakage Current 0.4 mA
	Height 26.8mm
	Capacitance 8pF
	Maximum Operating Temperature +100°C
	Operating Temperature Range -30 → +80°C

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Relay, 2500Vrms Dielectric Strength, 10pF I/O Capacitance - PowerPlus DC Series - DC400D10

Want to flip on your system in a flash? Choose this solid-state relay from Sensata | Crydom. It has a quick turn-on time of just 0.075ms for near-instant control, making it ideal for time-sensitive applications. Thanks to the thermally conductive epoxy coating, this component shrugs off heat build-up to keep things running smoothly. It fits firmly onto a panel using screws, so it's a cinch to install. You'll find this device used in lighting and heating applications.

Features & Benefits

• Screw terminals take the hard work out of wiring to speed up installation
• Performs reliably in harsh environments, thanks to its broad operating temperature range between -30°C and +80°C
• Compact dimensions of 57.3 (L) x 44.5 (W) x 26.8mm (H) to maximise space on your panel

Can I use more than one SSR at a time?

Yes, you can use this relay in parallel with another to suit the demands of high-current applications.

What's the current rating of this SSR?

Its current rating of 10A makes it a practical pick for low-power applications.

DC Switching
