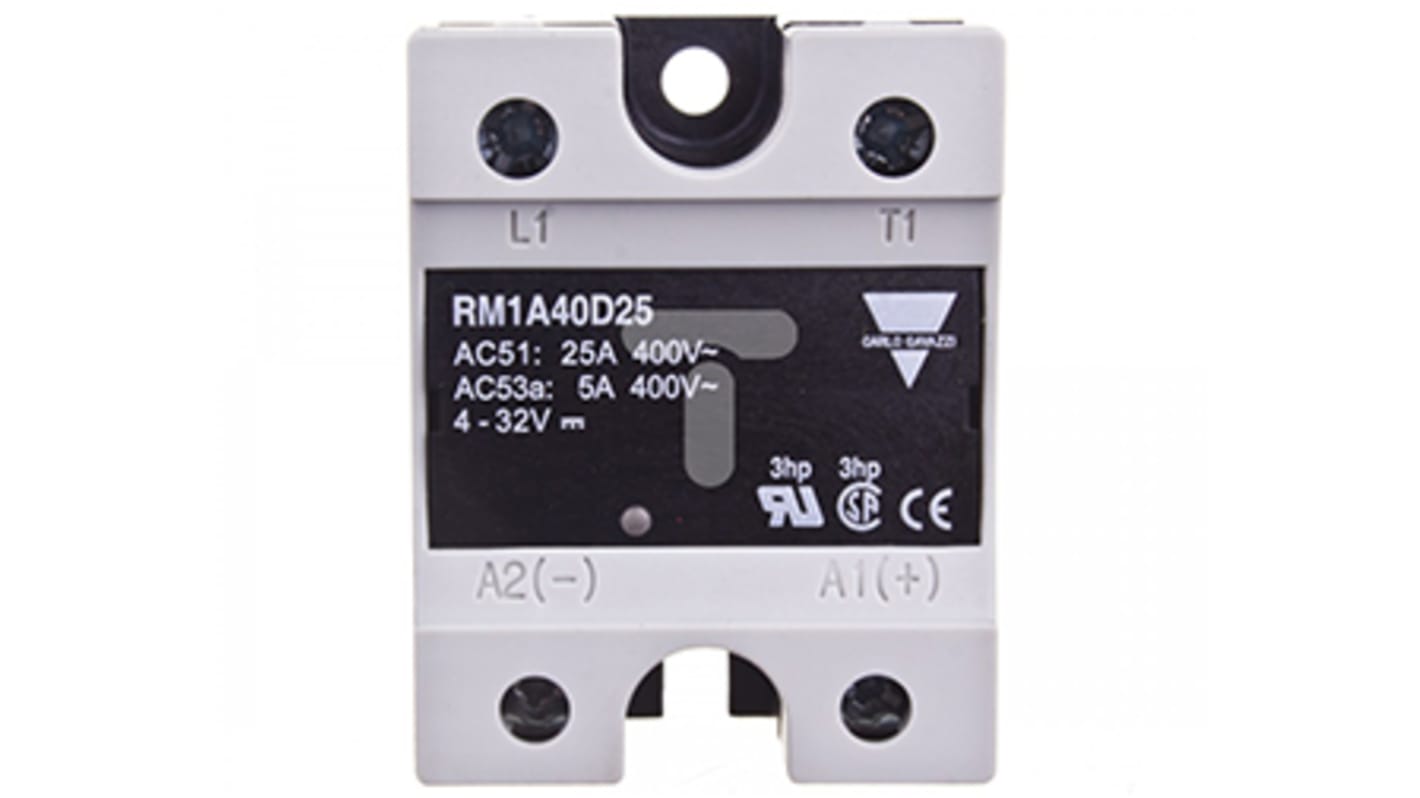

Carlo Gavazzi RM40 Series Solid State Relay, 25 A Load, Panel Mount, 440 V ac Load, 32 V dc Control
- RS Stock No.:
- 859-3279
- Mfr. Part No.:
- RM1A40D25
- Brand:
- Carlo Gavazzi
Bulk discount available
Subtotal (1 unit)*
£77.06
(exc. VAT)
£92.47
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £77.06 |
| 5 - 9 | £74.70 |
| 10 + | £71.46 |
*price indicative
- RS Stock No.:
- 859-3279
- Mfr. Part No.:
- RM1A40D25
- Brand:
- Carlo Gavazzi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Maximum Load Current | 25 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 440 V ac | |
| Minimum Load Voltage | 42 V ac | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 4 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 4 → 32 V dc | |
| Minimum Load Current | 150 mA | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Output Device | Varistor | |
| Relay Type | Single Phase | |
| Series | RM40 | |
| Maximum Turn On Time | 1 s | |
| Load Voltage Range | 42 → 440V ac | |
| Dimensions | 44.8 x 58.2 x 28.8mm | |
| Operating Temperature Range | -20 → +70°C | |
| Off State Leakage Current | 3 mA | |
| Special Features | Heat Sinked | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -20°C | |
| Height | 28.8mm | |
| Length | 44.8mm | |
| Depth | 58.2mm | |
Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Maximum Load Current 25 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 440 V ac | ||
Minimum Load Voltage 42 V ac | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 4 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 4 → 32 V dc | ||
Minimum Load Current 150 mA | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Output Device Varistor | ||
Relay Type Single Phase | ||
Series RM40 | ||
Maximum Turn On Time 1 s | ||
Load Voltage Range 42 → 440V ac | ||
Dimensions 44.8 x 58.2 x 28.8mm | ||
Operating Temperature Range -20 → +70°C | ||
Off State Leakage Current 3 mA | ||
Special Features Heat Sinked | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -20°C | ||
Height 28.8mm | ||
Length 44.8mm | ||
Depth 58.2mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
Carlo Gavazzi Zero-Switching Solid State Relay
Solid State relays with integral heatsink offer the user an excellent alternative to convensional relays. Comes equipped with an IP20 touch-safe cover can be easily detached to accomodate Ring Terminal connections and then be added back onto the relay. Integrated cooling fans are supplied with higher-rated relays, such as 75&90A variants
Easily mountable onto DIN rail
Zero-switching suitable for use with Resistive loads and motors
Integrated Snubber network
LED status indication
AC and/or DC control voltage to ensure your application is covered
70A maximum output current
Zero-switching suitable for use with Resistive loads and motors
Integrated Snubber network
LED status indication
AC and/or DC control voltage to ensure your application is covered
70A maximum output current
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
