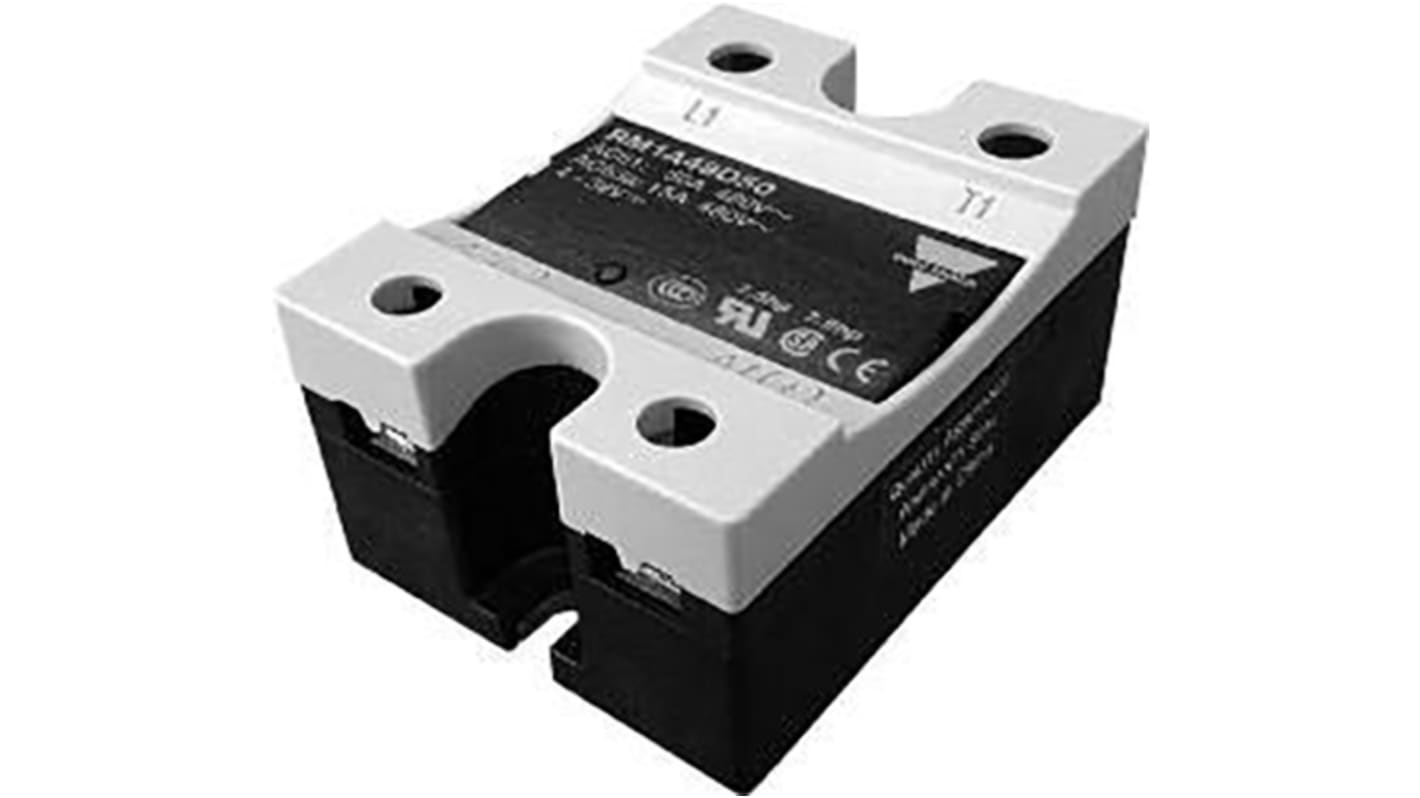

Carlo Gavazzi RAM 1A Series Solid State Relay, 50 A Load, Panel Mount, 660 V ac Load, 48 V dc, 280 V ac Control
- RS Stock No.:
- 857-2998
- Distrelec Article No.:
- 304-27-315
- Mfr. Part No.:
- RM1A60A50
- Brand:
- Carlo Gavazzi
Subtotal (1 unit)*
£99.99
(exc. VAT)
£119.99
(inc. VAT)
FREE delivery for orders over £50.00
- 16 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 4 | £99.99 |
| 5 - 9 | £96.91 |
| 10 + | £92.79 |
*price indicative
- RS Stock No.:
- 857-2998
- Distrelec Article No.:
- 304-27-315
- Mfr. Part No.:
- RM1A60A50
- Brand:
- Carlo Gavazzi
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Maximum Load Current | 50 A | |
| Mounting Type | Panel Mount | |
| Maximum Load Voltage | 660 V ac | |
| Minimum Load Voltage | 42 V ac | |
| Maximum Control Voltage | 48 V dc, 280 V ac | |
| Minimum Control Voltage | 20 V ac, 22 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 20 → 280 V ac, 22 → 48 V dc | |
| Minimum Load Current | 250 mA | |
| Number of Poles | 1 | |
| Terminal Type | Screw | |
| Output Device | Varistor | |
| Relay Type | Single Phase | |
| Maximum Turn On Time | 1 s | |
| Series | RAM 1A | |
| Load Voltage Range | 42 → 660V ac | |
| Dimensions | 44.8 x 58.2 x 28.8mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +70°C | |
| Depth | 58.2mm | |
| Height | 28.8mm | |
| Length | 44.8mm | |
| Operating Temperature Range | -20 → +70°C | |
| Special Features | Self Lifting Terminals, Direct Copper Bonding Technology | |
| Off State Leakage Current | 3 mA | |
Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Maximum Load Current 50 A | ||
Mounting Type Panel Mount | ||
Maximum Load Voltage 660 V ac | ||
Minimum Load Voltage 42 V ac | ||
Maximum Control Voltage 48 V dc, 280 V ac | ||
Minimum Control Voltage 20 V ac, 22 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 20 → 280 V ac, 22 → 48 V dc | ||
Minimum Load Current 250 mA | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Output Device Varistor | ||
Relay Type Single Phase | ||
Maximum Turn On Time 1 s | ||
Series RAM 1A | ||
Load Voltage Range 42 → 660V ac | ||
Dimensions 44.8 x 58.2 x 28.8mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +70°C | ||
Depth 58.2mm | ||
Height 28.8mm | ||
Length 44.8mm | ||
Operating Temperature Range -20 → +70°C | ||
Special Features Self Lifting Terminals, Direct Copper Bonding Technology | ||
Off State Leakage Current 3 mA | ||
- COO (Country of Origin):
- CN
Carlo Gavazzi Analog Switching Solid State Relay
Up to 600 AACrms operational voltage
Phase-angle control analog switching designed for use within resistive & slightly inductive loads
