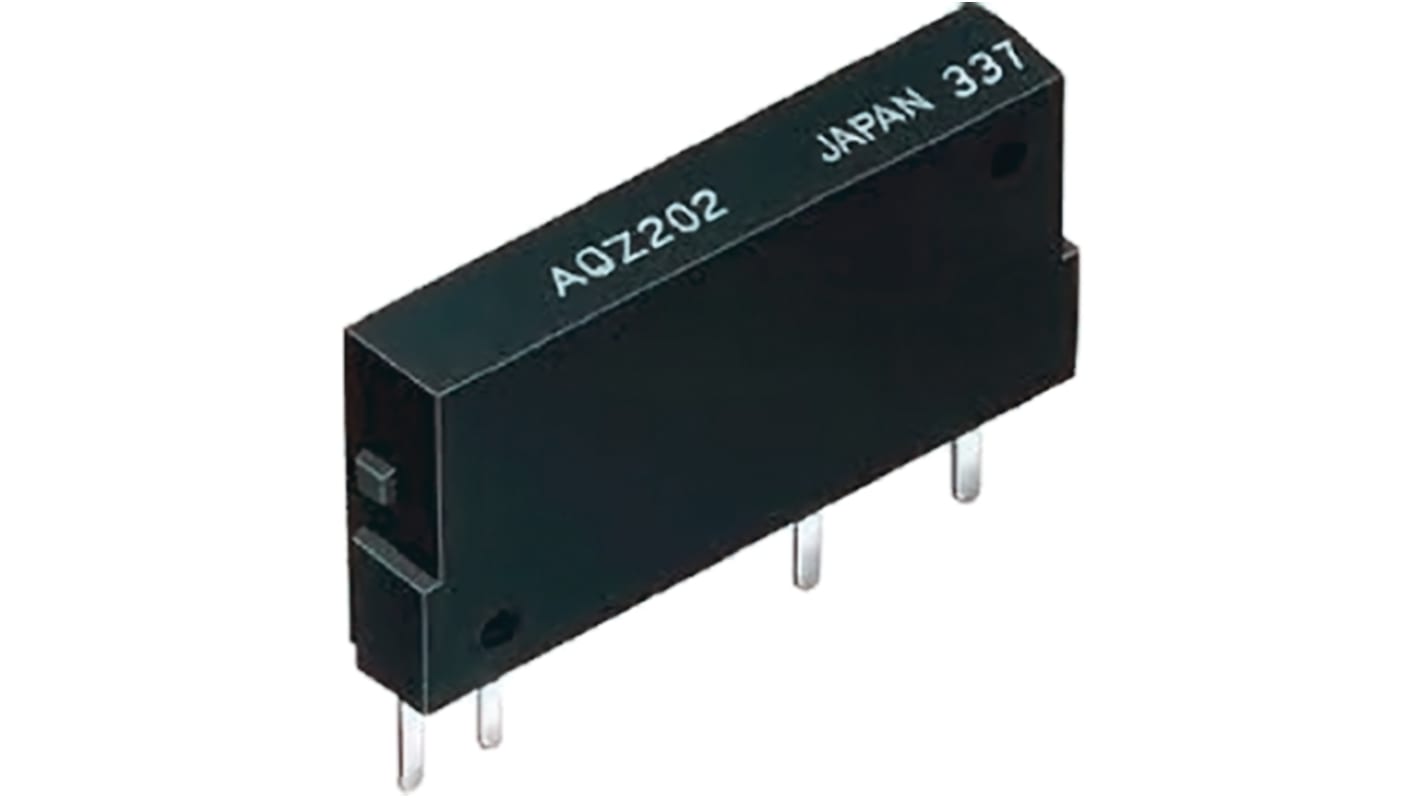

Panasonic Solid State Relay, 2.7 A Load, PCB Mount, 60 V Load, 30 V Control
- RS Stock No.:
- 811-3450
- Mfr. Part No.:
- AQZ202D
- Brand:
- Panasonic
Available to back order for despatch 03/09/2024
Added
Price Each (In a Pack of 25)
£8.634
(exc. VAT)
£10.361
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 + | £8.634 | £215.85 |
| *price indicative | ||
- RS Stock No.:
- 811-3450
- Mfr. Part No.:
- AQZ202D
- Brand:
- Panasonic
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
AQZ202 and AQZ204 solid state photoMOS relays
Optoelectronic photoMOS relay with MOSFET output stage with SIL casing.
Applications: telephone and measuring equipment, high-speed communication systems and industrial robots.
Applications: telephone and measuring equipment, high-speed communication systems and industrial robots.
Approvals
UL and CSA
The Panasonic power relay with contact arrangement of 1 form A, it is rated for load current of 2 A, and load voltage of 60 V. This device comes in a 4-pin SIL PC board mount package design, and it comes in a tube packaging.
Both AC/DC dual types and DC-only types available
High capacity and high sensitivity and low on resistance
High capacity and high sensitivity and low on resistance
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 2.7 A |
| Mounting Type | PCB Mount |
| Maximum Load Voltage | 60 V |
| Minimum Load Voltage | 0 V |
| Maximum Control Voltage | 30 V |
| Switching Type | AC/DC |
| Control Voltage Range | Maximum of 30 V |
| Number of Poles | 1 |
| Terminal Type | Through Hole |
| Contact Configuration | SPST |
| Output Device | PhotoMOS |
| Package Style | SIL |
| Load Voltage Range | Maximum of 60V |
| Maximum Turn On Time | 10ms |
| Dimensions | 21 x 3.5 x 12.5mm |
| Operating Temperature Range | -40 → +85°C |
| Length | 21mm |
| Height | 12.5mm |
| Off State Leakage Current | 10 μA |
| Maximum Operating Temperature | +85°C |
| Depth | 3.5mm |
| Standards Met | RoHS Compliant |
| Minimum Operating Temperature | -40°C |
