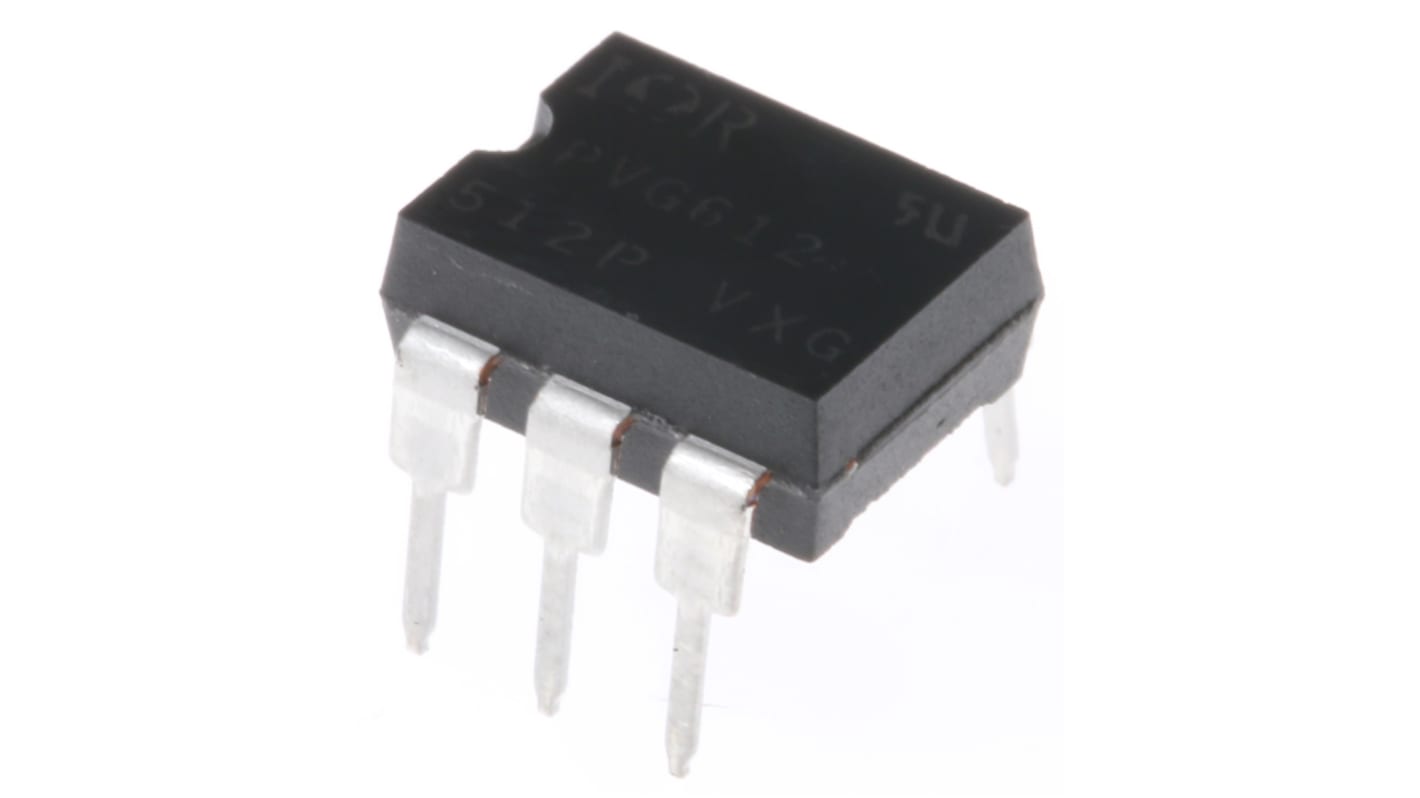

Infineon PVG612 Series Solid State Relay, 2 A Load, PCB Mount, 60 V Load
- RS Stock No.:
- 784-0338
- Distrelec Article No.:
- 302-84-133
- Mfr. Part No.:
- PVG612PBF
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£6.11
(exc. VAT)
£7.33
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
- Plus 1,445 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £6.11 |
| 10 - 24 | £5.50 |
| 25 + | £5.24 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Tube of 50)
£5.14
(exc. VAT)
£6.17
(inc. VAT)
- RS Stock No.:
- 784-0338
- Distrelec Article No.:
- 302-84-133
- Mfr. Part No.:
- PVG612PBF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Load Current | 2 A | |
| Mounting Type | PCB Mount | |
| Maximum Load Voltage | 60 V | |
| Minimum Load Voltage | 0 V | |
| Switching Type | AC/DC | |
| Number of Poles | 1 | |
| Contact Configuration | SPST | |
| Terminal Type | PCB Pin | |
| Output Device | MOSFET | |
| Relay Type | Photovoltaic | |
| Package Style | PDIP | |
| Maximum Turn On Time | 2ms | |
| Series | PVG612 | |
| Load Voltage Range | 0 → 60V | |
| Dimensions | 8.63 x 6.47 x 3.42mm | |
| Special Features | Bounce-Free Operation, Solid-State Reliability | |
| Depth | 6.5mm | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Capacitance | 130pF | |
| Length | 8.6mm | |
| Height | 3.4mm | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Load Current 2 A | ||
Mounting Type PCB Mount | ||
Maximum Load Voltage 60 V | ||
Minimum Load Voltage 0 V | ||
Switching Type AC/DC | ||
Number of Poles 1 | ||
Contact Configuration SPST | ||
Terminal Type PCB Pin | ||
Output Device MOSFET | ||
Relay Type Photovoltaic | ||
Package Style PDIP | ||
Maximum Turn On Time 2ms | ||
Series PVG612 | ||
Load Voltage Range 0 → 60V | ||
Dimensions 8.63 x 6.47 x 3.42mm | ||
Special Features Bounce-Free Operation, Solid-State Reliability | ||
Depth 6.5mm | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +85°C | ||
Maximum Operating Temperature +85°C | ||
Capacitance 130pF | ||
Length 8.6mm | ||
Height 3.4mm | ||
Transistor Output - FET & MOSFET, Infineon
The PDV13 series from Infineon is a single pole, normally open, solid-state replacement for electromechanical relays used for general purpose switching of analogue signals. It utilises Infineon HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator of novel construction.
Bounce-Free Operation
1010 Off-State Resistance
1,000 V/μsec dv/dt
5 mA Input Sensitivity
4,000 VRMS I/O Isolation
Solid-State Reliability
1010 Off-State Resistance
1,000 V/μsec dv/dt
5 mA Input Sensitivity
4,000 VRMS I/O Isolation
Solid-State Reliability
Optocouplers, International Rectifier
