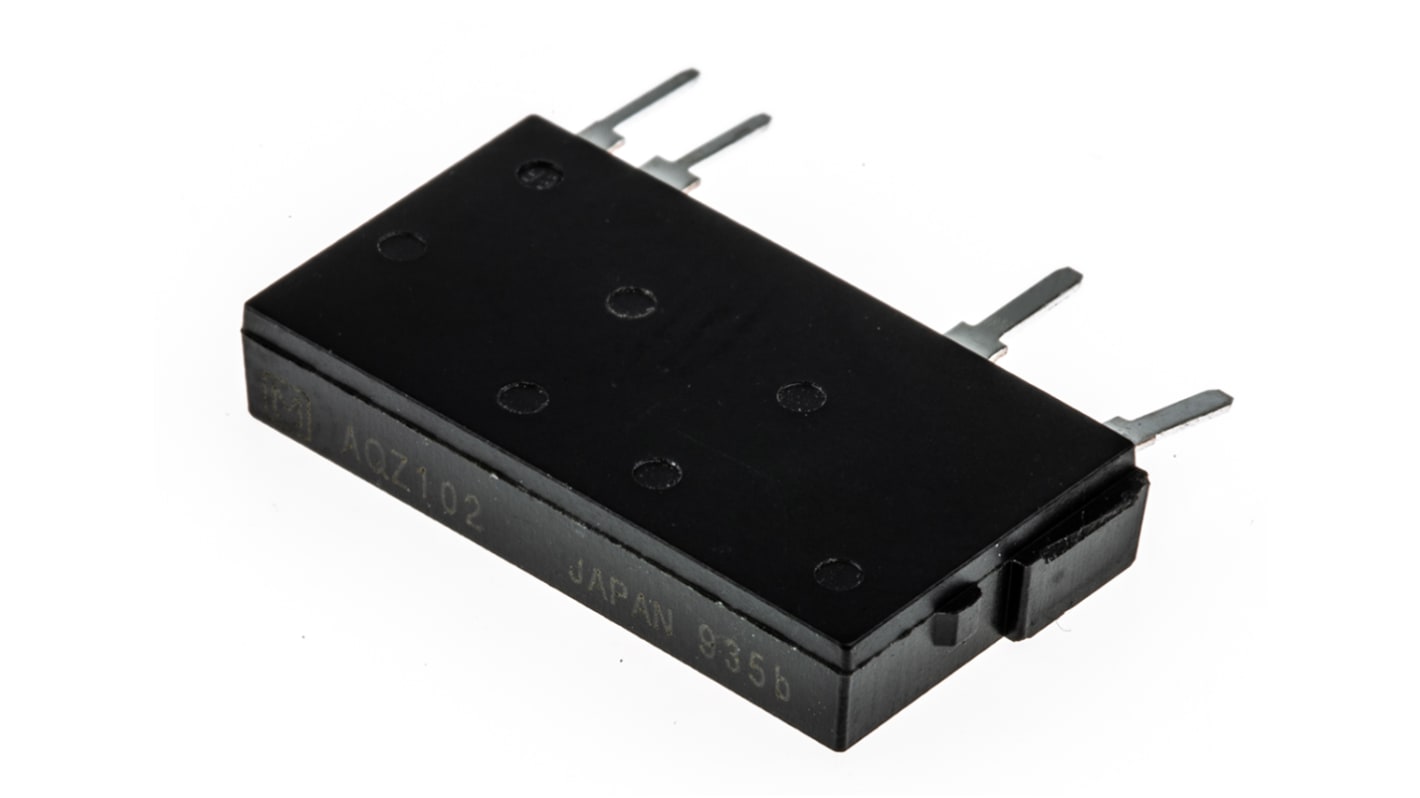

Panasonic PhotoMOS AQZ Series Solid State Relay, 4 A Load, PCB Mount, 60 V Load, 5V dc Control

View all Solid State Relays
Bulk discount available

Subtotal (1 unit)*

£6.48

(exc. VAT)

£7.78

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 46 unit(s) ready to ship from another location
  • Plus 2,854 unit(s) shipping from 10 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£6.48
10 - 24£6.16
25 - 49£5.84
50 - 99£5.51
100 +£5.18

*price indicative

RS Stock No.:
699-6632
Distrelec Article No.:
137-40-300
Mfr. Part No.:
AQZ102
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Product Type

Solid State Relay

Maximum Load Current

4A

Mount Type

PCB

Maximum Load Voltage

60V

Minimum Load Voltage

0V

Maximum Control Voltage

5V dc

Minimum Control Voltage

1.5V dc

Series

PhotoMOS AQZ

Terminal Type

PCB Terminal

Contact Configuration

SPST

Minimum Operating Temperature

-40°C

On State Resistance

90mΩ

Maximum Operating Temperature

85°C

Package Type

SIL-4

Standards/Approvals

VDE, cUL, UL, RoHS

Width

3.5 mm

Height

12.5mm

Length

21mm

Output Type

MOSFET

Off State Leakage Current

10μA

COO (Country of Origin):
JP

AQZ Series


These photomos PCB mount relays have a slim SIL4-pin package which enables high density mounting (W 3.5 x D 21.0 x H 12.5 mm). Typical applications include railroad systems, traffic lights, measuring instruments and industrial machines.

High capacity

Extremely low on-resistance

Control low-level signal

Approvals

UL, C-UL, VDE
