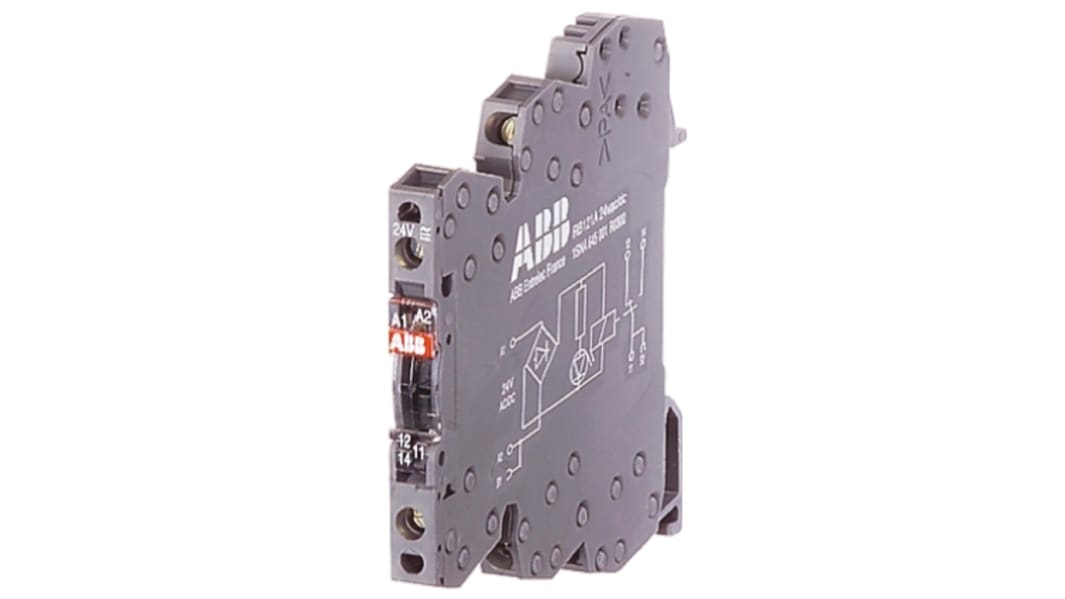

ABB Solid State Relay, DIN Rail Mount, 230 V ac/dc Control
- RS Stock No.:
- 773-0017
- Mfr. Part No.:
- 1SNA645022R2700 OBIC0100-115-230V
- Brand:
- ABB
Bulk discount available
Subtotal (1 unit)*
£24.94
(exc. VAT)
£29.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 47 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £24.94 |
| 5 - 9 | £23.70 |
| 10 - 24 | £22.44 |
| 25 - 49 | £21.20 |
| 50 + | £19.95 |
*price indicative
- RS Stock No.:
- 773-0017
- Mfr. Part No.:
- 1SNA645022R2700 OBIC0100-115-230V
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Mounting Type | DIN Rail | |
| Minimum Control Voltage | 115 V ac/dc | |
| Maximum Control Voltage | 230 V ac/dc | |
| Control Voltage Range | 115 → 230 V ac/dc | |
| Terminal Type | Screw | |
| Relay Type | Solid State Relay | |
| Dimensions | 70 x 6.5 x 6mm | |
| Maximum Operating Temperature | +70°C | |
| Standards Met | CE, CSA | |
| Minimum Operating Temperature | -20°C | |
| Depth | 67.5mm | |
| Length | 70mm | |
| Operating Temperature Range | -20 → +70°C | |
| Height | 6mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Mounting Type DIN Rail | ||
Minimum Control Voltage 115 V ac/dc | ||
Maximum Control Voltage 230 V ac/dc | ||
Control Voltage Range 115 → 230 V ac/dc | ||
Terminal Type Screw | ||
Relay Type Solid State Relay | ||
Dimensions 70 x 6.5 x 6mm | ||
Maximum Operating Temperature +70°C | ||
Standards Met CE, CSA | ||
Minimum Operating Temperature -20°C | ||
Depth 67.5mm | ||
Length 70mm | ||
Operating Temperature Range -20 → +70°C | ||
Height 6mm | ||
ABB Optocoupler, Integrated LED, 250V Rated Insulation Voltage - 1SNA645022R2700 OBIC0100-115-230V
Need a switching solution to take charge of your low-voltage network? Go for this optocoupler from ABB. Its sensors receive signals that it uses to turn a circuit on or off, making your life easy by eliminating the need for manual operation. Thanks to its transistor output, the unit delivers speedy switching, so it's a handy choice for applications that need precise control. As it withstands sudden voltage spikes up to 2.5kV, you can be sure it's safe for use in unstable settings. You don't need complex tools to link wires to this device as a simple screwdriver gets the job done.
Features & Benefits
• Consumes just 16mA of current during operation, so it's an energy-efficient workmate
• Integrated LED indicator for easy monitoring and diagnosis
• Safe to use in demanding conditions thanks to an operating temperature range between -40°C and +80°C
• IP20 rating means it's protected from objects larger than 12mm in size, for safe handling
• Integrated LED indicator for easy monitoring and diagnosis
• Safe to use in demanding conditions thanks to an operating temperature range between -40°C and +80°C
• IP20 rating means it's protected from objects larger than 12mm in size, for safe handling
Applications
• Marine engineering
• Electrical distribution stations
• Automotive plants
• Electrical distribution stations
• Automotive plants
Is this optocoupler flame-resistant?
Yes, it stops burning in 10 seconds or less in a fire, so it can help limit the spread of flames.
