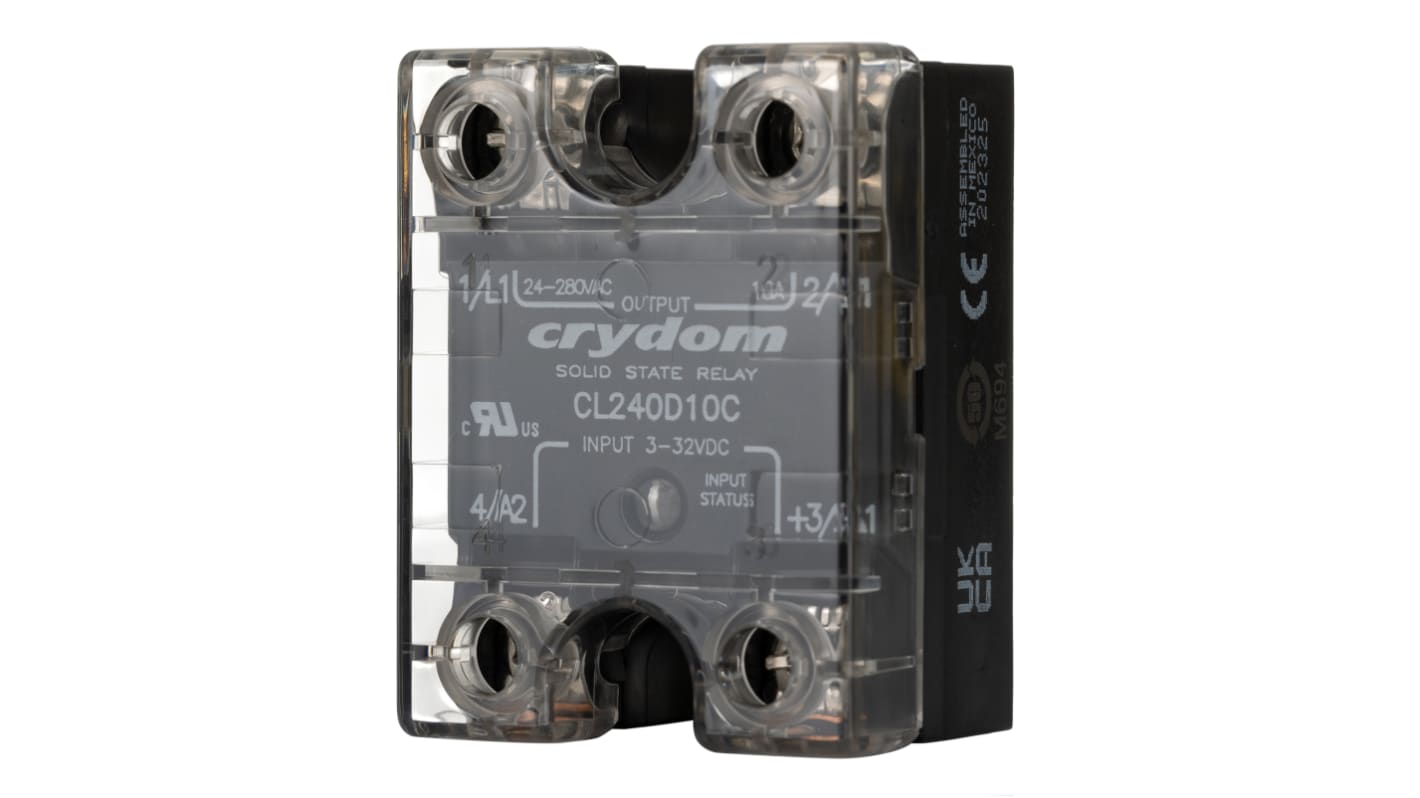

Sensata Crydom CL Series Solid State Relay, 10 A rms Load, Panel Mount, 280 V rms Load, 32 V dc Control

View all Solid State Relays
Bulk discount available

Subtotal (1 unit)*

£38.59

(exc. VAT)

£46.31

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 56 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£38.59
5 - 9£36.66
10 - 24£34.72
25 - 49£32.80
50 +£30.87

*price indicative

RS Stock No.:
720-4048
Distrelec Article No.:
300-49-160
Mfr. Part No.:
CL240D10C
Brand:
Sensata / Crydom
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Crydom

Maximum Load Current

10 A rms

Mounting Type

Panel Mount

Maximum Load Voltage

280 V rms

Minimum Load Voltage

24 V rms

Maximum Control Voltage

32 V dc

Minimum Control Voltage

3 V dc

Switching Type

Zero Crossing

Control Voltage Range

3 → 32 V dc

Minimum Load Current

150 mA rms

Terminal Type

Screw

Output Device

Triac

Relay Type

Solid State Relay

Load Voltage Range

24 → 280Vrms

Series

CL

Maximum Turn On Time

1/2 cycle

Dimensions

44.5 x 30.9 x 58.8mm

Off State Leakage Current

7mA rms

Height

58.8mm

Standards Met

CE, RoHS Compliant

Special Features

LED Status Indicator, Redesigned Housing With Anti Rotation Barriers

Length

44.5mm

Maximum Operating Temperature

+80°C

Capacitance

8pF

Minimum Operating Temperature

-40°C

Operating Temperature Range

-40 → +80°C

Depth

30.9mm

COO (Country of Origin):
MX

Sensata | Crydom Solid-State Relay, 10A Rated Load Current, 58.8mm Height - CL Series - CL240D10C


Looking for a long-lasting switching component? This Sensata | Crydom solid-state relay is in it for the long haul. It opens and closes a circuit without moving parts, minimising wear for long-term use. As it switches on in just half a cycle, it speeds through switching to get your equipment up and running in a flash. The device's cover has an IP20 rating, which means it's finger-safe and protected against objects larger than 12mm in size for safe handling. Look for relays like this one in packaging lines and industrial robotics applications.

Features & Benefits


• Labelled conductor terminals for ease of identification during wiring
• Mounts to a panel with screws for simple and secure installation
• Compact dimensions of 58.8 (H) x 44.5 (W) x 30.9mm (D) for installation on crowded panels
• Built-in LED indicator shows input status for ease of monitoring

Does this SSR hold up under heavy vibration?


Yes, this product comes with anti-rotation barriers on its housing, so it's sure to stay strong against vibrations to prevent accidental disconnection and downtime.


Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
