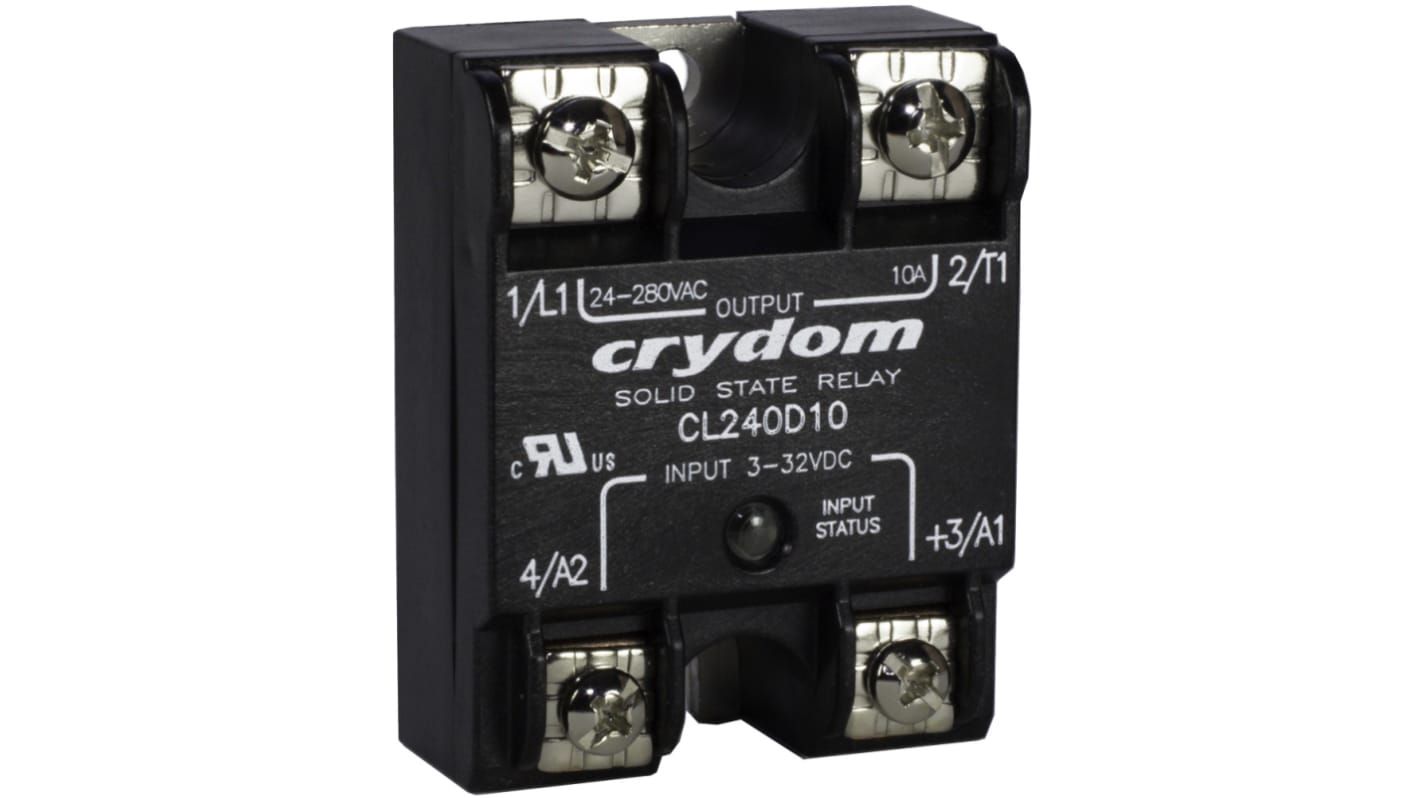

Sensata Crydom CL Series Series Solid State Relay, 10 A rms Load, Panel Mount, 280 V rms Load, 32 V dc Control

View all Solid State Relays
Bulk discount available

Subtotal (1 unit)*

£36.14

(exc. VAT)

£43.37

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 106 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
  • Plus 999,999,893 unit(s) shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£36.14
5 - 9£34.33
10 - 24£32.53
25 - 49£30.71
50 +£28.91

*price indicative

RS Stock No.:
720-4044
Distrelec Article No.:
300-49-159
Mfr. Part No.:
CL240D10
Brand:
Sensata / Crydom
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Crydom

Maximum Load Current

10 A rms

Mounting Type

Panel Mount

Maximum Load Voltage

280 V rms

Minimum Load Voltage

24 V rms

Minimum Control Voltage

3 V dc

Maximum Control Voltage

32 V dc

Switching Type

Zero Cross

Control Voltage Range

3 → 32 V dc

Minimum Load Current

150mA rms

Number of Poles

1

Terminal Type

Screw

Output Device

Triac

Relay Type

Solid State Relay

Maximum Turn On Time

1/2 cycle

Series

CL Series

Load Voltage Range

24 → 280Vrms

Dimensions

44.5 x 20.1 x 57.2mm

Length

44.5mm

Operating Temperature Range

-30 → +80°C

Special Features

LED Status Indicator, Redesigned Housing With Anti Rotation Barriers

Standards Met

CE, RoHS Compliant

Capacitance

8pF

Depth

20.1mm

Off State Leakage Current

7mA rms

Minimum Operating Temperature

-30°C

Maximum Operating Temperature

+80°C

Height

57.2mm

COO (Country of Origin):
MX

Sensata | Crydom Solid-State Relay, 8pF I/O Capacitance, 1/2 Cycle Turn-On Time - CL Series - CL240D10


For speedy switching capabilities, hand your power management over to this solid-state relay from Sensata | Crydom. It's an efficient choice that quickly gets your operations up and running, thanks to its turn-on time of half a cycle.Solid-state relays are made without moving parts, which means there's less maintenance and minimal wear. This device is made with an aluminium baseplate, so it's armoured against abrasion and corrosion. You can use an SSR like this one in industrial automation and automotive repair applications.

Features & Benefits


• Flame-retardant housing for safety in the event of a fire
• MTBF of 11,641,553 hours at +40°C for long-lasting performance
• Light weight of 81.53g to place minimal strain on your setup
• LED status indicator allows monitoring at a glance
• Broad operating temperature range of -40°C to +80°C for use in harsh conditions

What does zero-cross switching mean?


Zero-cross switching means that the component boots up when the load voltage is near 0V. This makes start-up operations more efficient with minimal noise.

What are the dimensions of this unit?


This product has compact dimensions of 44.5 (L) x 20.1 (D) x 57.2mm (H), so it's a space-efficient choice.


Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
