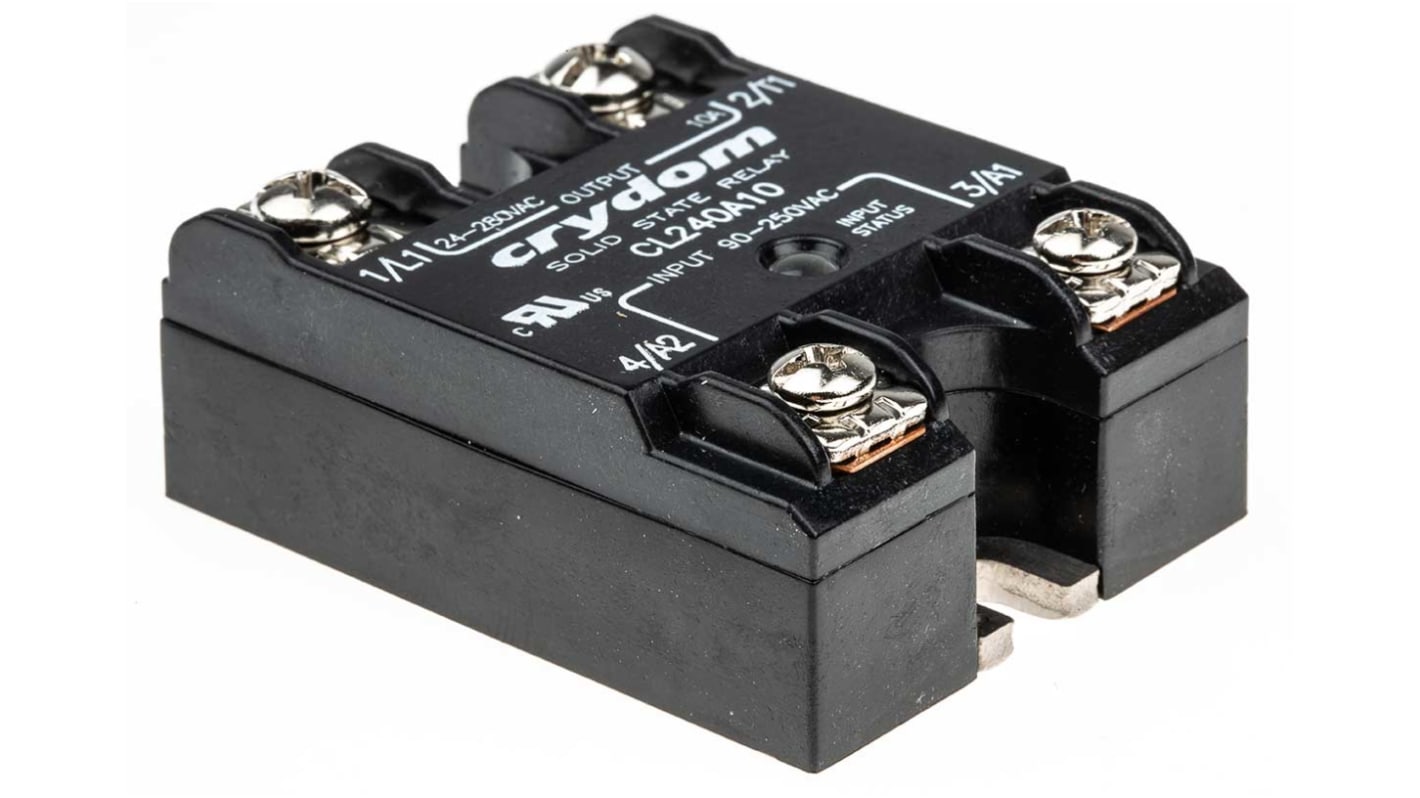

Sensata / Crydom CL Series Solid State Relay, 10 A rms Load, Panel Mount, 280 V rms Load, 250 V rms Control
- RS Stock No.:
- 720-4010
- Mfr. Part No.:
- CL240A10
- Brand:
- Sensata / Crydom
110 In stock - FREE next working day delivery available
Added
Price Each
£42.85
(exc. VAT)
£51.42
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £42.85 |
| 5 - 9 | £40.71 |
| 10 - 24 | £38.57 |
| 25 - 49 | £36.42 |
| 50 + | £34.28 |
- RS Stock No.:
- 720-4010
- Mfr. Part No.:
- CL240A10
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
CL Series
Ratings of 5A and10A @ 24-280 VAC
AC or DC control
Zero-cross Switching
AC or DC control
Zero-cross Switching
Approvals
UL, CE
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 10 A rms |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 280 V rms |
| Minimum Load Voltage | 24 V rms |
| Minimum Control Voltage | 90 V rms |
| Maximum Control Voltage | 250 V rms |
| Switching Type | Zero Cross |
| Control Voltage Range | 90 → 250 V rms |
| Minimum Load Current | 150mA rms |
| Terminal Type | Screw |
| Relay Type | Solid State Relay |
| Maximum Turn On Time | 50ms |
| Series | CL |
| Load Voltage Range | 24 → 280Vrms |
| Dimensions | 44.5 x 20.1 x 57.2mm |
| Capacitance | 8pF |
| Minimum Operating Temperature | -30°C |
| Standards Met | CE, RoHS Compliant |
| Depth | 20.1mm |
| Maximum Operating Temperature | +80°C |
| Special Features | LED Status Indicator, Redesigned Housing With Anti Rotation Barriers |
| Operating Temperature Range | -30 → +80°C |
| Length | 44.5mm |
| Off State Leakage Current | 7mA rms |
| Height | 57.2mm |
