- RS Stock No.:
- 712-5991
- Mfr. Part No.:
- UPD2415D
- Brand:
- Sensata / Crydom
Available to back order for despatch 19/11/2024
Added
Price Each
£70.12
(exc. VAT)
£84.14
(inc. VAT)
Units | Per unit |
1 - 9 | £70.12 |
10 + | £67.52 |
- RS Stock No.:
- 712-5991
- Mfr. Part No.:
- UPD2415D
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details

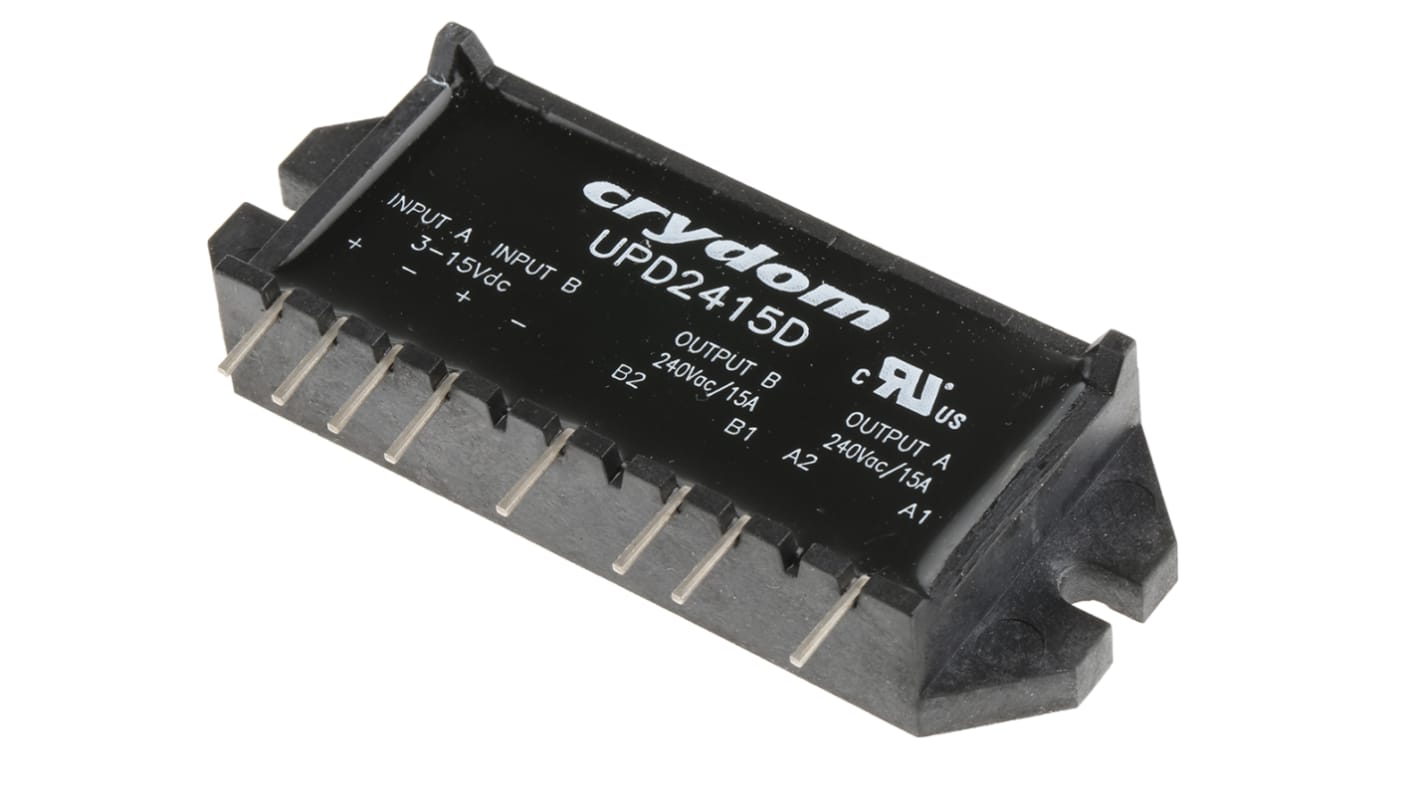

UPD24D Series - SIL PCB Mount SSR, Dual Channel
High current SIL PCB mount SSR packages for switching AC load currents up to 25 amp per channel, at up to 280Vrms. Applications include OEM equipment, heating control in ovens, lighting controllers and AC motor drives. Ideal solution for high-power switching applications with limited panel space
SIL SSR PCB mount package
Dual channel, 2 relays in one package with independent control input
SCR ouptut for heavy industrial loads
High Surge Rating
Zero cross rating (-10 part numbers) and random-fire options
Operating temperature range: - 40 → + 80°C
Dimensions: H28 x W78 x D12.7mm
Dual channel, 2 relays in one package with independent control input
SCR ouptut for heavy industrial loads
High Surge Rating
Zero cross rating (-10 part numbers) and random-fire options
Operating temperature range: - 40 → + 80°C
Dimensions: H28 x W78 x D12.7mm
Specifications
Attribute | Value |
---|---|
Maximum Load Current | 15 A rms |
Mounting Type | PCB Mount |
Maximum Load Voltage | 280 V rms |
Minimum Load Voltage | 24 V rms |
Minimum Control Voltage | 3 V dc |
Maximum Control Voltage | 15 V dc |
Switching Type | Zero Cross |
Control Voltage Range | 3 → 15 V dc |
Minimum Load Current | 150mA rms |
Terminal Type | Through Hole |
Output Device | SCR |
Package Style | SIP |
Maximum Turn On Time | 1/2Cycle |
Load Voltage Range | 24 → 280Vrms |
Dimensions | 3.086 x 0.5 x 1.125in |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +80°C |
Length | 78.4mm |
Depth | 0.5in |
Maximum Operating Temperature | +80°C |
Off State Leakage Current | 0.1mA rms |
Height | 29mm |
- RS Stock No.:
- 712-5991
- Mfr. Part No.:
- UPD2415D
- Brand:
- Sensata / Crydom
