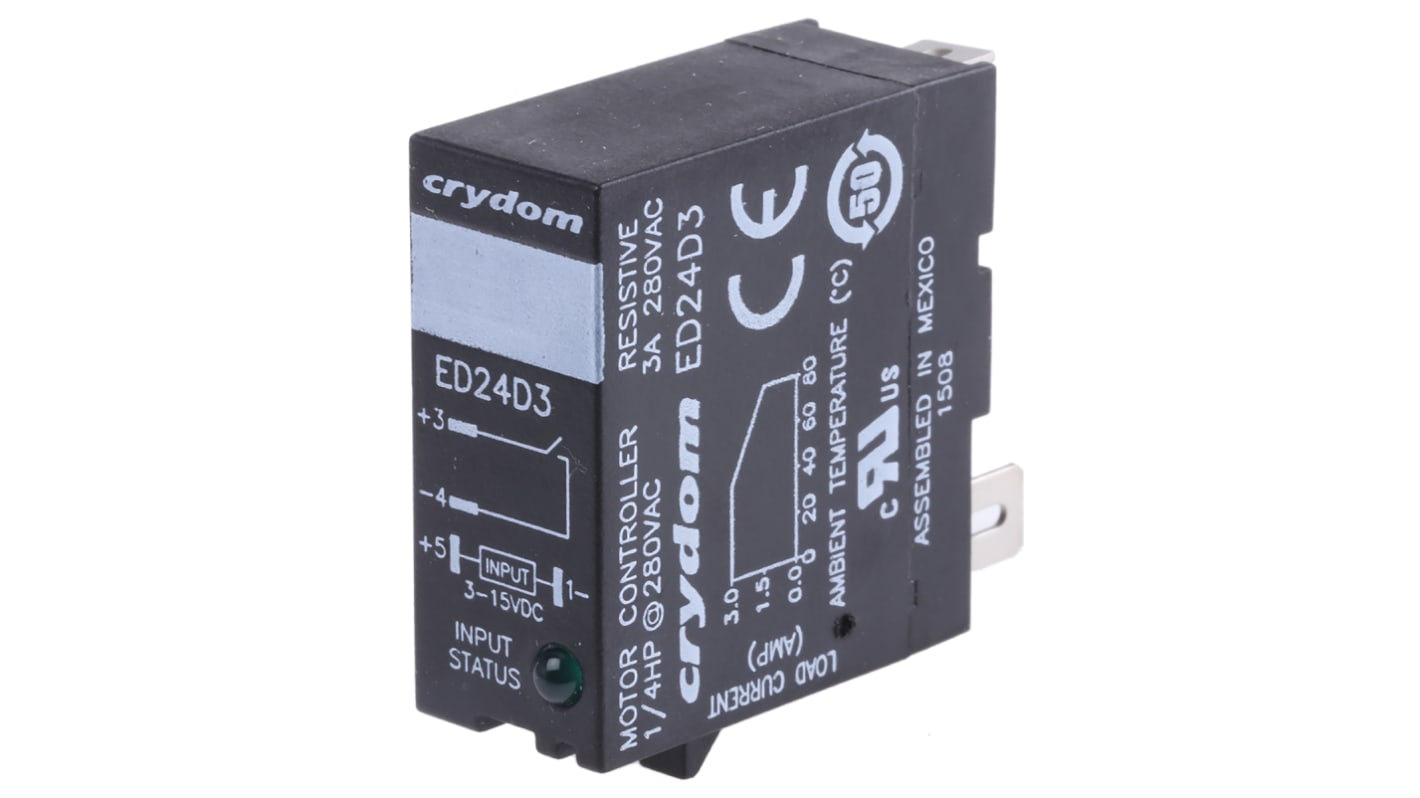

Sensata Crydom Solid State Relay, 3 A Load, DIN Rail Mount, 280 V rms Load, 15 V dc Control
- RS Stock No.:
- 740-1346
- Mfr. Part No.:
- ED24D3
- Brand:
- Sensata / Crydom
Subtotal (1 unit)*
£14.68
(exc. VAT)
£17.62
(inc. VAT)
FREE delivery for orders over £50.00
- 179 unit(s) ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £14.68 |
| 5 - 9 | £13.95 |
| 10 - 24 | £13.21 |
| 25 - 49 | £12.47 |
| 50 + | £11.74 |
*price indicative
- RS Stock No.:
- 740-1346
- Mfr. Part No.:
- ED24D3
- Brand:
- Sensata / Crydom
Select all | Attribute | Value |
|---|---|---|
| Brand | Sensata / Crydom | |
| Maximum Load Current | 3 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 280 V rms | |
| Minimum Load Voltage | 24 V rms | |
| Minimum Control Voltage | 3 V dc | |
| Maximum Control Voltage | 15 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 3 → 15 V dc | |
| Minimum Load Current | 150 mA | |
| Contact Configuration | SPST | |
| Terminal Type | Through Hole | |
| Package Style | EMR | |
| Load Voltage Range | 24 → 280Vrms | |
| Maximum Turn On Time | 8.33ms | |
| Dimensions | 29 x 12.7 x 37.4mm | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -30°C | |
| Operating Temperature Range | -30 → +80°C | |
| Depth | 12.7mm | |
| Off State Leakage Current | 0.1mA rms | |
| Length | 29mm | |
| Height | 37.4mm | |
Select all | ||
|---|---|---|
Brand Sensata / Crydom | ||
Maximum Load Current 3 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 280 V rms | ||
Minimum Load Voltage 24 V rms | ||
Minimum Control Voltage 3 V dc | ||
Maximum Control Voltage 15 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 3 → 15 V dc | ||
Minimum Load Current 150 mA | ||
Contact Configuration SPST | ||
Terminal Type Through Hole | ||
Package Style EMR | ||
Load Voltage Range 24 → 280Vrms | ||
Maximum Turn On Time 8.33ms | ||
Dimensions 29 x 12.7 x 37.4mm | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -30°C | ||
Operating Temperature Range -30 → +80°C | ||
Depth 12.7mm | ||
Off State Leakage Current 0.1mA rms | ||
Length 29mm | ||
Height 37.4mm | ||
- COO (Country of Origin):
- MX
Sensata | Crydom Solid-State Relay, SPST Contact Configuration, 3 to 15V DC Control Voltage Range - ED Series - ED24D3
Features & Benefits
• Through-hole terminals plug into standard PCB and DIN rail sockets for easy integration into existing systems
• Top-mounted LED indicator signals input connection status for ease of monitoring
• Low off-state leakage current of just 0.1mA to help minimise energy usage
• Wide operating temperature range of -30°C to +80°C for use in harsh environments
How quickly does this unit switch on and off?
Approvals
Note
