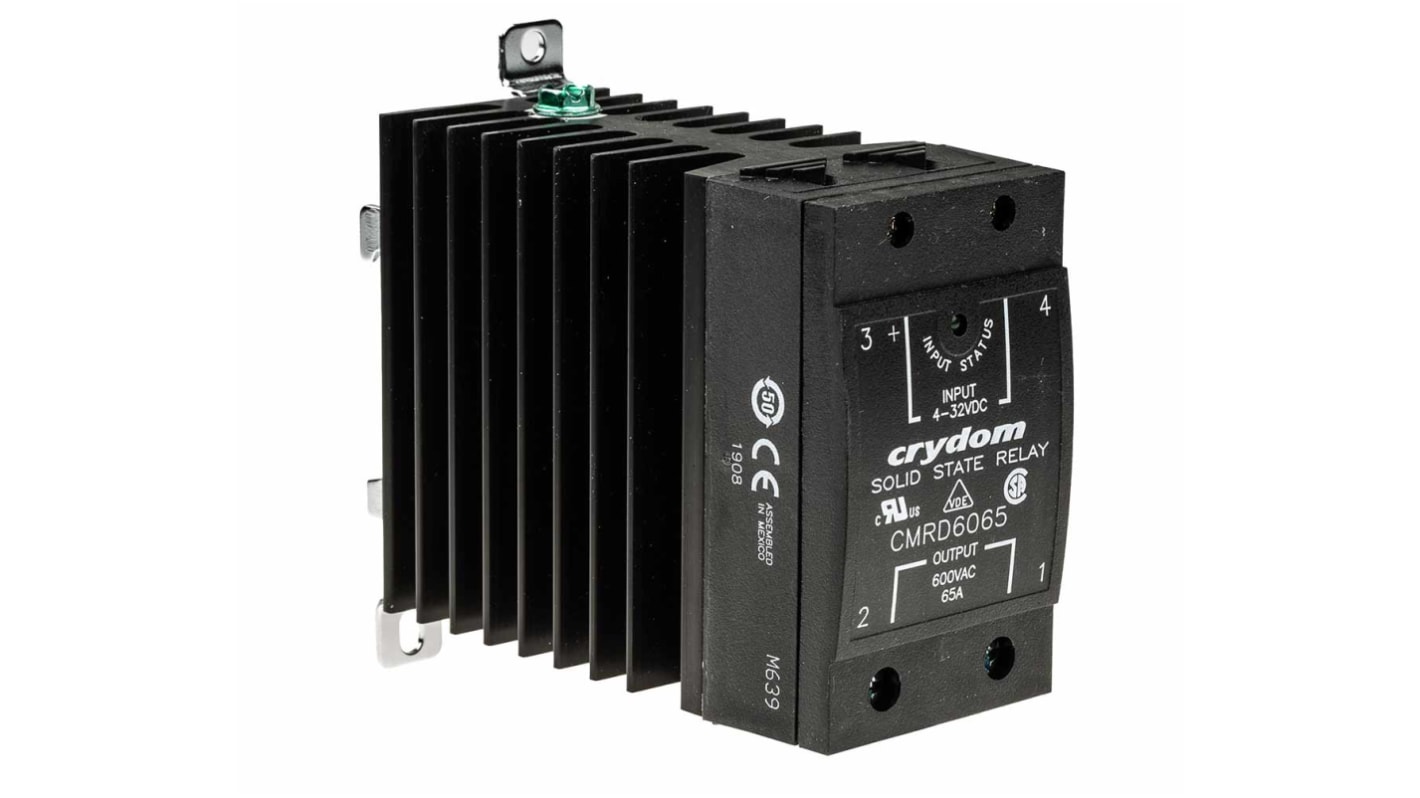

Sensata Crydom Solid State Relay, 65 A Load, DIN Rail Mount, 660 V Load, 32 V Control

View all Solid State Relays

Subtotal (1 unit)*

£123.54

(exc. VAT)

£148.25

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 267 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£123.54

*price indicative

RS Stock No.:
291-3100
Mfr. Part No.:
CMRD6065
Brand:
Sensata / Crydom
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Crydom

Maximum Load Current

65 A

Mounting Type

DIN Rail

Maximum Load Voltage

660 V

Minimum Load Voltage

48 V ac

Maximum Control Voltage

32 V

Minimum Control Voltage

4 V dc

Switching Type

Zero Cross

Control Voltage Range

3 → 32 V dc

Minimum Load Current

0.25 A

Terminal Type

Screw

Contact Configuration

SPST

Output Device

SCR

Load Voltage Range

48 → 660V ac

Dimensions

109 x 44.5 x 76.2mm

Height

76.2mm

Off State Leakage Current

1mA rms

Length

109mm

Operating Temperature Range

-40 → +80°C

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+80°C

Depth

44.5mm

RoHS Status: Exempt

COO (Country of Origin):
MX

CMRD/A Series, 240/480/600Vac, ac O/P SSRs


Zero Voltage Switching
Random Turn-on (55A 240V a.c. only)
SCR Output
SPST-NO Contact arrangement
Integral heatsink and DIN rail clip
LED Status Indicator
Integral safety cover which provides a fingerproof solution
Dimensions: H109.2 x W44.5 x D76.2mm
Caged terminals (Rising Clamp)
8pF Input-Output Capacitance

Note

Integral heatsink and DIN rail clip included

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL; CSA; VDE

Approvals

UL E116950; CSA LR81689; VDE 126921 UG; CE; ISO


Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
