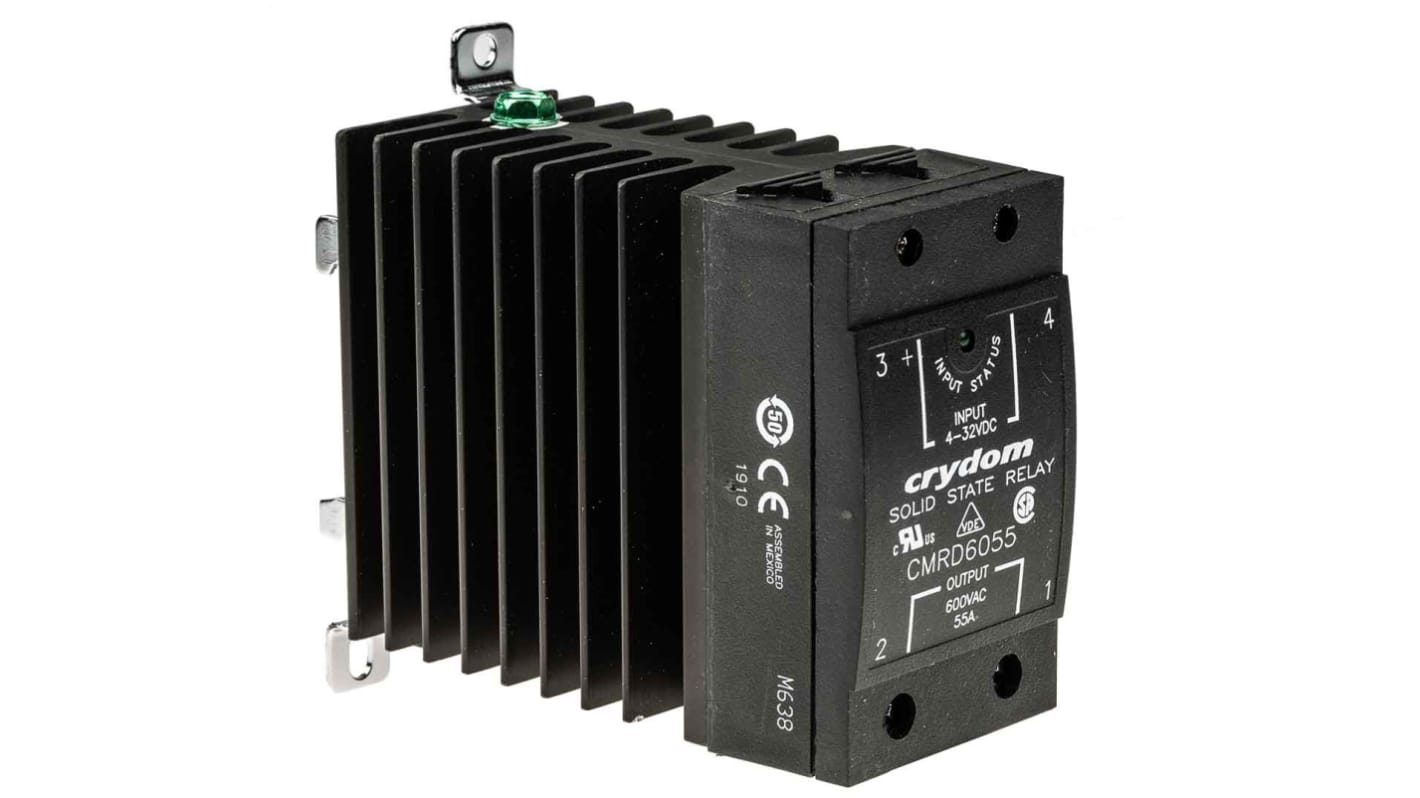

Sensata Crydom CMRD60 Series Solid State Relay, 55 A Load, DIN Rail Mount, 660 V Load, 32 V Control

RS Stock No.:: 291-3093
Mfr. Part No.:: CMRD6055
Brand:: Sensata / Crydom

Sensata Crydom CMRD60 Series Solid State Relay, 55 A Load, DIN Rail Mount, 660 V Load, 32 V Control

View all Solid State Relays

Bulk discount available

Subtotal (1 unit)*

£149.59

(exc. VAT)

£179.51

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

25 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£149.59
5 - 9	£142.11
10 - 24	£134.63
25 - 49	£127.14
50 +	£119.68

*price indicative

RS Stock No.:: 291-3093
Mfr. Part No.:: CMRD6055
Brand:: Sensata / Crydom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Load Current	55 A
	Mounting Type	DIN Rail
	Maximum Load Voltage	660 V
	Minimum Load Voltage	48 V ac
	Minimum Control Voltage	4 V dc
	Maximum Control Voltage	32 V
	Switching Type	Zero Cross
	Control Voltage Range	3 → 32 V dc
	Minimum Load Current	0.25 A
	Contact Configuration	SPST
	Terminal Type	Screw
	Output Device	SCR
	Relay Type	Solid State Relay
	Maximum Turn On Time	1/2 Cycle
	Load Voltage Range	48 → 660V ac
	Series	CMRD60
	Dimensions	109 x 44.5 x 76.2mm
	Maximum Operating Temperature	+80°C
	Operating Temperature Range	-40 → +80°C
	Standards Met	CE, UL, VDE
	Off State Leakage Current	1mA rms
	Depth	44.5mm
	Length	109mm
	Capacitance	8pF
	Height	76.2mm
	Minimum Operating Temperature	-40°C

	Select all
	Brand Sensata / Crydom
	Maximum Load Current 55 A
	Mounting Type DIN Rail
	Maximum Load Voltage 660 V
	Minimum Load Voltage 48 V ac
	Minimum Control Voltage 4 V dc
	Maximum Control Voltage 32 V
	Switching Type Zero Cross
	Control Voltage Range 3 → 32 V dc
	Minimum Load Current 0.25 A
	Contact Configuration SPST
	Terminal Type Screw
	Output Device SCR
	Relay Type Solid State Relay
	Maximum Turn On Time 1/2 Cycle
	Load Voltage Range 48 → 660V ac
	Series CMRD60
	Dimensions 109 x 44.5 x 76.2mm
	Maximum Operating Temperature +80°C
	Operating Temperature Range -40 → +80°C
	Standards Met CE, UL, VDE
	Off State Leakage Current 1mA rms
	Depth 44.5mm
	Length 109mm
	Capacitance 8pF
	Height 76.2mm
	Minimum Operating Temperature -40°C

RoHS Status: Exempt

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Relay, Screw Terminals, 55A Rated Load Current - CMR60 Series - CMRD6055

Use this solid-state relay from Sensata | Crydom to switch your circuits on and off in a flash. This device uses a semiconductor instead of moving parts, so it's a wear-resistant component that stands the test of time. It comes with a cover that protects your fingers from coming into contact with live wires for optimal safety. The product's thermally conductive epoxy encapsulation dissipates heat, so the relay doesn't break a sweat in demanding conditions. You'll find this unit used in HVAC and lighting control systems.

Features & Benefits

• Green LED indicator lets you monitor its status at a glance
• Low I/O capacitance of 8pF for high-integrity signal transmission
• Current rating of 55A means it's suitable for use in heavy-duty applications

How do I mount this device?

This relay mounts directly onto a DIN rail, so you can set it up in a snap.

What tools do I need to wire this unit?

This unit has screw terminals, so all you need is a simple screwdriver for a secure electrical connection.

Approvals

UL E116950; CSA LR81689; VDE 126921 UG; CE; ISO

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
