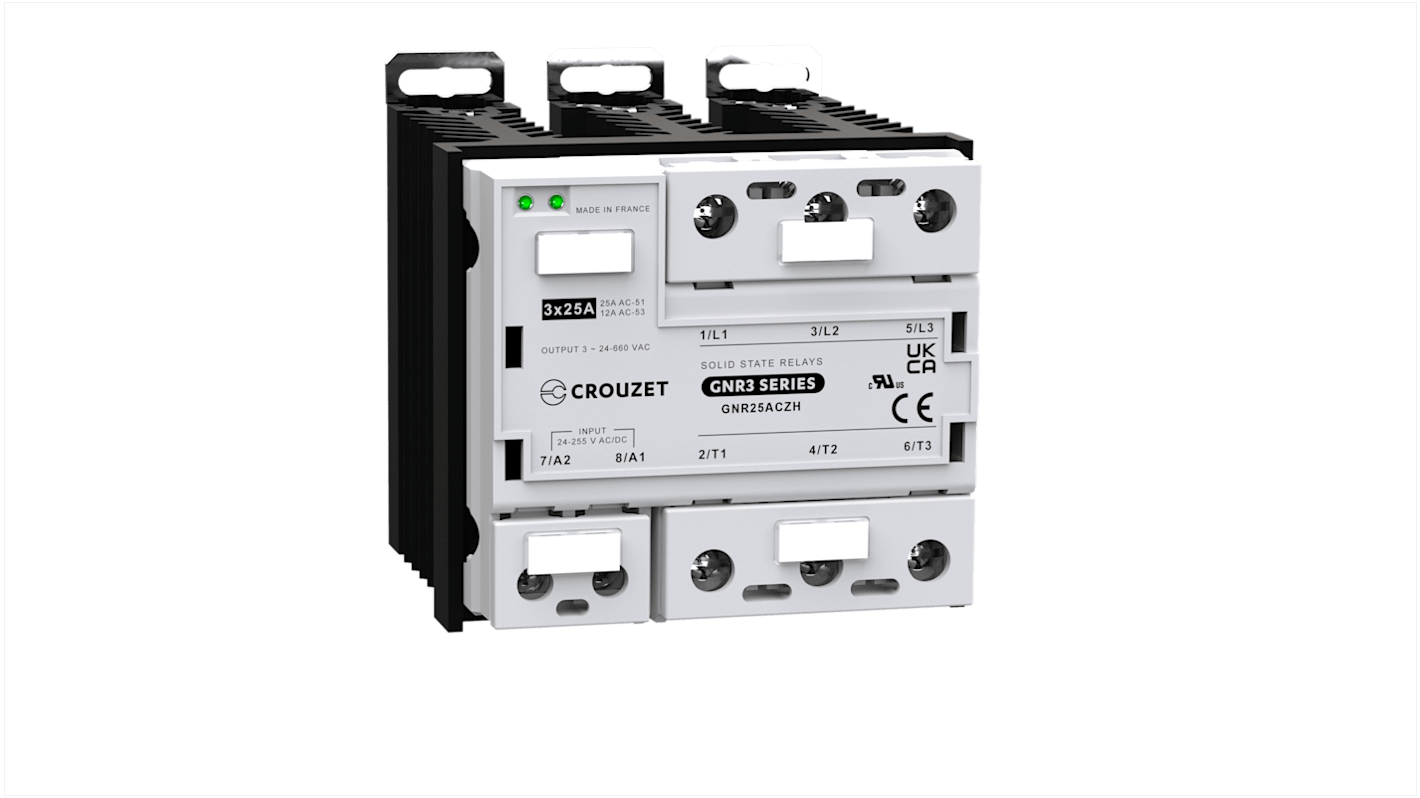

Crouzet GNR3 Series Solid State Relay, 25 A Load, DIN Rail Mount, 660 V ac Load, 255V ac/dc Control
- RS Stock No.:
- 284-6764
- Distrelec Article No.:
- 302-36-891
- Mfr. Part No.:
- GNR25ACZH
- Brand:
- Crouzet
Subtotal (1 unit)*
£200.24
(exc. VAT)
£240.29
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £200.24 |
*price indicative
- RS Stock No.:
- 284-6764
- Distrelec Article No.:
- 302-36-891
- Mfr. Part No.:
- GNR25ACZH
- Brand:
- Crouzet
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Crouzet | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 25A | |
| Mount Type | DIN Rail | |
| Maximum Load Voltage | 660V ac | |
| Minimum Load Voltage | 24V ac | |
| Maximum Control Voltage | 255V ac/dc | |
| Minimum Control Voltage | 24V ac/dc | |
| Series | GNR3 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Length | 104.7mm | |
| Standards/Approvals | IEC 61000-4-3, IEC 61000-4-2, UKCA, IEC 60068-2-27, IEC 61000-4-4, cRUus, IEC 61000-4-5, CE, IEC 60068-2-6, IEC 1000-4-6, UL508 | |
| Width | 89.8mm | |
| Height | 91.4mm | |
| Capacitance | 0.8pF | |
| Output Type | AC | |
| Off State Leakage Current | 1mArms | |
| Select all | ||
|---|---|---|
Brand Crouzet | ||
Product Type Solid State Relay | ||
Maximum Load Current 25A | ||
Mount Type DIN Rail | ||
Maximum Load Voltage 660V ac | ||
Minimum Load Voltage 24V ac | ||
Maximum Control Voltage 255V ac/dc | ||
Minimum Control Voltage 24V ac/dc | ||
Series GNR3 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Length 104.7mm | ||
Standards/Approvals IEC 61000-4-3, IEC 61000-4-2, UKCA, IEC 60068-2-27, IEC 61000-4-4, cRUus, IEC 61000-4-5, CE, IEC 60068-2-6, IEC 1000-4-6, UL508 | ||
Width 89.8mm | ||
Height 91.4mm | ||
Capacitance 0.8pF | ||
Output Type AC | ||
Off State Leakage Current 1mArms | ||
- COO (Country of Origin):
- FR
The Crouzet Solid State Relays are designed to be used in almost any application, offering very long life expectancy and are easy to install, easy to use, robust and multipurpose.
DIN Rail
LED input status indicator
Integrated IP20 touch-safe removable covers
