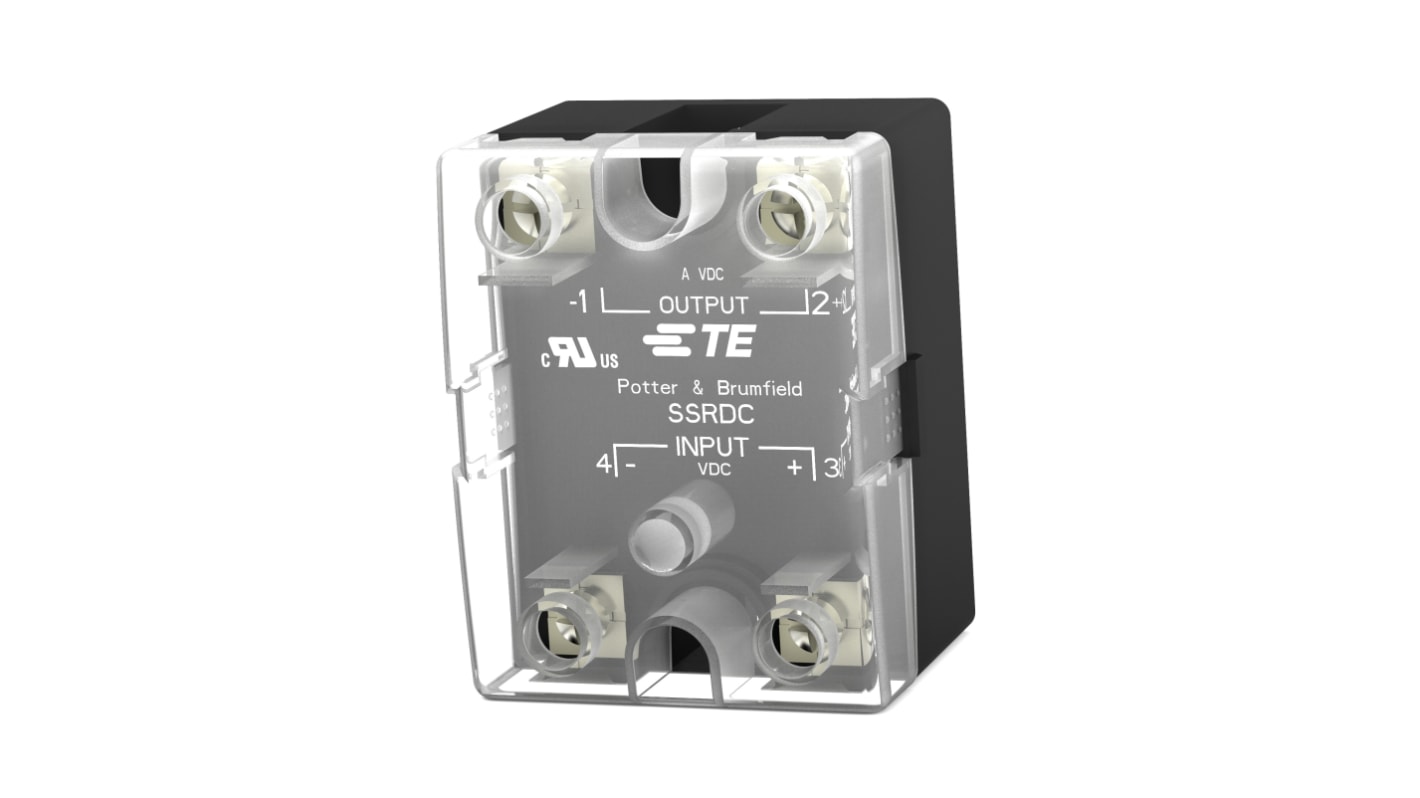

TE Connectivity SSRDC Series Solid State Relay, 25 A Load, Chassis Mount, 200 V ac/dc Load, 32 V ac/dc Control
- RS Stock No.:
- 276-3896
- Mfr. Part No.:
- SSRDC-200D25 2330274-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£100.20
(exc. VAT)
£120.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 29 unit(s) shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £100.20 |
| 5 - 9 | £96.03 |
| 10 - 24 | £91.01 |
| 25 + | £85.59 |
*price indicative
- RS Stock No.:
- 276-3896
- Mfr. Part No.:
- SSRDC-200D25 2330274-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Load Current | 25 A | |
| Mounting Type | Chassis Mount | |
| Maximum Load Voltage | 200 V ac/dc | |
| Minimum Load Voltage | 5 V ac/dc | |
| Minimum Control Voltage | 3.5 V ac/dc | |
| Maximum Control Voltage | 32 V ac/dc | |
| Series | SSRDC | |
| Dimensions | 45 x 58 x 43.4mm | |
| Maximum Operating Temperature | +80°C | |
| Depth | 58mm | |
| Minimum Operating Temperature | -30°C | |
| Height | 43.4mm | |
| Length | 45mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Load Current 25 A | ||
Mounting Type Chassis Mount | ||
Maximum Load Voltage 200 V ac/dc | ||
Minimum Load Voltage 5 V ac/dc | ||
Minimum Control Voltage 3.5 V ac/dc | ||
Maximum Control Voltage 32 V ac/dc | ||
Series SSRDC | ||
Dimensions 45 x 58 x 43.4mm | ||
Maximum Operating Temperature +80°C | ||
Depth 58mm | ||
Minimum Operating Temperature -30°C | ||
Height 43.4mm | ||
Length 45mm | ||
The TE Connectivity Potter and Brumfield Solid State Relays SSRDC Series utilizes DC switching technology with low power dissipation FETs which includes optical coupling.
Provides low power dissipation
Heat sink mounting
Heat sink mounting
