Panasonic AQW Series Solid State Relay, 500 mA Load, Surface Mount, 60 V ac/dc Load
- RS Stock No.:
- 247-4230
- Mfr. Part No.:
- AQW212EHA
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 tube of 50 units)*
£204.90
(exc. VAT)
£245.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 50 unit(s) shipping from 27 October 2025
- Plus 50 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
50 - 50 | £4.098 | £204.90 |
100 - 200 | £3.943 | £197.15 |
250 - 450 | £3.877 | £193.85 |
500 + | £3.811 | £190.55 |
*price indicative
- RS Stock No.:
- 247-4230
- Mfr. Part No.:
- AQW212EHA
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Maximum Load Current | 500 mA | |
Mounting Type | Surface Mount | |
Maximum Load Voltage | 60 V ac/dc | |
Switching Type | MOSFET Switching | |
Range | PhotoMOS | |
Contact Configuration | DPST | |
Output Device | Photo MOSFET | |
Series | AQW | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Maximum Load Current 500 mA | ||
Mounting Type Surface Mount | ||
Maximum Load Voltage 60 V ac/dc | ||
Switching Type MOSFET Switching | ||
Range PhotoMOS | ||
Contact Configuration DPST | ||
Output Device Photo MOSFET | ||
Series AQW | ||
- COO (Country of Origin):
- JP

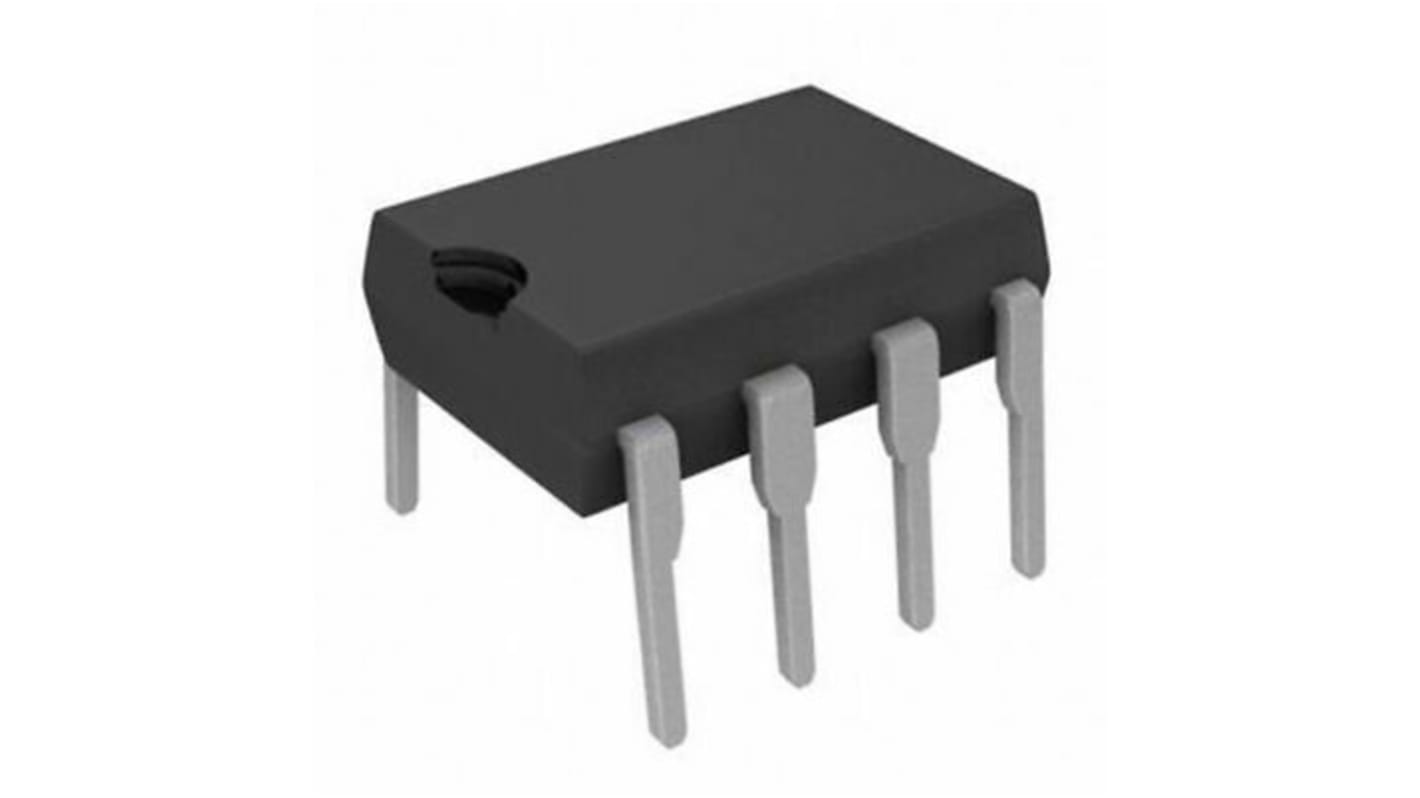

The Panasonic signal relay with contact arrangement of 2 form A, it is rated for load current of 500 mA, and load voltage of 60 V. This device comes in a 8-pin DIL surface mount package design, and it comes in a tube packaging.
High I/O isolation voltage of 5,000 V
Applicable for 2 Form A use as well as two independent 1 Form A use
Controls low-level analog signals
Applicable for 2 Form A use as well as two independent 1 Form A use
Controls low-level analog signals
