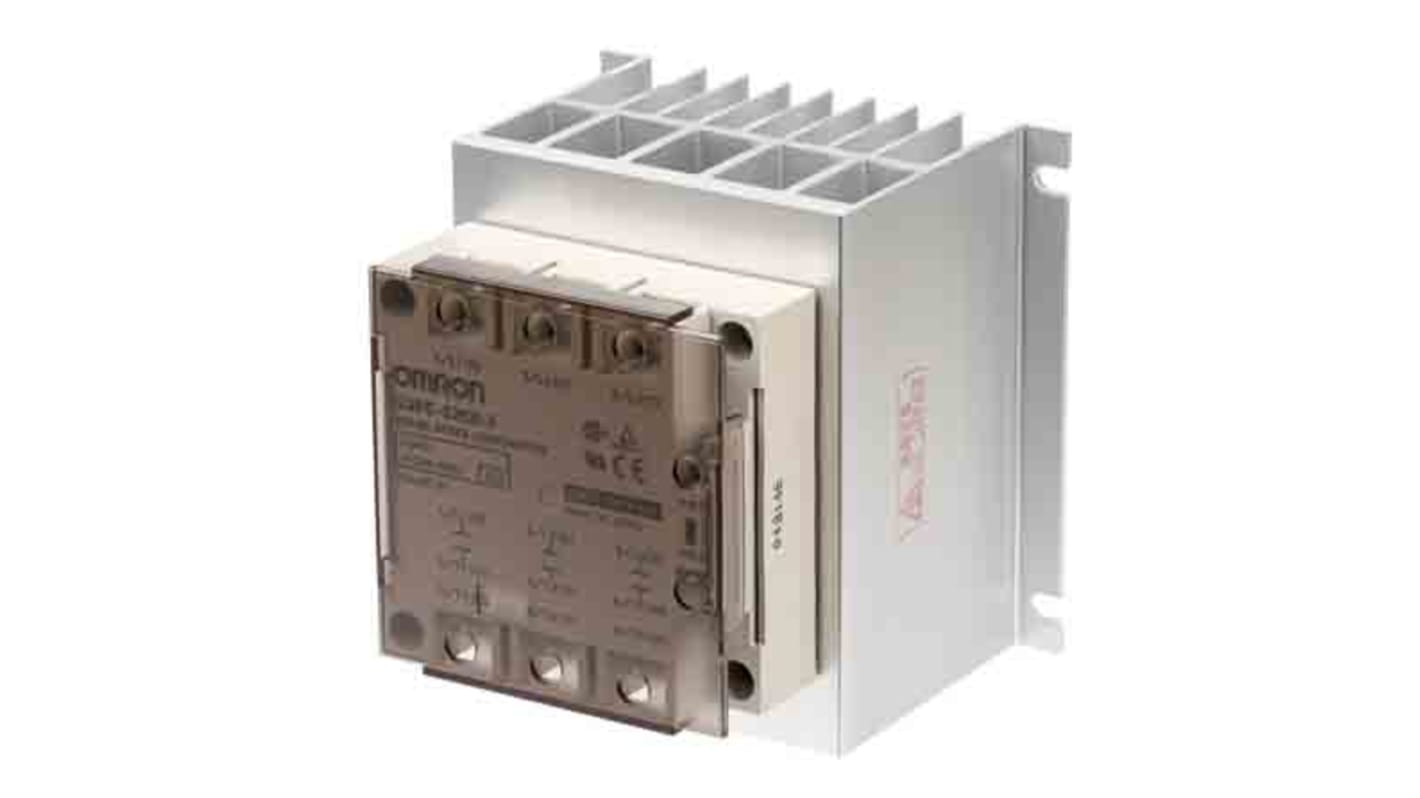

Omron G3PE Series Solid State Relay 3 Phase, 25 A Load, Screw Mount, 480 V ac Load, 24V Control
- RS Stock No.:
- 215-7258
- Mfr. Part No.:
- G3PE-525B-3 DC12-24
- Brand:
- Omron
Subtotal (1 unit)*
£176.04
(exc. VAT)
£211.25
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 23 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £176.04 |
*price indicative
- RS Stock No.:
- 215-7258
- Mfr. Part No.:
- G3PE-525B-3 DC12-24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Maximum Load Current | 25A | |
| Product Type | Solid State Relay 3 Phase | |
| Mount Type | Screw | |
| Maximum Load Voltage | 480V ac | |
| Minimum Load Voltage | 200V ac | |
| Maximum Control Voltage | 24V | |
| Minimum Control Voltage | 12V | |
| Series | G3PE | |
| Terminal Type | Screw | |
| Contact Configuration | 3PDT | |
| Switching Function | Zero Cross Switching | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | IEC, UL, RoHS, cUL, ECA | |
| Length | 155mm | |
| Height | 100mm | |
| Width | 22.5mm | |
| Output Type | Photocoupler | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Maximum Load Current 25A | ||
Product Type Solid State Relay 3 Phase | ||
Mount Type Screw | ||
Maximum Load Voltage 480V ac | ||
Minimum Load Voltage 200V ac | ||
Maximum Control Voltage 24V | ||
Minimum Control Voltage 12V | ||
Series G3PE | ||
Terminal Type Screw | ||
Contact Configuration 3PDT | ||
Switching Function Zero Cross Switching | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals IEC, UL, RoHS, cUL, ECA | ||
Length 155mm | ||
Height 100mm | ||
Width 22.5mm | ||
Output Type Photocoupler | ||
Omron G3PE Series Solid State Relay 3 Phase, 25A Maximum Load Current, 480V AC Maximum Load Voltage - G3PE-525B-3 12-24VDC
This solid-state relay 3 phase provides electrical on-off switching for three-phase AC loads, designed for industrial automation and motor control environments. It accepts a low-voltage DC control input and delivers isolated, semiconductor-based switching suitable for continuous operation within specified temperature limits.
Features and Benefits:
• 25A maximum load current delivers steady three-phase power handling • 480V AC maximum load voltage supports high-voltage systems • 12-24VDC control range enables compatibility with common control circuits • Photocoupler output offers electrical isolation between control and load • Low off-state leakage of 20mA reduces unintended current flow • Rated to 80°C operating temperature for higher ambient tolerance
Applications
• Suitable for on-off control SSR for motors in conveyor systems • Ideal for industrial SSR 3 phase 25A in factory automation racks • Used with motor starters requiring 3PDT SSR screw Terminal connections • Can be used for heating and load switching in process control • Used for retrofit of contactor-based panels to solid-state switching
What Terminal style does it use for panel wiring?
It uses screw terminals to secure input and output conductors for straightforward installation.
What environmental temperature range can it operate within?
It operates down to -30°C and up to 80°C without degradation of switching function.
How does the device behave when driven within the control voltage limits?
When the DC control signal remains between 12V and 24V the relay switches to the on state
below the minimum the output returns to off.
What switching function is provided for load control?
It performs simple on-off control of three-phase loads using semiconductor switching elements.
Which recognised standards cover its manufacture and testing?
It carries IEC, UL, cUL, RoHS and ECA recognitions indicating conformity to multiple technical standards.
