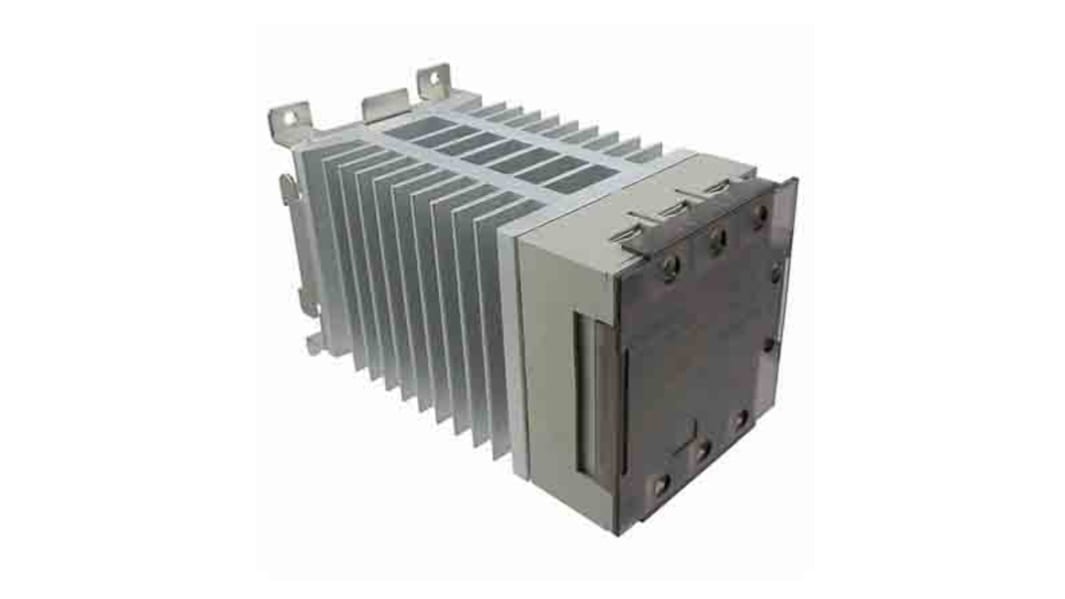

Omron G3PE Series Solid State Relay 3 Phase, 25 A Load, DIN Rail Mount, 480 V ac Load, 24V Control
- RS Stock No.:
- 215-7257
- Mfr. Part No.:
- G3PE-525B-2N DC12-24
- Brand:
- Omron
Subtotal (1 unit)*
£176.04
(exc. VAT)
£211.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £176.04 |
*price indicative
- RS Stock No.:
- 215-7257
- Mfr. Part No.:
- G3PE-525B-2N DC12-24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Maximum Load Current | 25A | |
| Product Type | Solid State Relay 3 Phase | |
| Mount Type | DIN Rail | |
| Maximum Load Voltage | 480V ac | |
| Minimum Load Voltage | 200V ac | |
| Maximum Control Voltage | 24V | |
| Minimum Control Voltage | 12V | |
| Series | G3PE | |
| Terminal Type | Screw | |
| Contact Configuration | NC | |
| Switching Function | Zero Cross Switching | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Length | 155mm | |
| Standards/Approvals | IEC, cUL, ECA, RoHS, UL | |
| Width | 80mm | |
| Height | 100mm | |
| Output Type | Phototriac Coupler | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Maximum Load Current 25A | ||
Product Type Solid State Relay 3 Phase | ||
Mount Type DIN Rail | ||
Maximum Load Voltage 480V ac | ||
Minimum Load Voltage 200V ac | ||
Maximum Control Voltage 24V | ||
Minimum Control Voltage 12V | ||
Series G3PE | ||
Terminal Type Screw | ||
Contact Configuration NC | ||
Switching Function Zero Cross Switching | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Length 155mm | ||
Standards/Approvals IEC, cUL, ECA, RoHS, UL | ||
Width 80mm | ||
Height 100mm | ||
Output Type Phototriac Coupler | ||
Omron G3PE Series Solid State Relay 3 Phase, 25A Load Current, 480V Maximum Load Voltage - G3PE-525B-2N 12-24VDC
This solid-state relay 3 phase is designed to switch three-phase AC loads in industrial control systems. It provides on-off switching using an optically isolated triac output suitable for automation, electronics and electrical installations, and operates from a low-voltage DC control input. The unit is intended for DIN rail or panel mounting and supports screw-terminal connections for straightforward wiring in control cabinets.
Features and Benefits:
• 25A switching current supports moderate industrial loads • 200-480V AC load range accommodates varied supply voltages • 12-24V DC control range allows flexible drive from control PLCs • Off-state leakage 20mA minimises standby current through loads • On-state resistance 100mΩ reduces conduction losses during operation • Rated to 80°C continuous operation for high-temperature environments
Applications
• Suitable for motor and heater switching in machine panels • Ideal for resistive and inductive three-phase heaters • Used with PLC outputs requiring phototriac isolation • Can be used for lighting and distribution switching in factories • Suitable for retrofit DIN rail installations in control cabinets
What mounting options are available for installation?
It can be secured on a DIN rail or fixed with screws via its Terminal housing for panel mounting.
What Terminal type is provided for wiring connections?
Screw terminals are provided to accept standard conductor terminations for reliable connections.
How does the device perform with varying ambient temperatures?
It is rated for operation down to -30°C and up to 80°C, enabling use in a wide thermal range without derating noted here.
Which regulatory approvals does it meet for industrial use?
The product carries IEC, UL, cUL, ECA and RoHS approvals suitable for many industrial applications.
What switching configuration does the relay use for three-phase systems?
It employs a double-pole single-throw arrangement to control paired poles per module using a phototriac coupler output.
