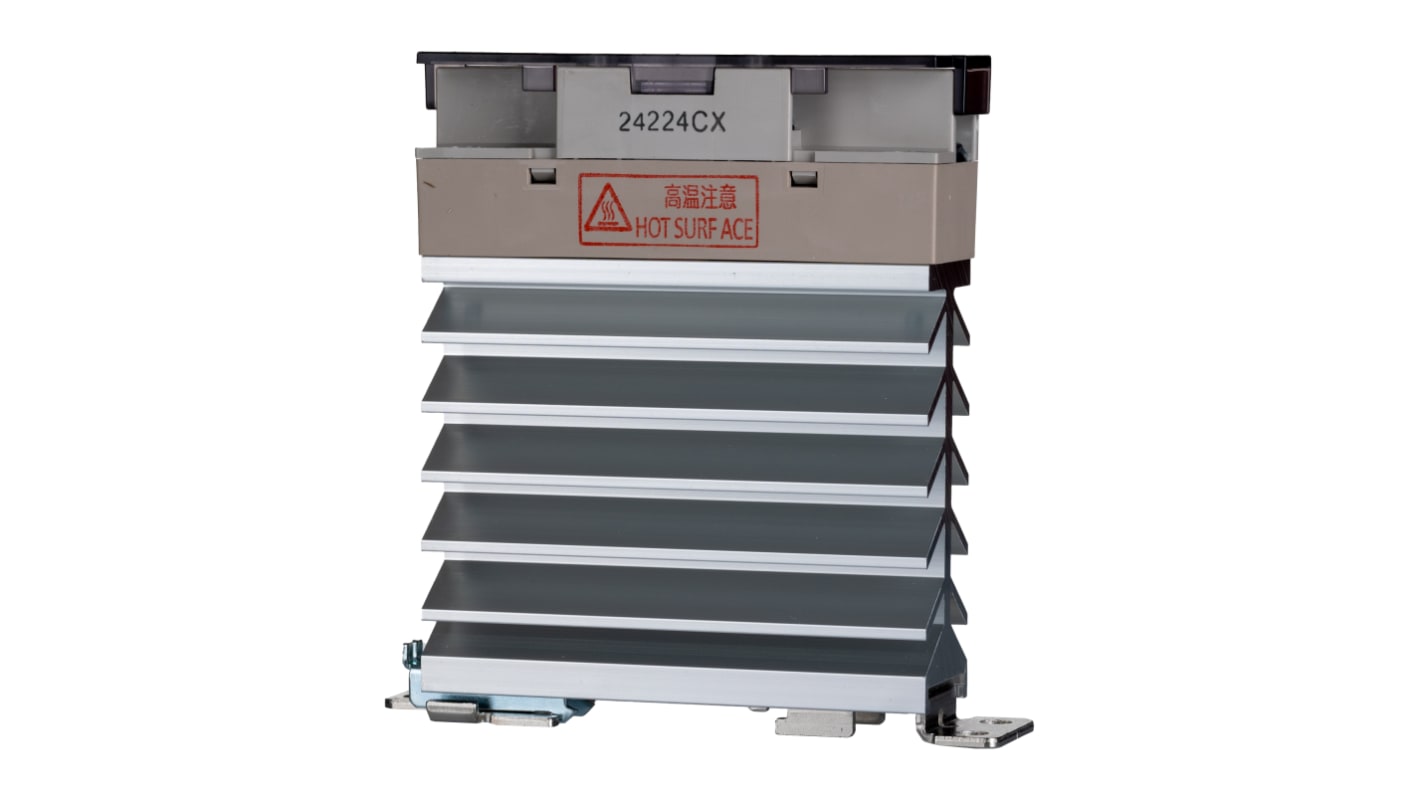

Omron G3PE Series Solid State Relay, 25A Load, DIN Rail Mount, 240 V ac Load
- RS Stock No.:
- 214-7945
- Mfr. Part No.:
- G3PE-225BL 12-24VDC
- Brand:
- Omron
Subtotal (1 unit)*
£48.65
(exc. VAT)
£58.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 24 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £48.65 |
*price indicative
- RS Stock No.:
- 214-7945
- Mfr. Part No.:
- G3PE-225BL 12-24VDC
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Maximum Load Current | 25A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 240 V ac | |
| Minimum Load Voltage | 100 V ac | |
| Minimum Load Current | 25A | |
| Range | Omron | |
| Output Device | Triac | |
| Series | G3PE | |
Select all | ||
|---|---|---|
Brand Omron | ||
Maximum Load Current 25A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 240 V ac | ||
Minimum Load Voltage 100 V ac | ||
Minimum Load Current 25A | ||
Range Omron | ||
Output Device Triac | ||
Series G3PE | ||
- COO (Country of Origin):
- CN
Omron G3PE Series Solid State Relay, 25A Maximum Load Current, DIN Rail Mounting - G3PE-225BL DC12-24
This solid state relay facilitates efficient control of electrical loads in automation and industrial applications. Its robust construction and consistent performance make it suitable for high voltage environments, ensuring effective power management. With a maximum operating temperature of 80°C, it serves well in scenarios where reliability and safety are essential.
Features & Benefits
• Handles a maximum load current of 25A
• Operates within a voltage range of 75V to 264V AC
• Compact design for easy installation on DIN rails
• Integrated Triac output device for strong performance
• Simple installation with minimal setup required
• Compliant with CE, CSA, and UL safety standards
• Operates within a voltage range of 75V to 264V AC
• Compact design for easy installation on DIN rails
• Integrated Triac output device for strong performance
• Simple installation with minimal setup required
• Compliant with CE, CSA, and UL safety standards
Applications
• Utilised for heater control in industrial environments
• Ideal for motor control in various machinery
• Commonly used in temperature control systems
• Suitable for lighting applications in automated settings
• Employed with electronic circuits requiring precise load management
• Ideal for motor control in various machinery
• Commonly used in temperature control systems
• Suitable for lighting applications in automated settings
• Employed with electronic circuits requiring precise load management
What is the suitable input voltage range for operation?
The input voltage range is from 12 to 24 V DC.
Is it compatible with DIN rail mounting?
Yes, it is designed for straightforward DIN rail mounting.
How does it handle inrush current?
The relay withstands inrush current without damage due to internal safeguards.
What conditions affect load current capabilities?
Ambient temperature significantly impacts the allowable load current.
Can it be used in three-phase applications?
This model is specifically intended for single-phase applications.
