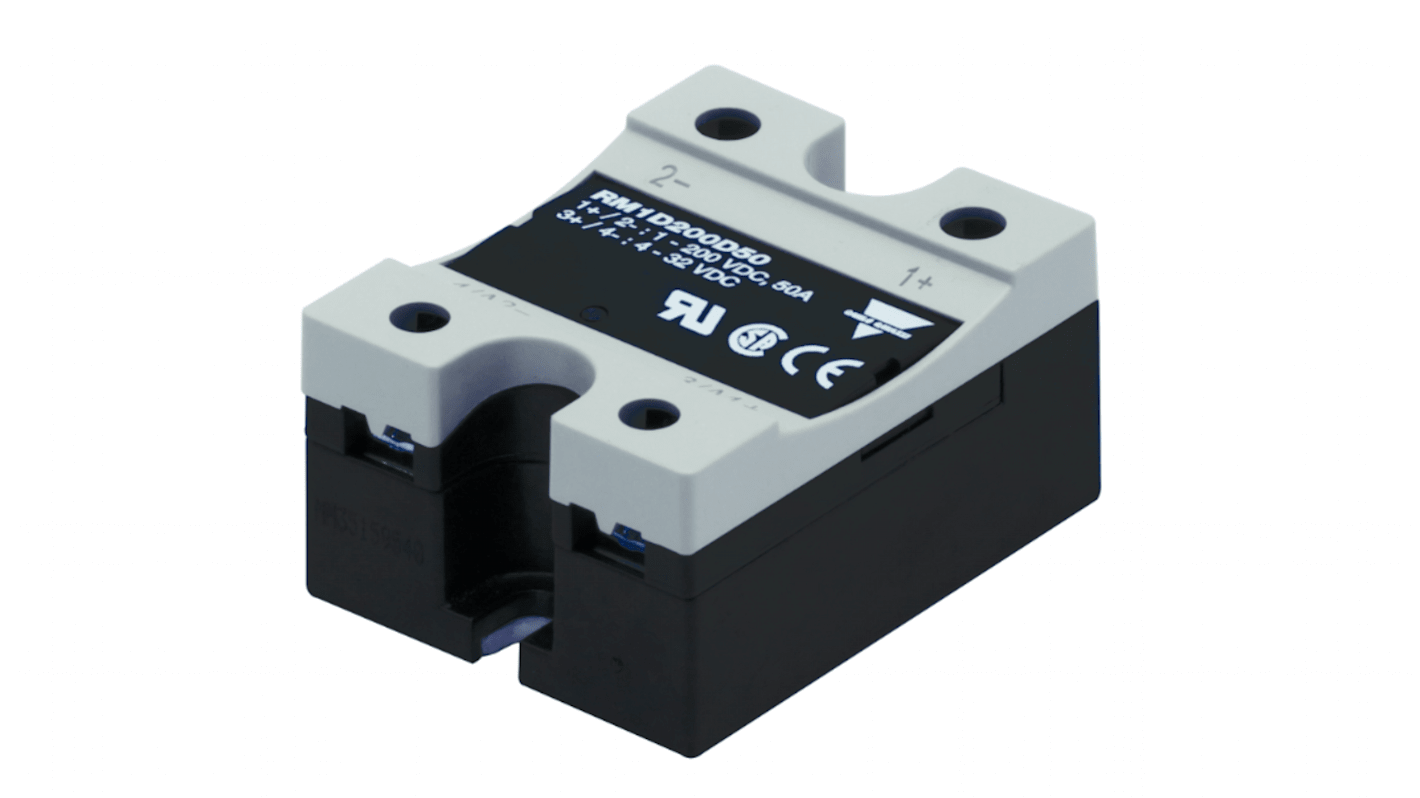

Carlo Gavazzi RM1D Series Solid State Relay, 10 A Load, Chassis Mount, 60 V Load

View all Solid State Relays

Subtotal (1 unit)*

£54.67

(exc. VAT)

£65.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
  • Plus 13 unit(s) ready to ship from another location
  • Plus 25 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£54.67

*price indicative

RS Stock No.:
209-8610
Distrelec Article No.:
304-27-316
Mfr. Part No.:
RM1D060D10
Brand:
Carlo Gavazzi
Find similar products by selecting one or more attributes.
Select all

Brand

Carlo Gavazzi

Maximum Load Current

10 A

Mounting Type

Chassis Mount

Maximum Load Voltage

60 V

Minimum Load Voltage

1 V

Switching Type

Instantaneous

Minimum Load Current

0.005 A

Contact Configuration

SPST

Output Device

Mosfet

Series

RM1D

COO (Country of Origin):
CN
The Carlo Gavazzi DC switching solid state relay expands switching solutions up to 100 A for supply voltages up to 60 VDC, up to 50 A for supply voltages of maximum 200 VDC and up to 10 A for supply voltages of maximum 500 VDC. The switching is controlled by a DC voltage in the range of 4 to 32 V. An LED indicates control voltage presence on the SSR. It is an ideal solution when switching response times, from ON to OFF and vice versa, are critical to the application.

Rated output voltage: 60VDC
Max. rated current (with heatsink): 10ADC
Low power dissipation output Mosfet
Switching frequency up to 1000 Hz
LED for control presence indication
Self-lifting terminals
Housing free of moulding mass
Fast response times to switch ON and OFF
