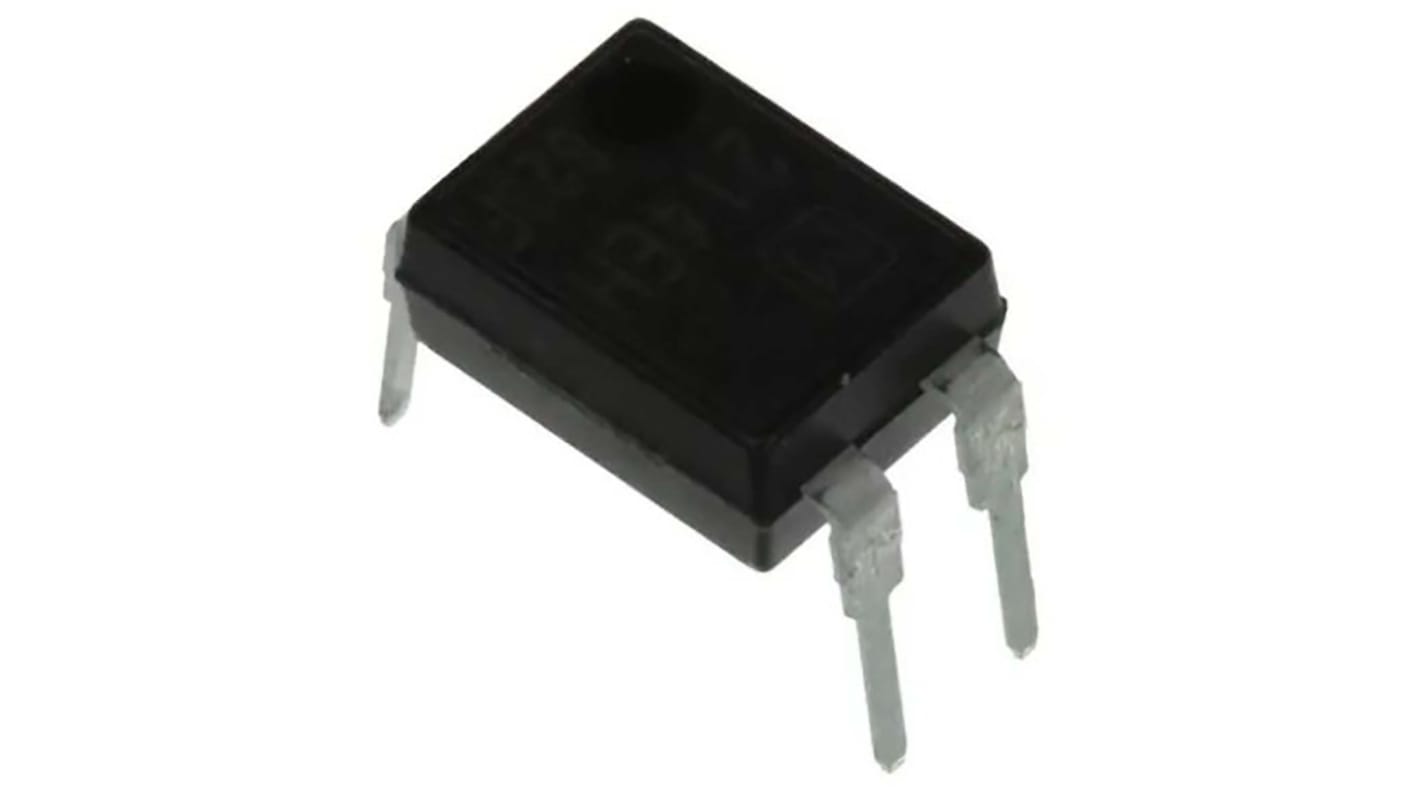

Panasonic PhotoMOS Series Solid State Relay, 1.5 A Load, Surface Mount, 60 V Load
- RS Stock No.:
- 205-6917
- Mfr. Part No.:
- AQY282EH
- Brand:
- Panasonic
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 100 units)*
£84.40
(exc. VAT)
£101.30
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 100 - 100 | £0.844 | £84.40 |
| 200 - 200 | £0.821 | £82.10 |
| 300 - 300 | £0.798 | £79.80 |
| 400 + | £0.777 | £77.70 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1.39
(exc. VAT)
£1.67
(inc. VAT)
- RS Stock No.:
- 205-6917
- Mfr. Part No.:
- AQY282EH
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 1.5A | |
| Mount Type | Surface | |
| Maximum Load Voltage | 60V | |
| Minimum Load Voltage | 60V ac/dc | |
| Series | PhotoMOS | |
| Contact Configuration | SPST | |
| Minimum Operating Temperature | -40°C | |
| Switching Function | AC/DC Switching | |
| On State Resistance | 2.5Ω | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL, BSI, C-UL | |
| Length | 6.4mm | |
| Height | 3.2mm | |
| Width | 4.78mm | |
| Off State Leakage Current | 1μA | |
| Capacitance | 0.8pF | |
| Output Type | MOSFET | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Solid State Relay | ||
Maximum Load Current 1.5A | ||
Mount Type Surface | ||
Maximum Load Voltage 60V | ||
Minimum Load Voltage 60V ac/dc | ||
Series PhotoMOS | ||
Contact Configuration SPST | ||
Minimum Operating Temperature -40°C | ||
Switching Function AC/DC Switching | ||
On State Resistance 2.5Ω | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL, BSI, C-UL | ||
Length 6.4mm | ||
Height 3.2mm | ||
Width 4.78mm | ||
Off State Leakage Current 1μA | ||
Capacitance 0.8pF | ||
Output Type MOSFET | ||
- COO (Country of Origin):
- TH
The Panasonic DIP4-pin type with reinforced insulation.
Reinforced insulation of 5,000 V
Controls low-level analogue signals
High sensitivity and low on-resistance
Low-level off state leakage current of max. 1 μA
