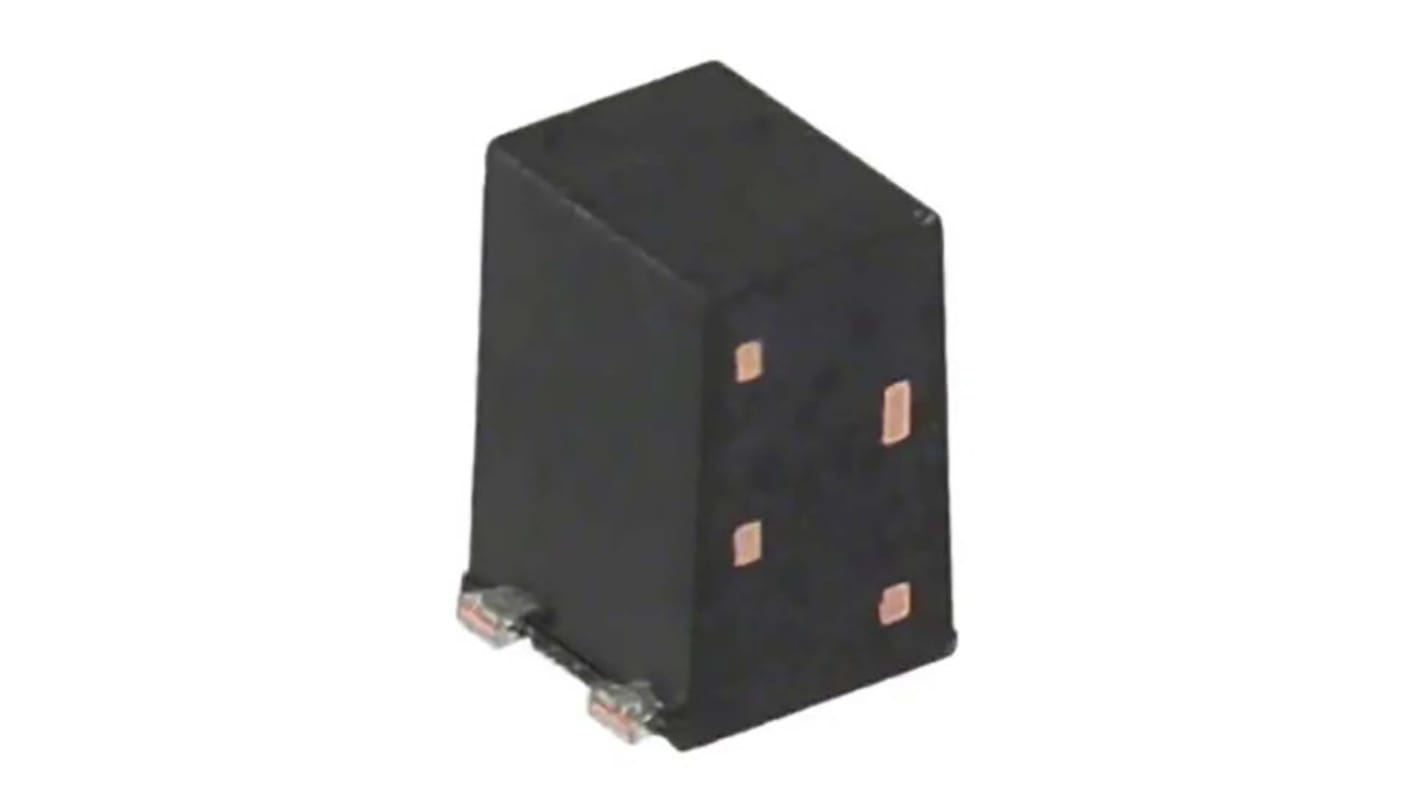

Panasonic PhotoMOS Series Solid State Relay, 0.3 A Load, Surface Mount, 100 V Load
- RS Stock No.:
- 205-6915
- Mfr. Part No.:
- AQY225R3T
- Brand:
- Panasonic
Subtotal (1 tube of 200 units)*
£1,863.40
(exc. VAT)
£2,236.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 200 + | £9.317 | £1,863.40 |
*price indicative
- RS Stock No.:
- 205-6915
- Mfr. Part No.:
- AQY225R3T
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Maximum Load Current | 0.3A | |
| Product Type | Solid State Relay | |
| Mount Type | Surface | |
| Maximum Load Voltage | 100V | |
| Minimum Load Voltage | 50V | |
| Series | PhotoMOS | |
| Terminal Type | Through Hole | |
| Contact Configuration | SPST | |
| On State Resistance | 14Ω | |
| Minimum Operating Temperature | -40°C | |
| Switching Function | AC/DC Switching | |
| Maximum Operating Temperature | 85°C | |
| Width | 1.8 mm | |
| Standards/Approvals | RoHS | |
| Length | 2.1mm | |
| Height | 2.9mm | |
| Capacitance | 1.5pF | |
| Off State Leakage Current | 10nA | |
| Output Type | MOSFET | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Maximum Load Current 0.3A | ||
Product Type Solid State Relay | ||
Mount Type Surface | ||
Maximum Load Voltage 100V | ||
Minimum Load Voltage 50V | ||
Series PhotoMOS | ||
Terminal Type Through Hole | ||
Contact Configuration SPST | ||
On State Resistance 14Ω | ||
Minimum Operating Temperature -40°C | ||
Switching Function AC/DC Switching | ||
Maximum Operating Temperature 85°C | ||
Width 1.8 mm | ||
Standards/Approvals RoHS | ||
Length 2.1mm | ||
Height 2.9mm | ||
Capacitance 1.5pF | ||
Off State Leakage Current 10nA | ||
Output Type MOSFET | ||
- COO (Country of Origin):
- JP
The Panasonic CxR type VSSOP package 60V and 100 V load voltage.
Miniature VSSOP package
Load voltage: 60 V and 100 V
Low CxR Low on resistance and low output capacitance available
