RS PRO Solid State Relay, 20 A Load, DIN Rail Mount, 530 V rms Load, 280 V ac Control
- RS Stock No.:
- 121-3889
- Brand:
- RS PRO
Subtotal (1 unit)*
£48.29
(exc. VAT)
£57.95
(inc. VAT)
FREE delivery for orders over £50.00
- 19 unit(s) shipping from 28 October 2025
Units | Per unit |
---|---|
1 + | £48.29 |
*price indicative
- RS Stock No.:
- 121-3889
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Maximum Load Current | 20 A | |
Mounting Type | DIN Rail | |
Maximum Load Voltage | 530 V rms | |
Minimum Load Voltage | 48Vrms | |
Maximum Control Voltage | 280 V ac | |
Minimum Control Voltage | 90 V ac | |
Switching Type | Random | |
Control Voltage Range | 90 → 280 V ac | |
Contact Configuration | SP | |
Terminal Type | Screw | |
Relay Type | Solid State Relay | |
Load Voltage Range | 48 → 530Vrms | |
Dimensions | 93.2 x 22.5 x 116.5mm | |
Standards Met | RoHS Compliant | |
Depth | 116.5mm | |
Capacitance | 8pF | |
Height | 93.2mm | |
Special Features | LED Indicator | |
Off State Leakage Current | 1mA rms | |
Length | 22.5mm | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Maximum Load Current 20 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 530 V rms | ||
Minimum Load Voltage 48Vrms | ||
Maximum Control Voltage 280 V ac | ||
Minimum Control Voltage 90 V ac | ||
Switching Type Random | ||
Control Voltage Range 90 → 280 V ac | ||
Contact Configuration SP | ||
Terminal Type Screw | ||
Relay Type Solid State Relay | ||
Load Voltage Range 48 → 530Vrms | ||
Dimensions 93.2 x 22.5 x 116.5mm | ||
Standards Met RoHS Compliant | ||
Depth 116.5mm | ||
Capacitance 8pF | ||
Height 93.2mm | ||
Special Features LED Indicator | ||
Off State Leakage Current 1mA rms | ||
Length 22.5mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- MX

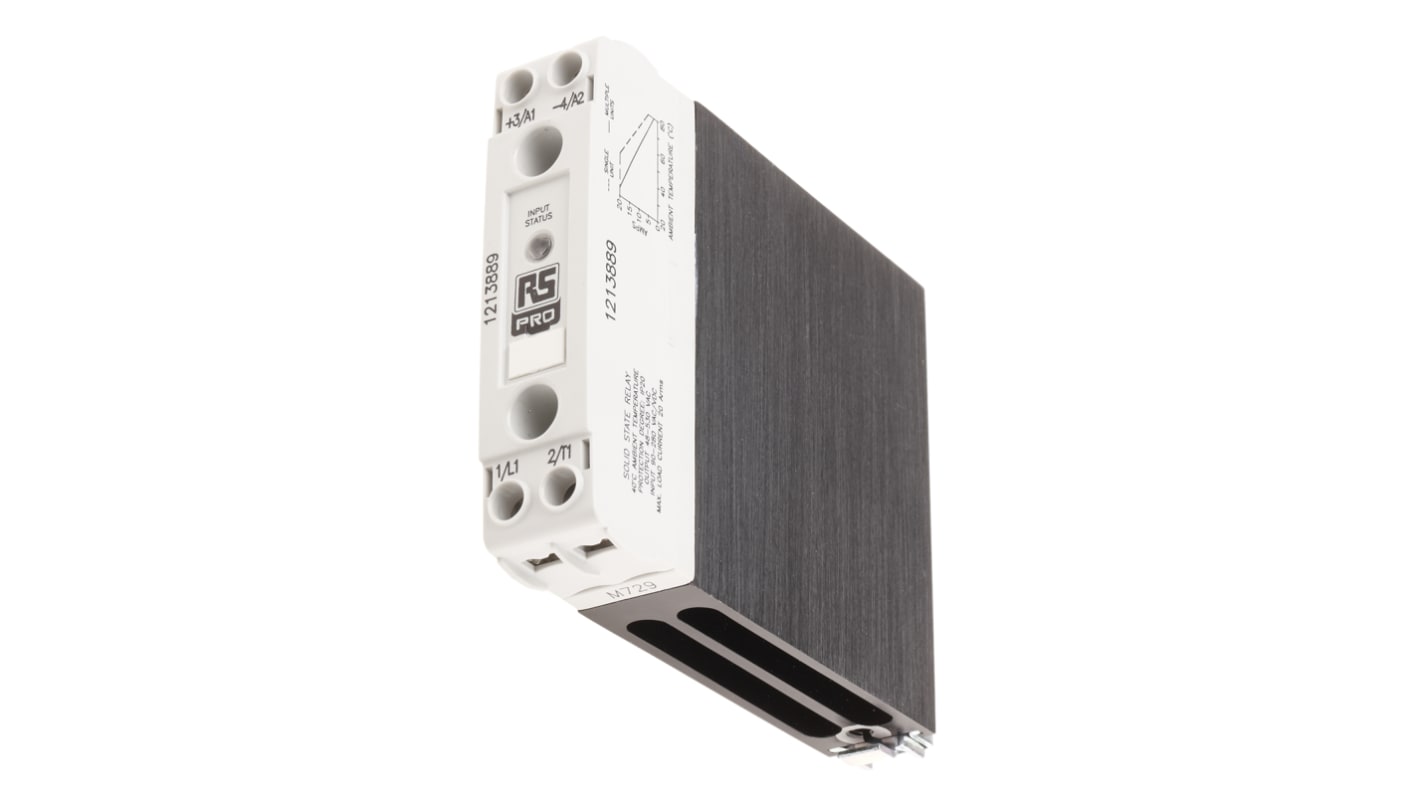

RS PRO 20 A SP Solid State Relay, DIN Rail, 530 V RMS Maximum Load
The slimline design and construction enable you to install the relay in compact spaces. An LED (light-emitting diode) shows whether the unit is on or off and functioning correctly.
An Ingress Protection (IP) rating of IP20 makes the relay safe to touch and means electrical shocks are prevented. You can use this product in your home and workshops.
Features and Benefits
• Service provider (SP) contact configuration
• Control voltage range of 90 to 280 V AC
• Dimensions of 93.2 (height) x 22.5 (length) x 116.5 (depth) mm
• Load voltage range of 48 to 530 V RMS (root mean square)
• Maximum control voltage of 280 V AC
• Maximum load current of 20 A
• Maximum load voltage of 530 V RMS
• Minimum control voltage of 90 V AC
• Minimum load voltage of 48 V RMS
• Maximum operating temperature of +60°C
• Minimum operating temperature of -20°C
• DIN rail mounting type
• Off-state leakage current of 1 mA RMS (root mean square)
• Solid-state relay type
• LED indicator special features
• Complies with RoHS (Restriction of Hazardous Substances) standards
• Screw terminal type
