Phoenix Contact PLC Series Solid State Relay, 1 A Load, DIN Rail Mount, 300 V Load, 132V Control

View all Solid State Relays

Subtotal (1 pack of 10 units)*

£430.87

(exc. VAT)

£517.04

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£430.87£43.087

*price indicative

RS Stock No.:
170-517
Mfr. Part No.:
2980694
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Solid State Relay

Maximum Load Current

1A

Mount Type

DIN Rail

Maximum Load Voltage

300V

Minimum Load Voltage

12V

Maximum Control Voltage

132V

Minimum Control Voltage

88V

Series

PLC

Terminal Type

Screw

Contact Configuration

1 NO

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

60°C

Length

94mm

Width

6.2mm

Height

80mm

Standards/Approvals

UKCA-compliant, CE-compliant, UL Recognised, UL Listed, cUL Listed, Shipbuilding Approval (DNV GL), RoHS, ISA-S71.04. G3 Harsh Group, IEC 60947-5-1, EN 60068-2-60, EAC, cULus Recognised, cULus Listed, cUL Recognised

Output Type

DC

COO (Country of Origin):
DE

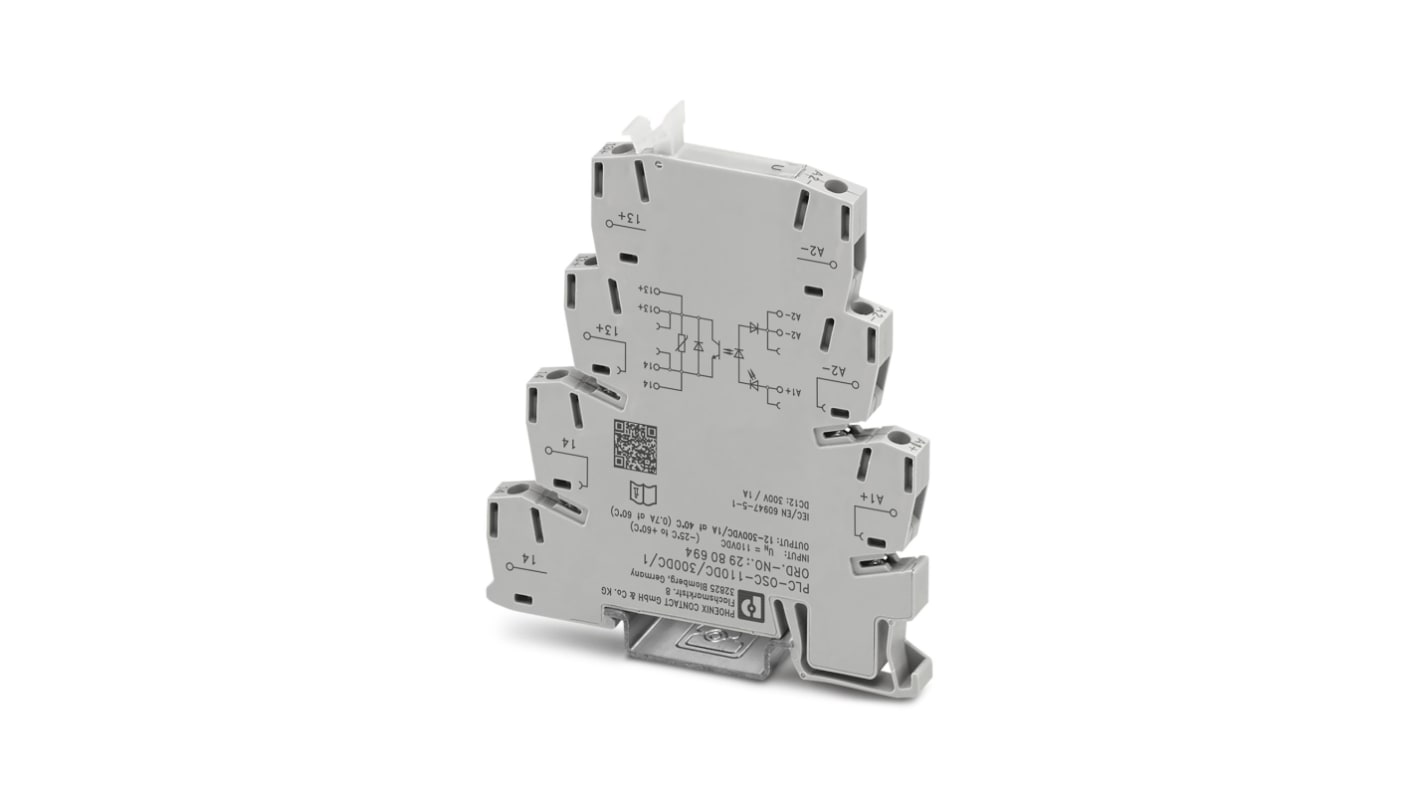

The Phoenix Contact solid-state relay module is an integrated solid-state relay with a screw connection. It is designed for mounting on NS 35/7, 5 DIN rails and has an input voltage of 110 V DC and an output voltage range of 12 to 300 V DC/1 A. With wear-free switching and resistance to vibrations and shocks, it offers reliable performance. The module also features a protective circuit in both the input and output, a status indicator, and DC voltage outputs up to 300 V DC/1 A.

Resistant to vibrations and shocks

Protective circuit for input and output

Status indicator for easy monitoring

DC voltage outputs up to 300 V DC/1 A

Option for bridging adjacent modules

Compact design for NS 35/7.5 DIN rails
