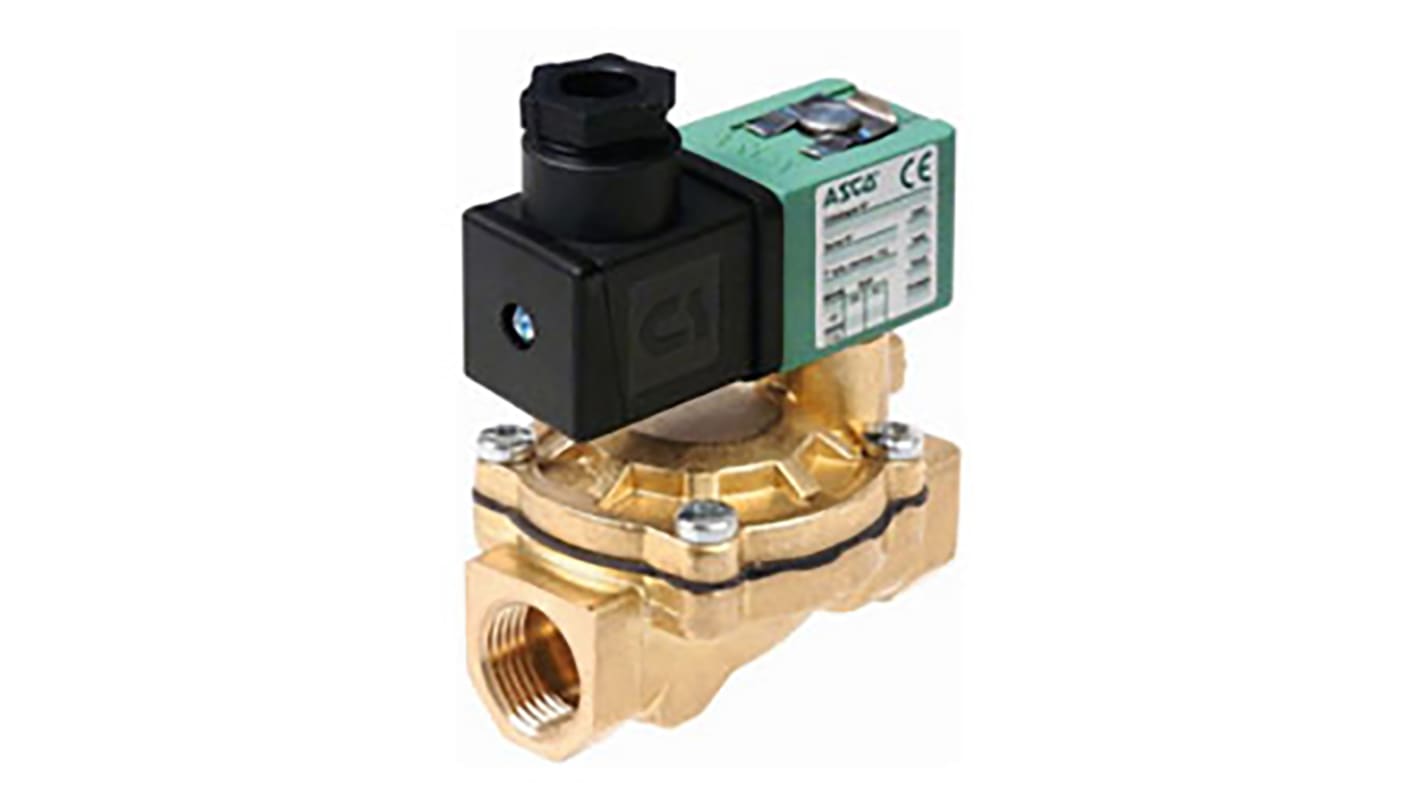

EMERSON – ASCO Solenoid Valve SCE238D002.24/DC, 2 port(s) , NC, 24 V dc, 1/2in

Save 3% when you buy 5 units

Subtotal (1 unit)*

£106.32

(exc. VAT)

£127.58

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 9 unit(s) ready to ship
  • Plus 23 unit(s) ready to ship from another location
  • Plus 999,999,990 unit(s) shipping from 16 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£106.32
5 +£103.01

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

RS Stock No.:
306-1446
Mfr. Part No.:
SCE238D002.24/DC
Brand:
EMERSON ? ASCO
Find similar products by selecting one or more attributes.
Select all

Brand

EMERSON ? ASCO

Supply Voltage

24 V dc

Number of Ports

2

Connection Size

1/2in

Connection

1/2 in G Female

Operation

Pilot

Default Valve Position

NC

Suitable Applications

Air, Inert Gas, Water

Type

2/2

Orifice Diameter

12mm

Body Material

Brass

Series

238

Maximum Working Pressure

10 bar

Operating Temperature Range

-10 → +85 °C

Connection Gender

Female

Minimum Operating Temperature

-10°C

Thread Standard or Connection Type

G

Maximum Operating Temperature

+85°C

Maximum Closing Time

90ms

Flow Factor Kv

2.4m³/h

Maximum Opening Time

30ms

COO (Country of Origin):
FR

Assisted control 2//2 solenoid valves


Range of 2//2 NC solenoid valves with power assistance, non supported diaphragm.
Solenoid valve operation with minimum Δ P of 0.3 bar for the 238 series and 0.35 bar for the 210 series.
Brass body.


Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.
