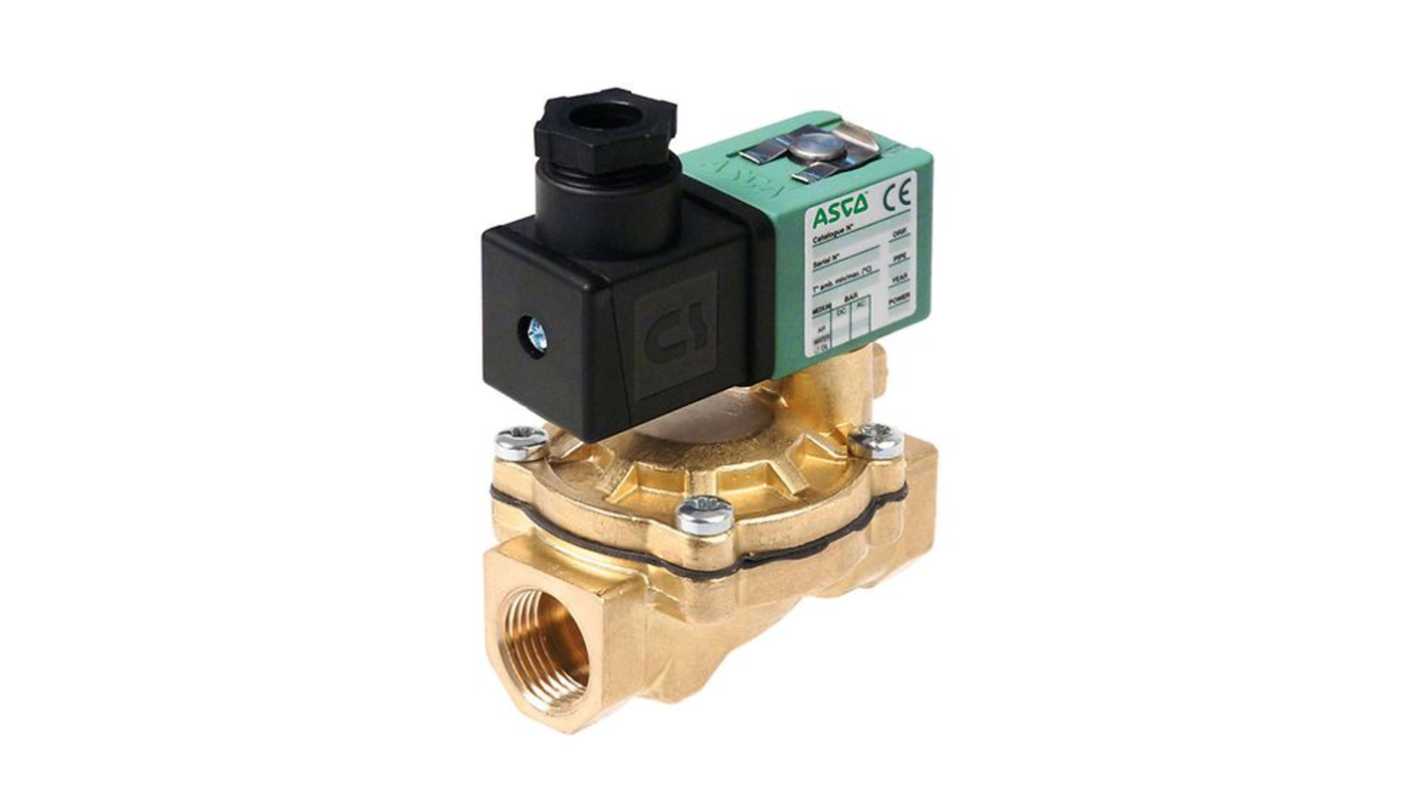

EMERSON – ASCO Solenoid Valve SCE238D003MO.115/50, 2 Port, NC G1-1/2 in, 115V, G1-1/2
- RS Stock No.:
- 432-608
- Mfr. Part No.:
- SCE238D003MO.115/50
- Brand:
- EMERSON ? ASCO
Subtotal (1 unit)*
£181.25
(exc. VAT)
£217.50
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £181.25 |
*price indicative
- RS Stock No.:
- 432-608
- Mfr. Part No.:
- SCE238D003MO.115/50
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? ASCO | |
| Supply Voltage | 115V | |
| Product Type | Solenoid Valve | |
| Number of Ports | 2 | |
| Inlet Port Size | G1-1/2 in | |
| Outlet Port Size | G1-1/2 | |
| Default Valve Position | NC | |
| Outlet Connection Type | Threaded | |
| Inlet Connection Type | Threaded | |
| Orifice Diameter | 15mm | |
| Series | 238 | |
| Application | Inert Gas, Air, Water | |
| Inlet Port Gender | Female | |
| Body Material | Brass | |
| Outlet Thread Standard | ISO 228/1 | |
| Outlet Port Gender | Female | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Servo Assist | No | |
| Standards/Approvals | ATEX Directive 2014/34/EU, IEC 335, UL/CSA (coils), ISO 4400, EN 60529, EN 175301-803 | |
| Hazardous Area Certification | ATEX Directive 2014/34/EU | |
| Maximum Closing Time | 2000ms | |
| Flow Factor Kv | 70L/min | |
| Maximum Opening Time | 1500ms | |
| Select all | ||
|---|---|---|
Brand EMERSON ? ASCO | ||
Supply Voltage 115V | ||
Product Type Solenoid Valve | ||
Number of Ports 2 | ||
Inlet Port Size G1-1/2 in | ||
Outlet Port Size G1-1/2 | ||
Default Valve Position NC | ||
Outlet Connection Type Threaded | ||
Inlet Connection Type Threaded | ||
Orifice Diameter 15mm | ||
Series 238 | ||
Application Inert Gas, Air, Water | ||
Inlet Port Gender Female | ||
Body Material Brass | ||
Outlet Thread Standard ISO 228/1 | ||
Outlet Port Gender Female | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Servo Assist No | ||
Standards/Approvals ATEX Directive 2014/34/EU, IEC 335, UL/CSA (coils), ISO 4400, EN 60529, EN 175301-803 | ||
Hazardous Area Certification ATEX Directive 2014/34/EU | ||
Maximum Closing Time 2000ms | ||
Flow Factor Kv 70L/min | ||
Maximum Opening Time 1500ms | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Asco solenoid valve from the Series 238 is engineered for precision control in automated systems, offering reliable performance across a range of applications. Built with a robust brass body and stainless steel internal components, this valve excels in durability and compatibility with various fluids, including water and air. Its impressive specifications include a wide ambient temperature range and a maximum viscosity threshold, making it suitable for diverse operational environments. The innovative built-in pilot design allows for quick response times, ensuring efficient fluid regulation without compromising efficiency. Enhanced with an IP65 rated enclosure, this valve safeguards against dust and moisture, making it ideal for use in challenging conditions. The straightforward installation process further guarantees minimal downtime, empowering operators to focus on enhancing productivity.
Robust construction ensures longevity and reduced maintenance costs
Operational versatility accommodates a variety of fluids
Quick opening and closing times optimise process control
IP65 enclosure protects against environmental factors
Simple installation supports rapid deployment in the field
Compatible with multiple power supplies, enhancing flexibility
Designed for interchangeability, allowing easy upgrades
Achieves compliance with EU directives for added assurance
