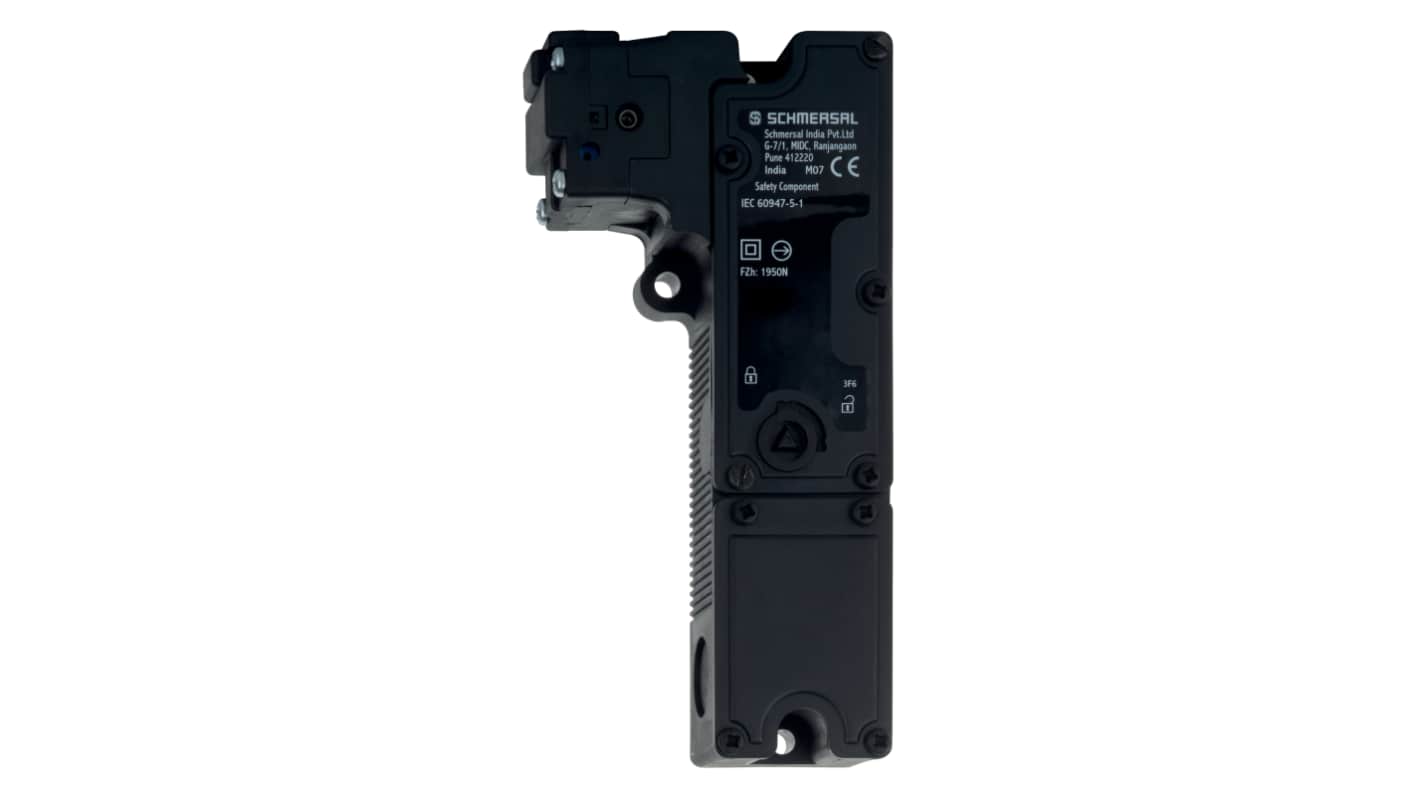

Schmersal AZM 190 Series Solenoid Interlock Switch, Power to Unlock

View this category

Subtotal (1 unit)*

£523.15

(exc. VAT)

£627.78

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£523.15

*price indicative

RS Stock No.:
336-068
Mfr. Part No.:
AZM190-02/01RK-230VAC
Brand:
Schmersal
Find similar products by selecting one or more attributes.
Select all

Brand

Schmersal

Product Type

Solenoid Interlock Switch

Actuator Included

No

Series

AZM 190

Safety Contacts

3

Terminal Type

Screw

Conduit Entry

2 x (M20 x 1.5)

Housing Material

Fibreglass Reinforced Thermoplastic

Power to Lock/Unlock

Power to Unlock

Contact AC Voltage

230V ac

Contact Current

4A

Contact DC Voltage

24V dc

Depth

178mm

Length

41mm

Width

52 mm

IP Rating

IP67, IP65

Standards/Approvals

EN IEC 60947-5-1, cULus, EN ISO 14119, EN ISO 13849-1, CCC, BG-GS-ET-19

Hazardous Area Certification

No

Power Consumption

8.5W

Supply Voltage

230 V ac

RoHS Status: Exempt

COO (Country of Origin):
IN
The Schmersal solenoid interlocks feature a thermoplastic enclosure designed for long life. They include an interlock mechanism with protection against incorrect locking and have dimensions of 89 mm x 178 mm x 41 mm. The actuating head can be repositioned by 4 x 90°, and the interlocks have 2 cable entries of M 20 x 1.5.

Wiring compartment

Slim design, particularly suitable for fitting on hinged doors, aluminum profiles and fencing

Sealing mechanism to prevent the ingress of dirt

Cut clamp termination
