Weller Electric Soldering Iron, 24V, 80W

RS Stock No.:: 361-0824
Mfr. Part No.:: T0052916699
Brand:: Weller

Technical Reference (2)

Weller Electric Soldering Iron, 24V, 80W

View all Soldering Irons

Discontinued product

Alternative

This product is not currently available. Here is our alternative recommendation.

Weller Electric Soldering Iron, 24V, 80W, for use with WD Series Soldering Stations, WRS Rework System

RS Stock No.: 405-3395

Price Each

£219.83

(exc. VAT)

£263.80

(inc. VAT)

RS Stock No.:: 361-0824
Mfr. Part No.:: T0052916699
Brand:: Weller

COO (Country of Origin):: MX

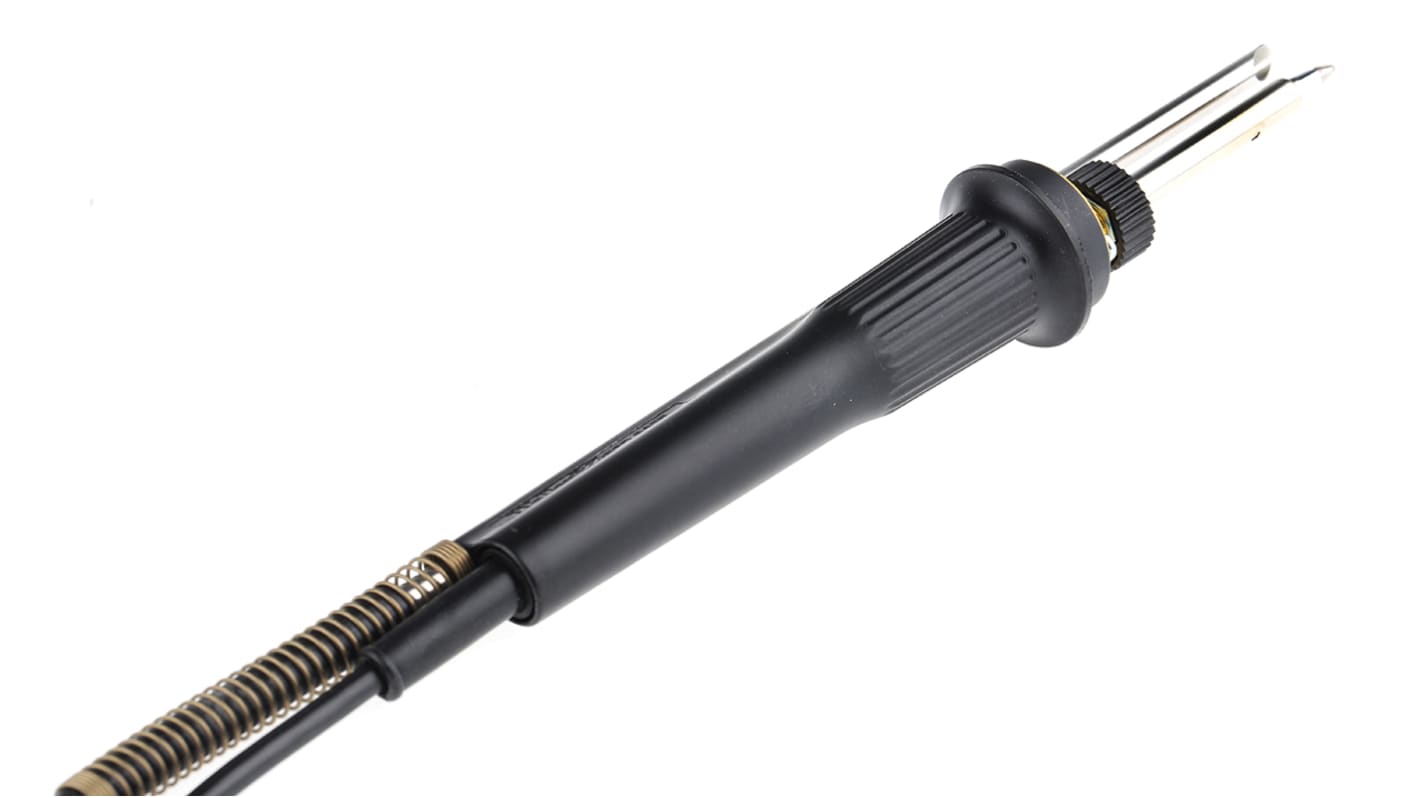

FE75, 80 W, Fume Extraction Soldering Iron.

From Weller this is the FE75 Fume Extraction soldering iron complete with an integrated extraction tube assisting in removing the solder fumes from where you are working. The fume extraction tube will not affect the solder temperature at the solder tip therefore not reduce the required outcome of the solder work. The soldering irons have been designed to work with the Zero-Smog fume extraction systems. The tube, extracting the solder fumes, is integrated with the handle of the soldering iron and sits over the solder tip. If you are using the iron when soldering in hard to reach areas the extraction tube can be retracted to allow better access plus, allows cleaning of the tube and soldering tips. The soldering iron heats up to the required temperature within 10 seconds to a maximum temperature of 450°C and includes silver-line heating technology controlling the temperature through suitable temperature-controlled tips.

Features and Benefits.

FE75 Soldering iron with fume extraction hose.

Can be used with Zero-smog fume extraction systems.

Voltage 24 V.

Power of 80 W.

Heat-up time 10 seconds.

Silver-line heating technology (temperature controlled).

Temperature range 50°C to 450°C.

Tip type HPB.

Tip range LT Series.

Ergonomic handle.

Retractable hose.

Easy to clean and maintain.

ESD Safe.

Can be used with Weller WFE vacuum cleaners (compressed air addition required) or WFE-P (integrated pump).

What's included?

FE75 Soldering iron.

Fame proof extraction hose (approx. 2.5 m).

LT B Chisel soldering tip, 2.4 mm x 0.8 mm – stock number 2778266.

Typical Applications.

Electronics. General soldering.

Where fume extraction is important.

Weller Solder Iron Tips Available.

LT-1S Straight Conical 0.2mm, stock number 2921965.

LT-1L Straight Conical 0.2mm, stock number 3610739.

LT-1LX Bent Conical 0.2mm, stock number 3610751.

LT-1 Straight Conical 0.25 mm, stock number 5186171.

LT-1X Bent Conical 0.4mm, stock number 3610767.

LT-1SLX Bent Conical 0.4mm. stock number 3610773.

LT-S Straight Conical 0.4mm, stock number 3893057.

LT-H Straight Chisel 0.8mm, stock number 2922047.

LT HX Bent Chisel 0.8mm, stock number 4824535.

LT-4X Bent Chisel 1.2mm, stock number 3610795.

LT-K Straight Chisel 1.2mm, stock number 2922053.

LT 4 Straight Hoof 1.2 mm, stock number 6246460.

LT-A Straight Chisel 1.6mm, stock number 2921971.

LT AS Straight Conical, 1.6mm, stock number 2921987.

LT-AX Bent Chisel 1.6mm, stock number 3610789.

LT-L Straight Chisel 2mm, stock number 3610717.

SMD LT-GW Straight Hoof 2.3mm, stock number 2922031.

LT BX Bent Chisel 2.4mm, stock number 4824507.

LT-B Straight Chisel 2.4mm, stock number 2778266.

LT BB Straight Knife 2.4mm, stock number 6531465.

LT CC Straight Hoof 3.2mm, stock number 6531471.

LT CS Straight Conical 3.2mm, stock number 2922019.

LT-C Straight Chisel 3.2mm, stock number 2922003.

LT-M Straight Chisel 3.2mm, stock number 3610723.

LT D Straight Chisel 4.6mm, stock number 5096517.

Other Soldering Irons Available.

FE 75, 80 W, for WRS Rework systems.

WD soldering stations, stock number 4053396.

FE75, 80 W, 34 V, stock number 3610824.

FE50M, 24 V, Stock number 518387.

FE50, 50 W, 24 V, stock number 1887167.

Power Supply Units Available.

WR 2, 300 W, 230 V, stock number 7192608.

PU 61, 80 W, 230 V, stock number 4310244.

Note

A spring/funnel set for irons equipped with extraction systems is also available separately.

Station Irons - Weller

Attribute	Value
Power Type	Electric
Model Number	FE 75
Wattage	80W
Input Voltage	24V
Tip Series	LT
