Weller Soldering Accessory WHP3000 Soldering Iron Pre Heating Plate

View all Soldering Accessories

Subtotal (1 unit)*

£1,838.03

(exc. VAT)

£2,205.64

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,838.03

*price indicative

RS Stock No.:
510-1366
Mfr. Part No.:
T0053364699
Brand:
Weller
Find similar products by selecting one or more attributes.
Select all

Brand

Weller

Model Number

WHP3000

Soldering Accessory Type

Soldering Iron Pre Heating Plate

Voltage Rating

220V

Wattage

1200W

COO (Country of Origin):
MX

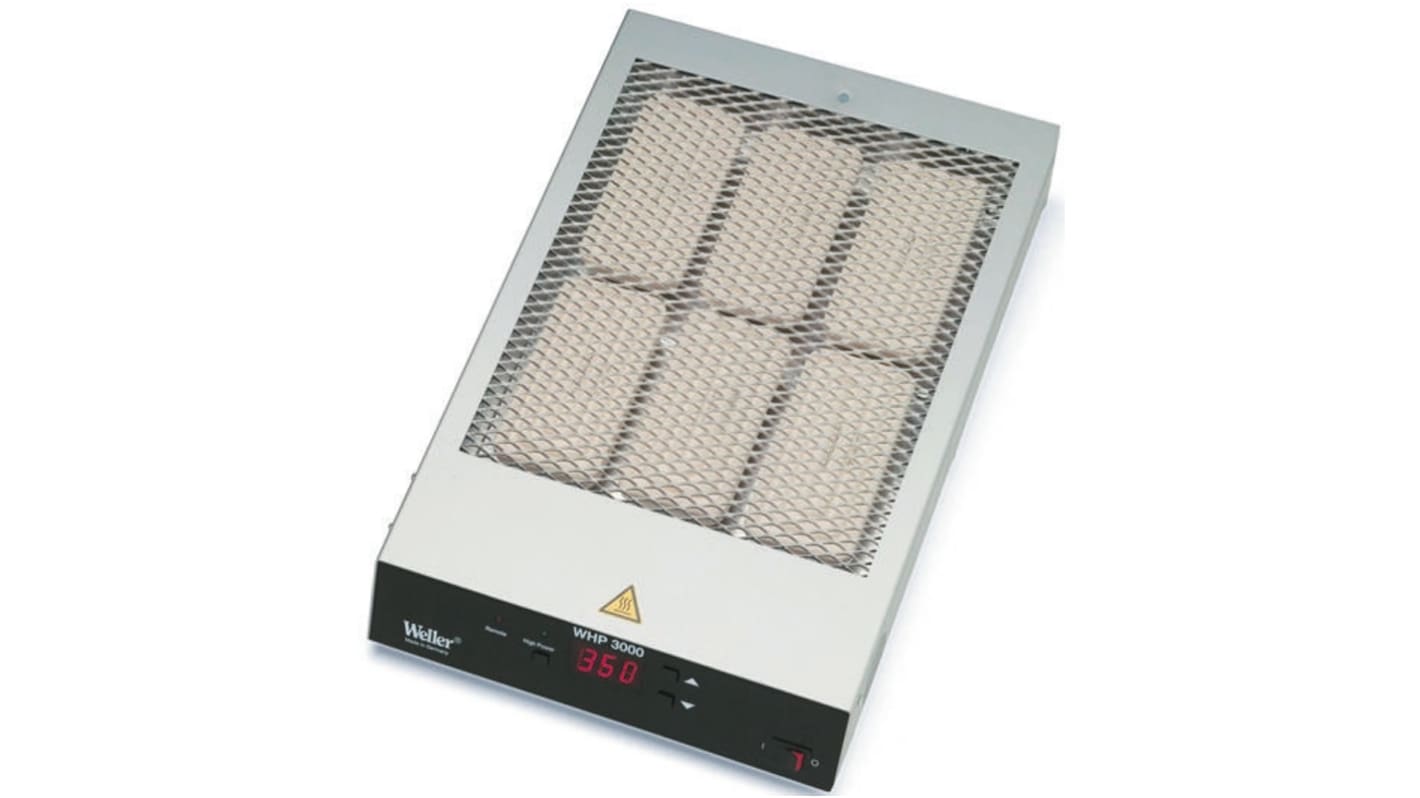

Weller WHP 3000 Infrared Preheating Plates


Introducing the Weller WHP 3000 infrared preheating plates. The primary purpose of this device is to preheat PCBs prior to carrying out repairs. This process has been proven to reduce thermal damage and reduce the heat requirement from a hot air pencil. Incorporated into the design are excellent features such as a digital display for set and actual temperature, rapid heating ceramic plates with 2 heated zone options.

The WHP 3000 is ideal for lead-free solder rework and can be controlled via an internal control system or integrated into Weller’s WHA 3000 V system. The Weller WHP 3000 is welcomed addition to any soldering station or soldering iron set up.

Features and Benefits


  • 600 W, 1200 W/ 230 V

  • High & low power settings

  • Lead-free solder rework

  • Totally self-contained - no external PSU

  • Can be used as a stand-alone pre heat solution

  • Easy Fix board holder

  • Digitally controlled

  • Rapid heating ceramic plates

  • 2 heated zones can be selected

  • Non-contact safety mash

  • Easy cleaning

  • External sensor (accessory) connectable

  • K-type thermocouple socket for monitoring

  • RS 232-Interface cable - for connection to WHA 3000 hot air station

  • Temperature range 50 °C – 400 °C

  • Supported board sizes: 120 x 190 mm or 190 x 245 mm

Weller WHP 3000 Infrared Preheating Plate Options


  • T0053364699N, 600 W/ 230 V = RS stock no: 510-1366

  • T0053338699N, 1200 W/ 230 V = RS stock no: 401-018

Typical Applications


Infrared preheating plates are the ideal essential soldering station accessory. They are typically used in applications such as;

  • Electrical & Electronic Servicing

  • Soldering & De-soldering

  • DIY hobbyist
