TE Connectivity Yellow Polyolefin Solder Sleeve 42mm Length 2.8 → 6mm Cable Diameter
- RS Stock No.:
- 136-2082
- Mfr. Part No.:
- B-155-9004
- Brand:
- TE Connectivity
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 136-2082
- Mfr. Part No.:
- B-155-9004
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Minimum Cable Diameter | 2.8mm | |
| Maximum Cable Diameter | 6mm | |
| Sleeve Length | 42mm | |
| Material | Polyolefin | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
| Quantity | 2 | |
| Colour | Yellow | |
| Shrink Temperature | +85°C | |
| Standards Met | ANSI J-STD-004, ANSI J-STD-006 | |
| Series | B-155 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Minimum Cable Diameter 2.8mm | ||
Maximum Cable Diameter 6mm | ||
Sleeve Length 42mm | ||
Material Polyolefin | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Quantity 2 | ||
Colour Yellow | ||
Shrink Temperature +85°C | ||
Standards Met ANSI J-STD-004, ANSI J-STD-006 | ||
Series B-155 | ||
- COO (Country of Origin):
- MX
Solder Sleeves®

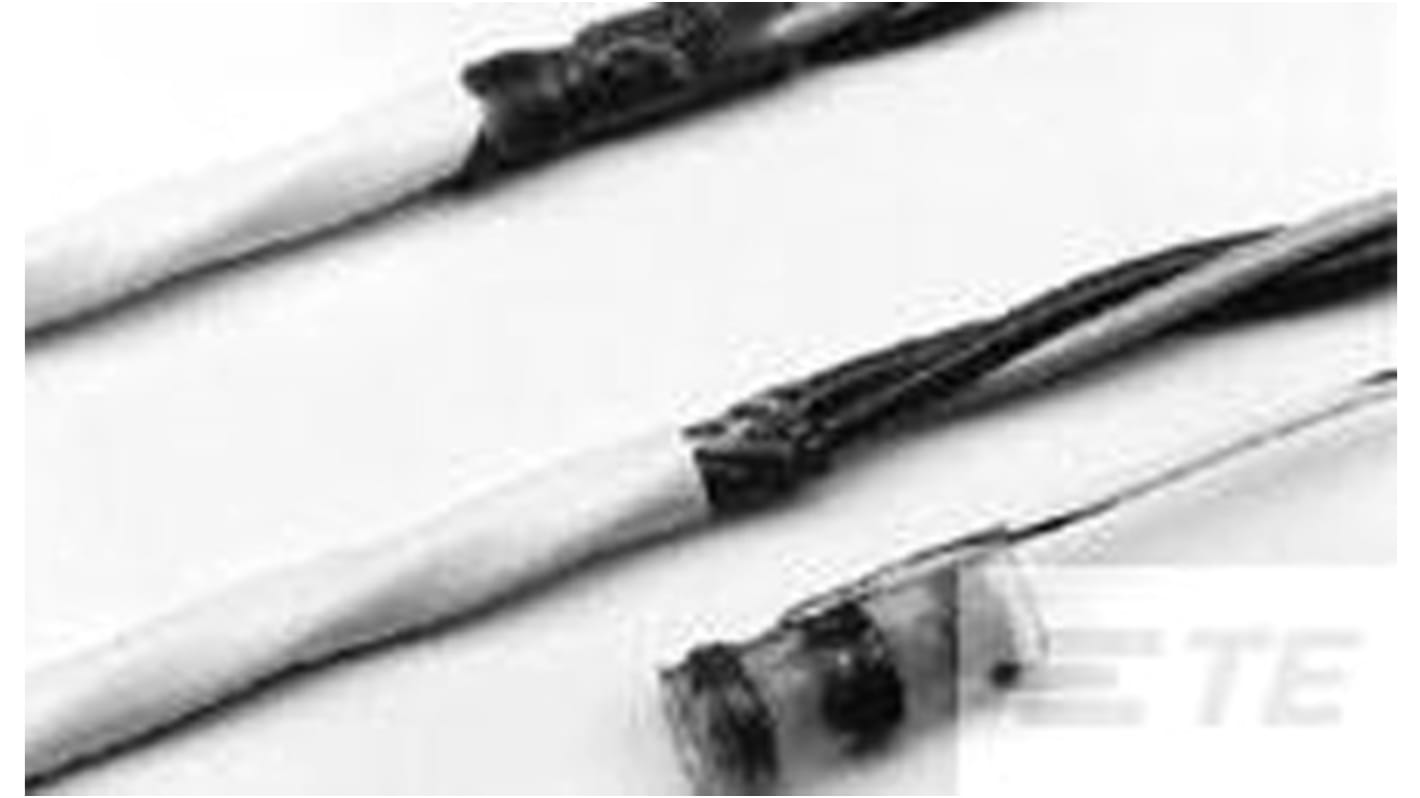

A one piece soldering system for jointing signal cables and terminating cable screens. The system consists of heat shrinkable sleeve containing a predetermined amount of fluxed solder and a thermoplastic sealing insert at each end. The solder sleeve is placed over the joint to be made and the sleeve is heated by a heat gun. The sleeve shrinks, the sealing inserts melt and flow and the solder starts to melt. Heating is continued until the solder is seen to fully melt and flow. Temperature range -55°C to +125°C.
