TE Connectivity Natural Polyvinyl Fluoride Solder Sleeve 19.05mm Length 7.6 mm Cable Diameter 4.1 mm Cable Diameter
- RS Stock No.:
- 487-302
- Mfr. Part No.:
- D-142-52
- Brand:
- TE Connectivity
Subtotal (1 pack of 100 units)*
£203.27
(exc. VAT)
£243.92
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £203.27 | £2.033 |
*price indicative
- RS Stock No.:
- 487-302
- Mfr. Part No.:
- D-142-52
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Solder Sleeve | |
| Sub Type | Solder Sleeve | |
| Sleeve Length | 19.05mm | |
| Material | Polyvinyl Fluoride | |
| Dielectric Strength | 1kV | |
| Minimum Cable Diameter | 4.1mm | |
| Maximum Cable Diameter | 7.6mm | |
| Colour | Natural | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | ANSI J-STD-004, ANSI J-STD-006 | |
| Series | D-142 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Solder Sleeve | ||
Sub Type Solder Sleeve | ||
Sleeve Length 19.05mm | ||
Material Polyvinyl Fluoride | ||
Dielectric Strength 1kV | ||
Minimum Cable Diameter 4.1mm | ||
Maximum Cable Diameter 7.6mm | ||
Colour Natural | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals ANSI J-STD-004, ANSI J-STD-006 | ||
Series D-142 | ||

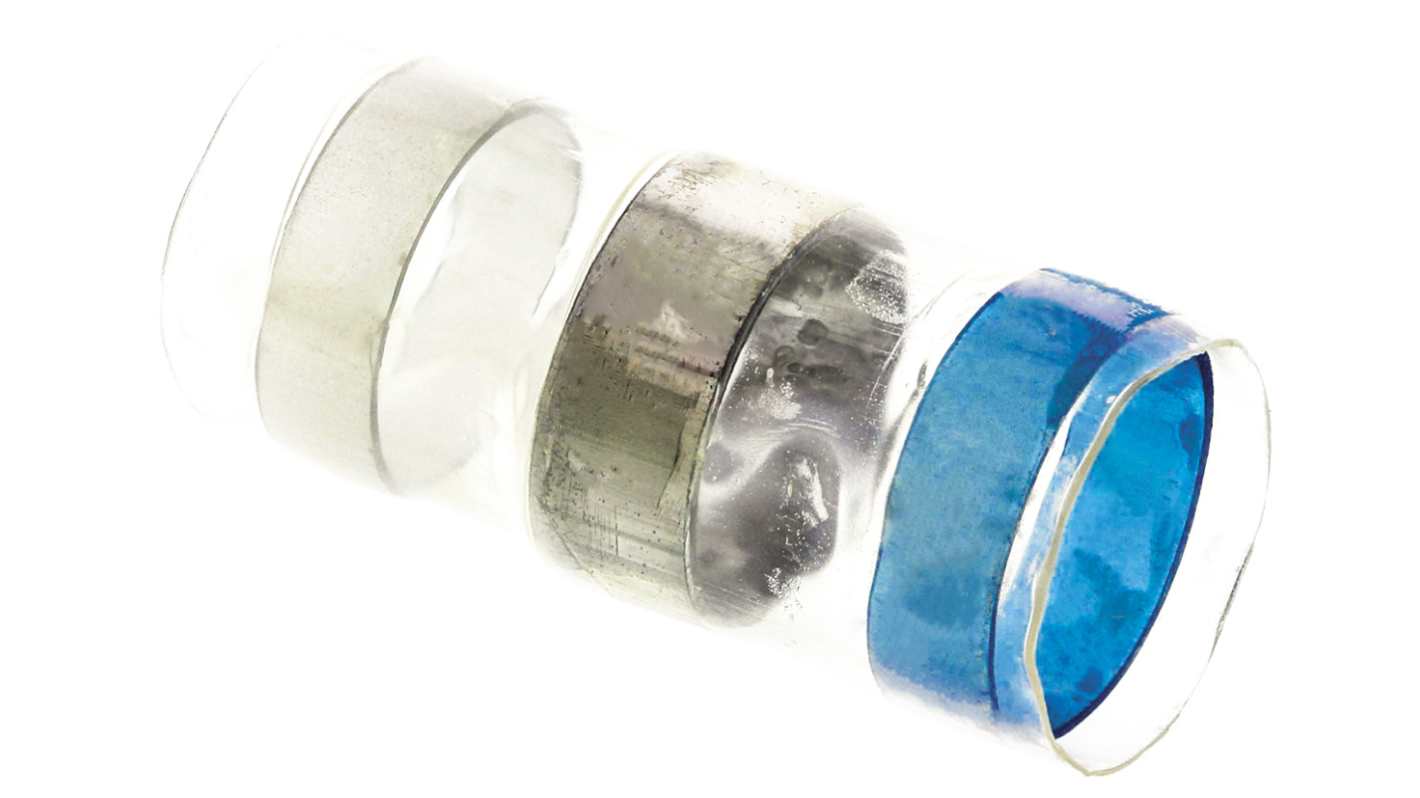

The TE Connectivity Solder Sleeve Shield Terminator, designed for low-temperature applications with shielded cable terminations. It features a heat-shrinkable polyvinylidene fluoride sleeve, ensuring secure electrical connections while providing strain relief and environmental sealing. These components are ideal for aerospace and defence applications.
Complies with Raychem RT 1404 standard
Complies with NAS 1745 standards
Meltable Rings
