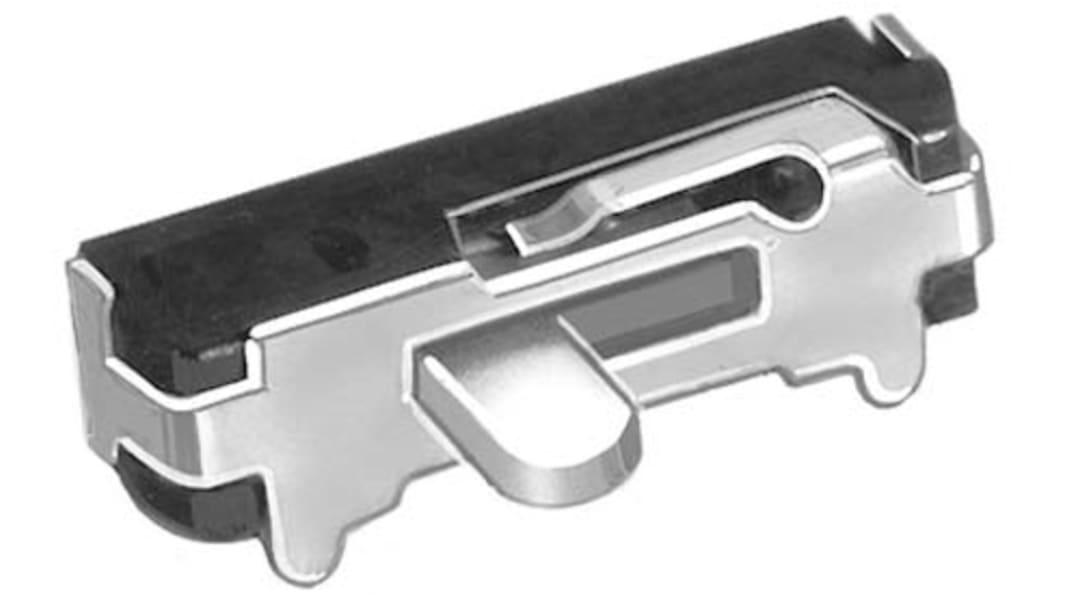

KNITTER-SWITCH PCB Slide Switch SPST Latching 200 mA @ 12 V dc, 300 mA @ 6 V dc, 500 mA @ 4 V dc Slide
- RS Stock No.:
- 913-9053
- Mfr. Part No.:
- MMS 124
- Brand:
- KNITTER-SWITCH
Bulk discount available
Subtotal (1 bag of 5 units)*
£6.15
(exc. VAT)
£7.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 135 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 20 | £1.23 | £6.15 |
| 25 - 45 | £1.152 | £5.76 |
| 50 - 120 | £0.88 | £4.40 |
| 125 - 245 | £0.796 | £3.98 |
| 250 + | £0.768 | £3.84 |
*price indicative
- RS Stock No.:
- 913-9053
- Mfr. Part No.:
- MMS 124
- Brand:
- KNITTER-SWITCH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KNITTER-SWITCH | |
| Contact Configuration | SPST | |
| Mounting Type | PCB | |
| Switch Operation | Latching | |
| Contact Current Rating | 200 mA @ 12 V dc, 300 mA @ 6 V dc, 500 mA @ 4 V dc | |
| Terminal Type | PC Pin | |
| Actuator Type | Slide | |
| Length | 8.8mm | |
| Width | 5mm | |
| Depth | 2.7mm | |
| Dimensions | 8.8 x 5 x 2.7mm | |
| Contact Resistance | 70mΩ | |
| Mechanical Life | 10000Cycles | |
| Voltage Rating | 4 V dc, 6 V dc, 12V dc | |
| Actuator Material | Polyamide | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Phosphor Bronze | |
| Operating Temperature Range | -40 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand KNITTER-SWITCH | ||
Contact Configuration SPST | ||
Mounting Type PCB | ||
Switch Operation Latching | ||
Contact Current Rating 200 mA @ 12 V dc, 300 mA @ 6 V dc, 500 mA @ 4 V dc | ||
Terminal Type PC Pin | ||
Actuator Type Slide | ||
Length 8.8mm | ||
Width 5mm | ||
Depth 2.7mm | ||
Dimensions 8.8 x 5 x 2.7mm | ||
Contact Resistance 70mΩ | ||
Mechanical Life 10000Cycles | ||
Voltage Rating 4 V dc, 6 V dc, 12V dc | ||
Actuator Material Polyamide | ||
Minimum Operating Temperature -40°C | ||
Contact Material Phosphor Bronze | ||
Operating Temperature Range -40 → +85°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- CN
Knitter Switch Micro Miniature Slide Switches - MMP / MMS Series
These PCB microminiature slide switches are non shorting with brass, gold plated terminals.
