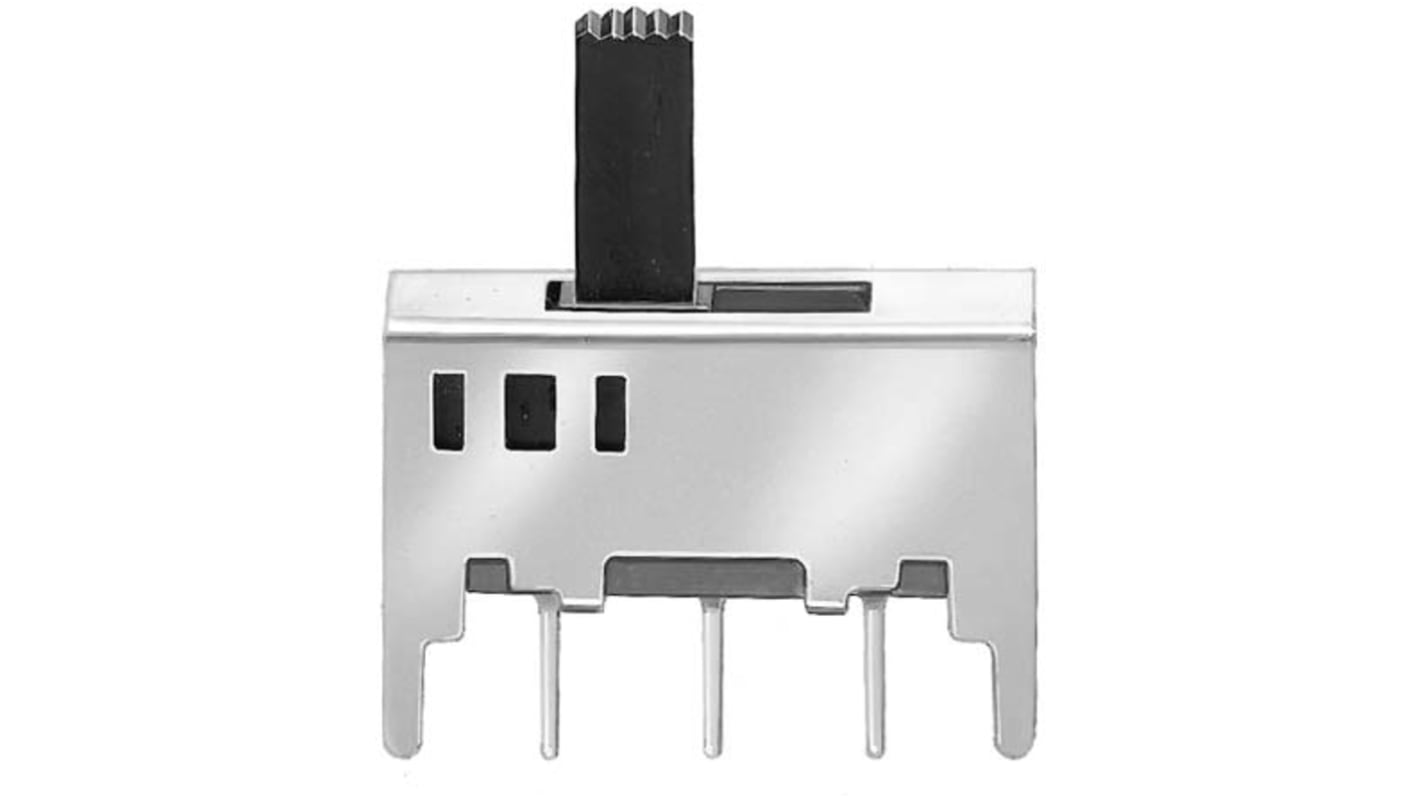

KNITTER-SWITCH PCB Slide Switch DPST Latching 350 mA @ 30 V dc Slide
- RS Stock No.:
- 913-9028
- Mfr. Part No.:
- MFP 211 N
- Brand:
- KNITTER-SWITCH
Bulk discount available
Subtotal (1 bag of 5 units)*
£2.89
(exc. VAT)
£3.47
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 235 unit(s) ready to ship
- Plus 190 unit(s) ready to ship from another location
- Plus 250 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 45 | £0.578 | £2.89 |
| 50 - 245 | £0.52 | £2.60 |
| 250 - 495 | £0.432 | £2.16 |
| 500 - 1245 | £0.406 | £2.03 |
| 1250 + | £0.37 | £1.85 |
*price indicative
- RS Stock No.:
- 913-9028
- Mfr. Part No.:
- MFP 211 N
- Brand:
- KNITTER-SWITCH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KNITTER-SWITCH | |
| Contact Configuration | DPST | |
| Mounting Type | PCB | |
| Switch Operation | Latching | |
| Contact Current Rating | 350 mA @ 30 V dc | |
| Terminal Type | PC Pin | |
| Actuator Type | Slide | |
| Length | 16mm | |
| Width | 6.5mm | |
| Depth | 15mm | |
| Dimensions | 16 x 6.5 x 15mm | |
| Contact Resistance | 20mΩ | |
| Mechanical Life | 10000Operations | |
| Voltage Rating | 30V dc | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | -20 → +85°C | |
| Actuator Material | Polyoxymethylene | |
| Minimum Operating Temperature | -20°C | |
| Contact Material | Copper Alloy | |
| Select all | ||
|---|---|---|
Brand KNITTER-SWITCH | ||
Contact Configuration DPST | ||
Mounting Type PCB | ||
Switch Operation Latching | ||
Contact Current Rating 350 mA @ 30 V dc | ||
Terminal Type PC Pin | ||
Actuator Type Slide | ||
Length 16mm | ||
Width 6.5mm | ||
Depth 15mm | ||
Dimensions 16 x 6.5 x 15mm | ||
Contact Resistance 20mΩ | ||
Mechanical Life 10000Operations | ||
Voltage Rating 30V dc | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -20 → +85°C | ||
Actuator Material Polyoxymethylene | ||
Minimum Operating Temperature -20°C | ||
Contact Material Copper Alloy | ||
- COO (Country of Origin):
- CN
Knitter Switch Miniature Slide Switches - MFP Series
PCB mount, Break before make
Contact material: copper alloy, silver plated over nickel barrier
Mechanical life: 10000 operations min.
Contact material: copper alloy, silver plated over nickel barrier
Mechanical life: 10000 operations min.
