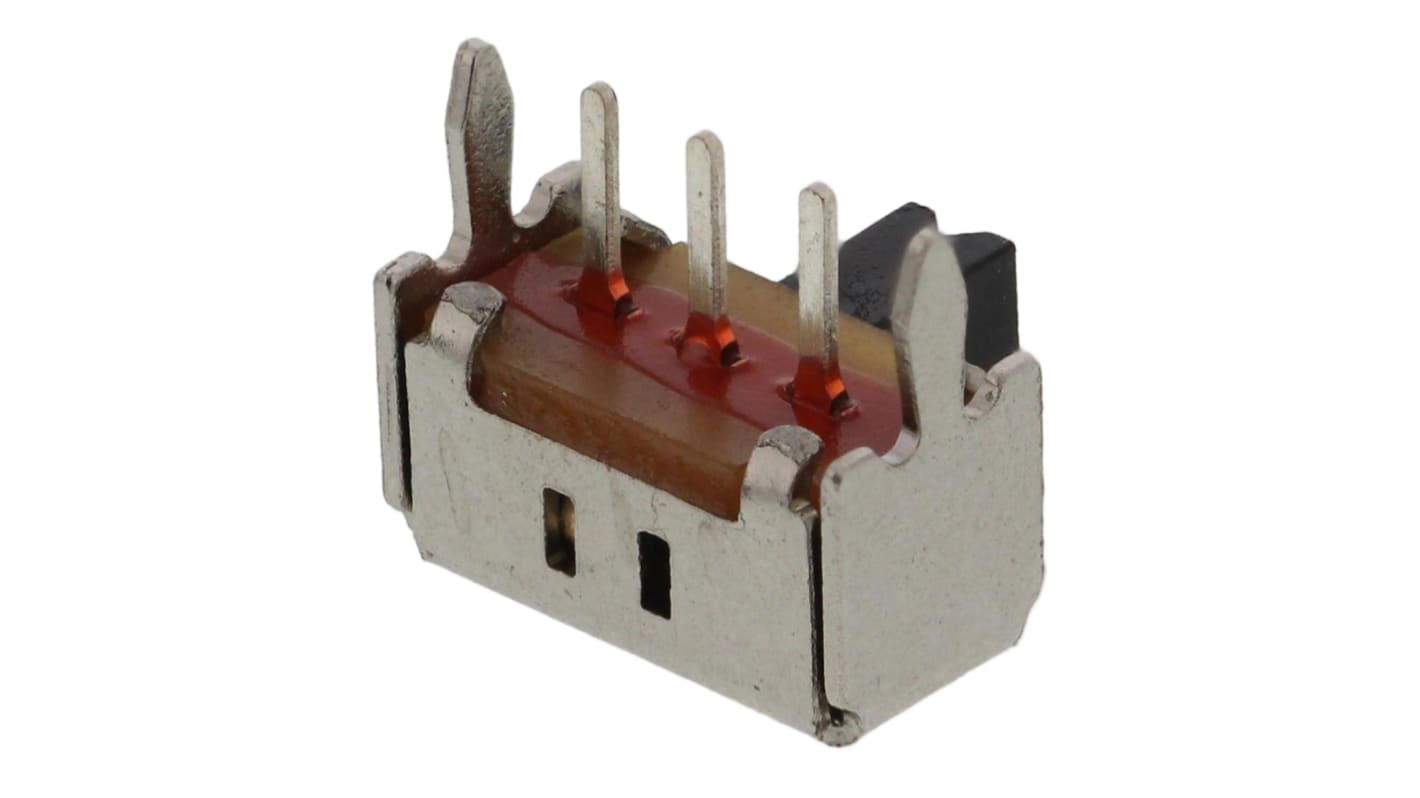

KNITTER-SWITCH PCB Slide Switch SPDT Latching 100 mA @ 12 V dc Slide
- RS Stock No.:
- 702-3631
- Mfr. Part No.:
- MFP113D-RA
- Brand:
- KNITTER-SWITCH
Bulk discount available
Subtotal (1 pack of 5 units)*
£3.09
(exc. VAT)
£3.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 30 unit(s) ready to ship
- Plus 165 unit(s) ready to ship from another location
- Plus 25 unit(s) shipping from 19 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.618 | £3.09 |
| 50 - 245 | £0.556 | £2.78 |
| 250 - 495 | £0.464 | £2.32 |
| 500 - 1245 | £0.434 | £2.17 |
| 1250 + | £0.396 | £1.98 |
*price indicative
- RS Stock No.:
- 702-3631
- Mfr. Part No.:
- MFP113D-RA
- Brand:
- KNITTER-SWITCH
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KNITTER-SWITCH | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB | |
| Switch Operation | Latching | |
| Contact Current Rating | 100 mA @ 12 V dc | |
| Terminal Type | Through Hole | |
| Actuator Type | Slide | |
| Length | 8.6mm | |
| Width | 4.3mm | |
| Depth | 11.3mm | |
| Dimensions | 8.6 x 4.3 x 11.3mm | |
| Contact Resistance | 20mΩ | |
| Voltage Rating | 12V | |
| Mechanical Life | 10000Operations | |
| Contact Material | Silver over Nickel Plated Copper Alloy | |
| Operating Temperature Range | -20 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -20°C | |
| Select all | ||
|---|---|---|
Brand KNITTER-SWITCH | ||
Contact Configuration SPDT | ||
Mounting Type PCB | ||
Switch Operation Latching | ||
Contact Current Rating 100 mA @ 12 V dc | ||
Terminal Type Through Hole | ||
Actuator Type Slide | ||
Length 8.6mm | ||
Width 4.3mm | ||
Depth 11.3mm | ||
Dimensions 8.6 x 4.3 x 11.3mm | ||
Contact Resistance 20mΩ | ||
Voltage Rating 12V | ||
Mechanical Life 10000Operations | ||
Contact Material Silver over Nickel Plated Copper Alloy | ||
Operating Temperature Range -20 → +85°C | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- CN
Knitter Switch Miniature Slide Switches - MFP Series
Copper alloy contacts with silver-plate over nickel barrier
Non-shorting contact timing
Black slide colour
Non-shorting contact timing
Black slide colour
