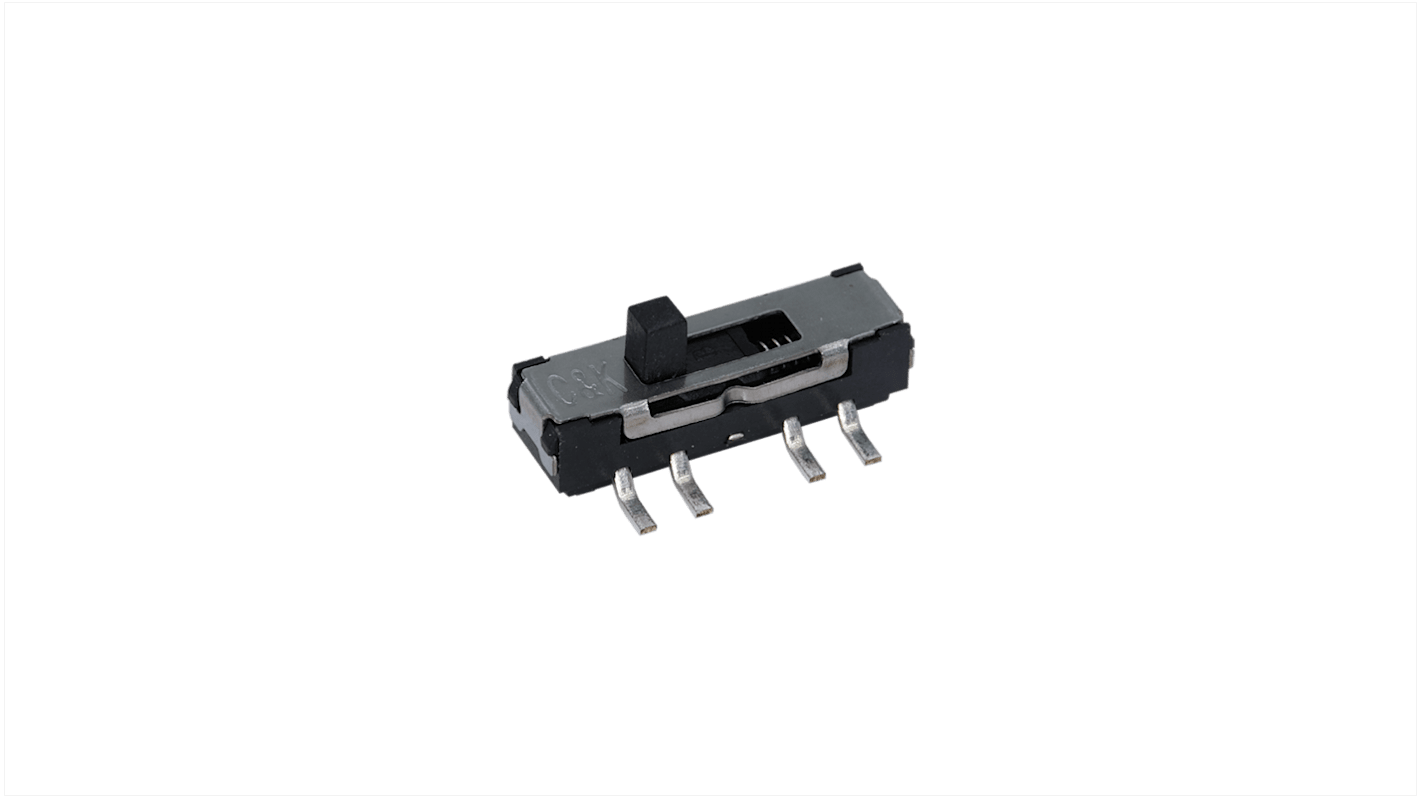

C & K Surface Slide Switch SPDT Momentary On-On 300 mA 4/6 Nylon
- RS Stock No.:
- 262-4404
- Mfr. Part No.:
- JS102011JCBN
- Brand:
- C & K
Bulk discount available
Subtotal (1 reel of 1000 units)*
£1,010.00
(exc. VAT)
£1,210.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 666,000 unit(s) shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 1000 | £1.01 | £1,010.00 |
| 2000 + | £0.955 | £955.00 |
*price indicative
- RS Stock No.:
- 262-4404
- Mfr. Part No.:
- JS102011JCBN
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Product Type | Slide Switch | |
| Contact Configuration | SPDT | |
| Mount Type | Surface | |
| Switch Operation | Momentary On-On | |
| Illuminated | No | |
| Switch Configuration | Non-shorting | |
| Standards/Approvals | RoHS Compliant | |
| Series | JS | |
| Mechanical Life | 5000Cycles | |
| Minimum Operating Temperature | -40°C | |
| Actuator Material | 4/6 Nylon | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Product Type Slide Switch | ||
Contact Configuration SPDT | ||
Mount Type Surface | ||
Switch Operation Momentary On-On | ||
Illuminated No | ||
Switch Configuration Non-shorting | ||
Standards/Approvals RoHS Compliant | ||
Series JS | ||
Mechanical Life 5000Cycles | ||
Minimum Operating Temperature -40°C | ||
Actuator Material 4/6 Nylon | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN
The C & K Sub miniature Slide Switches are used to designed for telecommunication products, computer peripherals, thermostat select switches and other various instrumentations for achieving low profile while performing high level operation. This sub miniature slide switches has positive detent feature. Switches are available in SPDT, DPDT and DP3T models.
Electrical life of product is 5000 make and break cycles
Contact resistance is 70 m ohm maximum
Insulation resistance is 100 M ohm minimum at 500V
Dielectric strength is 500 VAC minimum at sea level
Housing material is nylon with black color
