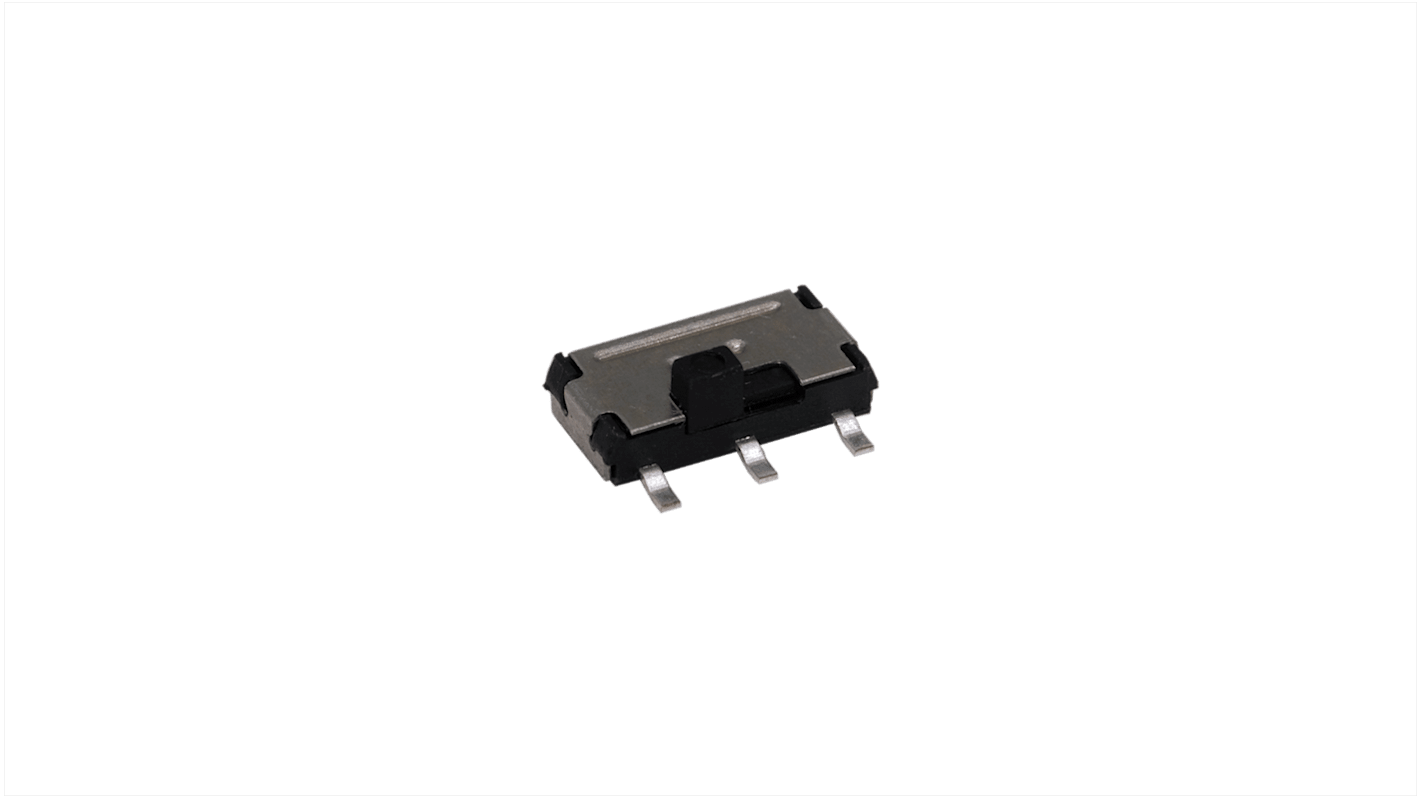

C & K Surface Slide Switch SPDT On-On 100 mA Glass Filled Nylon 4/6
- RS Stock No.:
- 262-4403
- Mfr. Part No.:
- AYZ0102AURLC
- Brand:
- C & K
Subtotal (1 tape of 2 units)*
£2.29
(exc. VAT)
£2.748
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 194 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 2 + | £1.145 | £2.29 |
*price indicative
- RS Stock No.:
- 262-4403
- Mfr. Part No.:
- AYZ0102AURLC
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPDT | |
| Product Type | Slide Switch | |
| Mount Type | Surface | |
| Switch Operation | On-On | |
| Contact DC Voltage | 12V dc | |
| Switch Configuration | 2P, DT, 1P, 3T | |
| Standards/Approvals | RoHS | |
| Series | AYZ | |
| Mechanical Life | 10000Operations | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Actuator Material | Glass Filled Nylon 4/6 | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPDT | ||
Product Type Slide Switch | ||
Mount Type Surface | ||
Switch Operation On-On | ||
Contact DC Voltage 12V dc | ||
Switch Configuration 2P, DT, 1P, 3T | ||
Standards/Approvals RoHS | ||
Series AYZ | ||
Mechanical Life 10000Operations | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Actuator Material Glass Filled Nylon 4/6 | ||
- COO (Country of Origin):
- CN
The C & K Miniature Slide Switches has low profile and are available in single or double pole models and double or triple throw models. Makers of computer peripherals, network products, telecommunication products, test and measurement equipment choose the AYZ series. Due to this high performance and reliability of operation can be possible.
Maximum switching power is 1.2
Maximum switching voltage is 12 VDC
Maximum switching current is 100 mA
Mechanical life is 10000 operations
Tape and reel packaging
Glass filled nylon material used for housing
