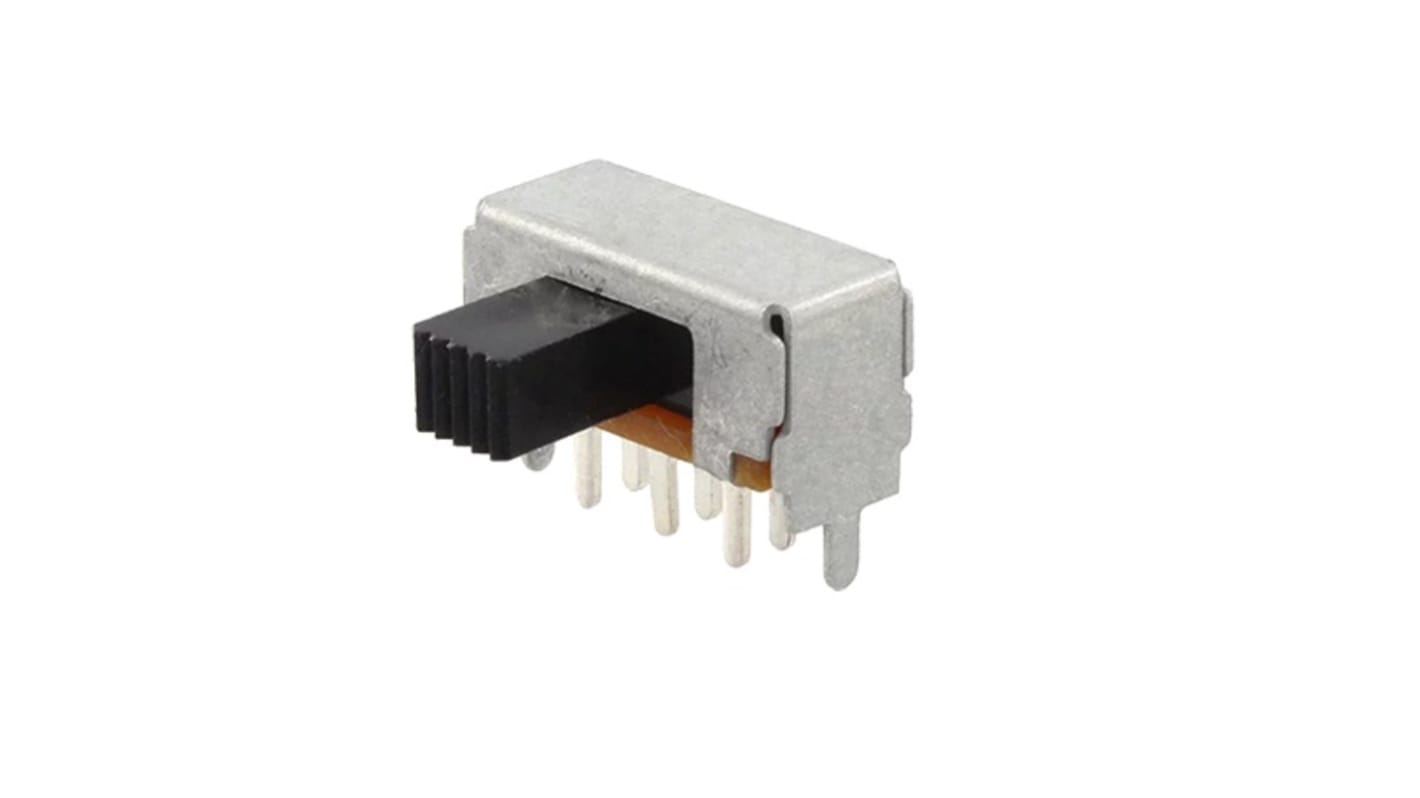

Nidec Components Through Hole Slide Switch DPDT On-On 10 mA Polyamide
- RS Stock No.:
- 244-4077
- Mfr. Part No.:
- MFS201N-24-Z
- Brand:
- Nidec Components
Bulk discount available
Subtotal (1 bag of 50 units)*
£38.50
(exc. VAT)
£46.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Bag* |
|---|---|---|
| 50 - 50 | £0.77 | £38.50 |
| 100 - 200 | £0.735 | £36.75 |
| 250 + | £0.707 | £35.35 |
*price indicative
- RS Stock No.:
- 244-4077
- Mfr. Part No.:
- MFS201N-24-Z
- Brand:
- Nidec Components
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nidec Components | |
| Product Type | Slide Switch | |
| Contact Configuration | DPDT | |
| Mount Type | Through Hole | |
| Switch Operation | On-On | |
| Terminal Type | Solder | |
| Illuminated | No | |
| Contact DC Voltage | 50V dc | |
| Switch Configuration | On-On | |
| Standards/Approvals | RoHS | |
| Depth | 6mm | |
| Series | MFS | |
| Length | 10mm | |
| Mechanical Life | 5000Steps | |
| Actuator Material | Polyamide | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Select all | ||
|---|---|---|
Brand Nidec Components | ||
Product Type Slide Switch | ||
Contact Configuration DPDT | ||
Mount Type Through Hole | ||
Switch Operation On-On | ||
Terminal Type Solder | ||
Illuminated No | ||
Contact DC Voltage 50V dc | ||
Switch Configuration On-On | ||
Standards/Approvals RoHS | ||
Depth 6mm | ||
Series MFS | ||
Length 10mm | ||
Mechanical Life 5000Steps | ||
Actuator Material Polyamide | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
- COO (Country of Origin):
- CN
The NIDEC COPAL ELECTRONICS MFS series subminiature slide switch which has an compatible operating temperature range of -10 to +70 degree Celsius. It is available with single to four pole for operation.
RoHS compliant
