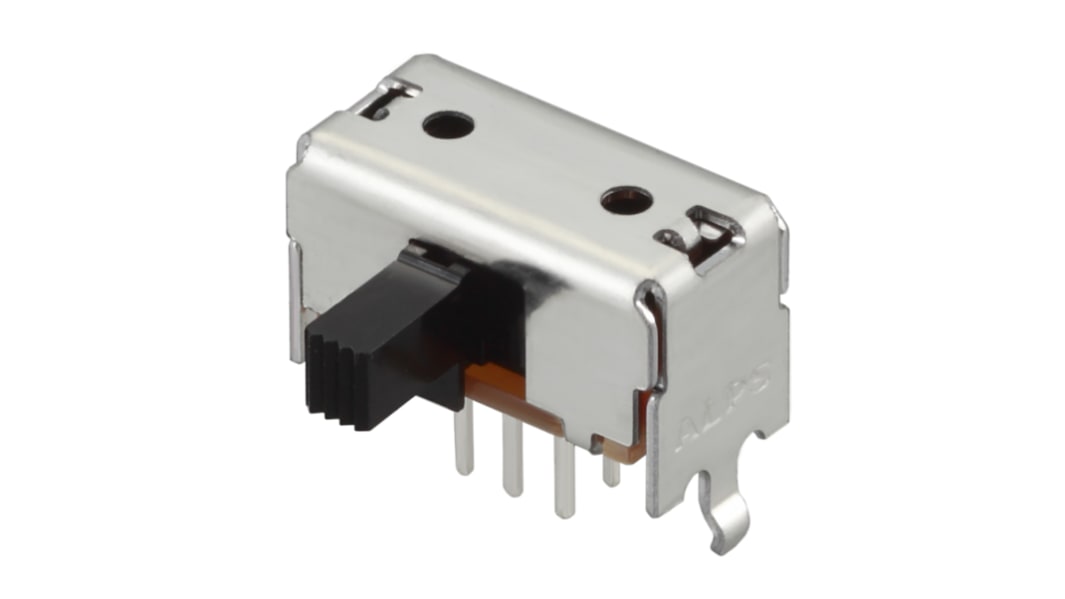

Alps Alpine Through Hole Slide Switch DPDT Latching 100 mA Slide
- RS Stock No.:
- 123-8907
- Mfr. Part No.:
- SSSF121900
- Brand:
- Alps Alpine
Bulk discount available
Subtotal (1 pack of 5 units)**
£7.69
(exc. VAT)
£9.23
(inc. VAT)
Available to back order for despatch when stock is available*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit | Per Pack** |
|---|---|---|
| 5 - 20 | £1.538 | £7.69 |
| 25 - 45 | £1.482 | £7.41 |
| 50 - 95 | £1.428 | £7.14 |
| 100 - 245 | £1.38 | £6.90 |
| 250 + | £1.334 | £6.67 |
**price indicative
- RS Stock No.:
- 123-8907
- Mfr. Part No.:
- SSSF121900
- Brand:
- Alps Alpine
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alps Alpine | |
| Contact Configuration | DPDT | |
| Mounting Type | Through Hole | |
| Switch Operation | Latching | |
| Contact Current Rating | 100 mA | |
| Actuator Type | Slide | |
| Length | 14.5mm | |
| Width | 13mm | |
| Depth | 8.5mm | |
| Dimensions | 14.5 x 13 x 8.5mm | |
| Contact Resistance | 25 (Initial) mΩ, 65 (After Lifetime) mΩ | |
| Mechanical Life | 10000Cycles | |
| Voltage Rating | 30V dc | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +85°C | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Alps Alpine | ||
Contact Configuration DPDT | ||
Mounting Type Through Hole | ||
Switch Operation Latching | ||
Contact Current Rating 100 mA | ||
Actuator Type Slide | ||
Length 14.5mm | ||
Width 13mm | ||
Depth 8.5mm | ||
Dimensions 14.5 x 13 x 8.5mm | ||
Contact Resistance 25 (Initial) mΩ, 65 (After Lifetime) mΩ | ||
Mechanical Life 10000Cycles | ||
Voltage Rating 30V dc | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +85°C | ||
Maximum Operating Temperature +85°C | ||
