NKK Switches PCB Slide Switch SPDT Latching 100 mA Polyphenylene Sulphide
- RS Stock No.:
- 197-965
- Mfr. Part No.:
- SS3-12SAH4
- Brand:
- NKK Switches

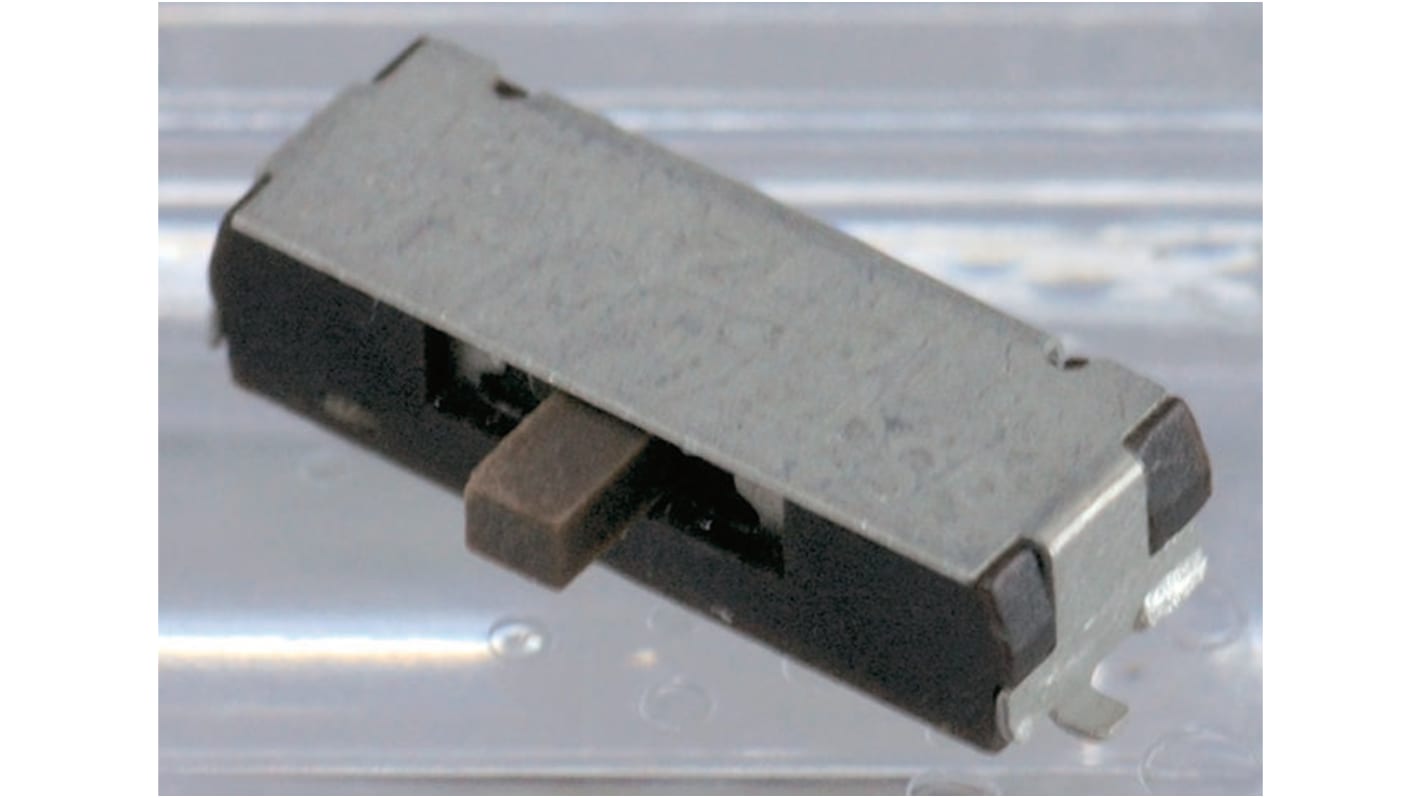

Image representative of range
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 197-965
- Mfr. Part No.:
- SS3-12SAH4
- Brand:
- NKK Switches
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NKK Switches | |
| Contact Configuration | SPDT | |
| Product Type | Slide Switch | |
| Mount Type | PCB | |
| Switch Operation | Latching | |
| Switch Contact Current | 100 mA | |
| Terminal Type | Solder | |
| Illuminated | No | |
| Contact DC Voltage | 12V dc | |
| Switch Configuration | On-On | |
| Series | SS3 | |
| Width | 2.9 mm | |
| Length | 9.2mm | |
| Standards/Approvals | RoHS | |
| Depth | 4mm | |
| Mechanical Life | 10000Operations | |
| Minimum Operating Temperature | -25°C | |
| Actuator Material | Polyphenylene Sulphide | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand NKK Switches | ||
Contact Configuration SPDT | ||
Product Type Slide Switch | ||
Mount Type PCB | ||
Switch Operation Latching | ||
Switch Contact Current 100 mA | ||
Terminal Type Solder | ||
Illuminated No | ||
Contact DC Voltage 12V dc | ||
Switch Configuration On-On | ||
Series SS3 | ||
Width 2.9 mm | ||
Length 9.2mm | ||
Standards/Approvals RoHS | ||
Depth 4mm | ||
Mechanical Life 10000Operations | ||
Minimum Operating Temperature -25°C | ||
Actuator Material Polyphenylene Sulphide | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- JP
