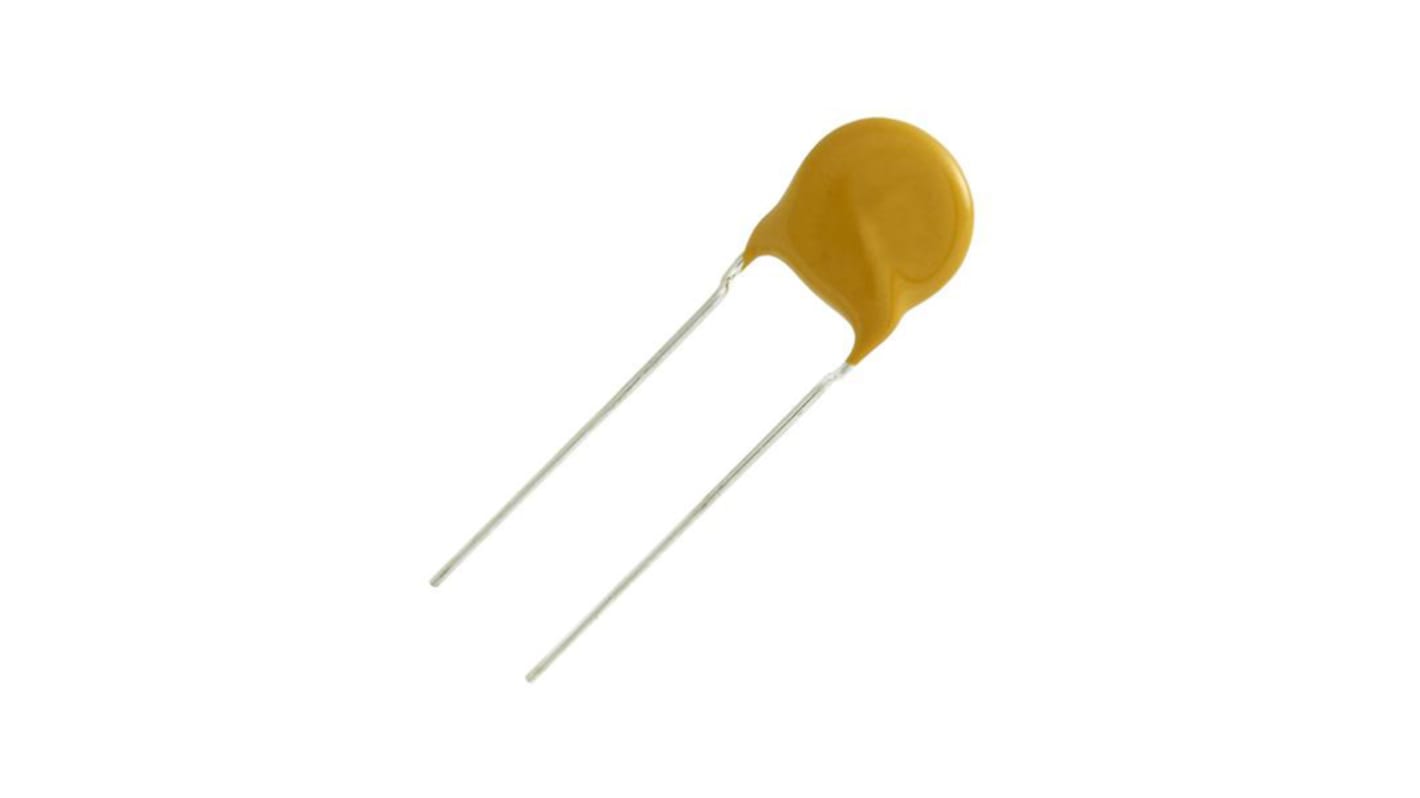

Vishay Single Layer Ceramic Capacitor 2.2 nF 6 kV dc ±20 % Z5U Dielectric, 564R, Through Hole 105 °C Max Op. Temp.
- RS Stock No.:
- 831-3253
- Mfr. Part No.:
- 564R60GAD22
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£1.65
(exc. VAT)
£1.98
(inc. VAT)
Add 44 units to get free delivery
Last RS stock
- 608 left, ready to ship
- Plus 256 left, ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 24 | £1.65 |
| 25 - 49 | £1.16 |
| 50 - 99 | £1.07 |
| 100 - 249 | £0.99 |
| 250 + | £0.90 |
*price indicative
- RS Stock No.:
- 831-3253
- Mfr. Part No.:
- 564R60GAD22
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Single Layer Ceramic Capacitor | |
| Capacitance | 2.2nF | |
| Voltage | 6 kV dc | |
| Mount Type | Through Hole | |
| Series | 564R | |
| Packaging | Tape & Reel | |
| Tolerance | ±20 % | |
| Dielectric | Z5U | |
| Automotive Standard | No | |
| Package/Case | Disc | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -25°C | |
| Width | 6.1 mm | |
| Diameter | 13.5 mm | |
| Standards/Approvals | RoHS | |
| Maximum Operating Temperature | 105°C | |
| Terminal Type | Radial | |
| Dissipation Factor | 0.1% | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Single Layer Ceramic Capacitor | ||
Capacitance 2.2nF | ||
Voltage 6 kV dc | ||
Mount Type Through Hole | ||
Series 564R | ||
Packaging Tape & Reel | ||
Tolerance ±20 % | ||
Dielectric Z5U | ||
Automotive Standard No | ||
Package/Case Disc | ||
Pin Count 2 | ||
Minimum Operating Temperature -25°C | ||
Width 6.1 mm | ||
Diameter 13.5 mm | ||
Standards/Approvals RoHS | ||
Maximum Operating Temperature 105°C | ||
Terminal Type Radial | ||
Dissipation Factor 0.1% | ||
- COO (Country of Origin):
- CZ
564R Series Ceramic Capacitors
The Vishay 564R series of singlelayer DC ceramic disc capacitors are designed for use in lighting ballasts, SMPS and other DC applications where high stability is required. The capacitors consist of a ceramic disc, with both sides silver plated and coated with a flame retardant epoxy resin.
High capacitance with small size
Low losses
High reliability
Tinned copper radial leads
X7R Dielectric
