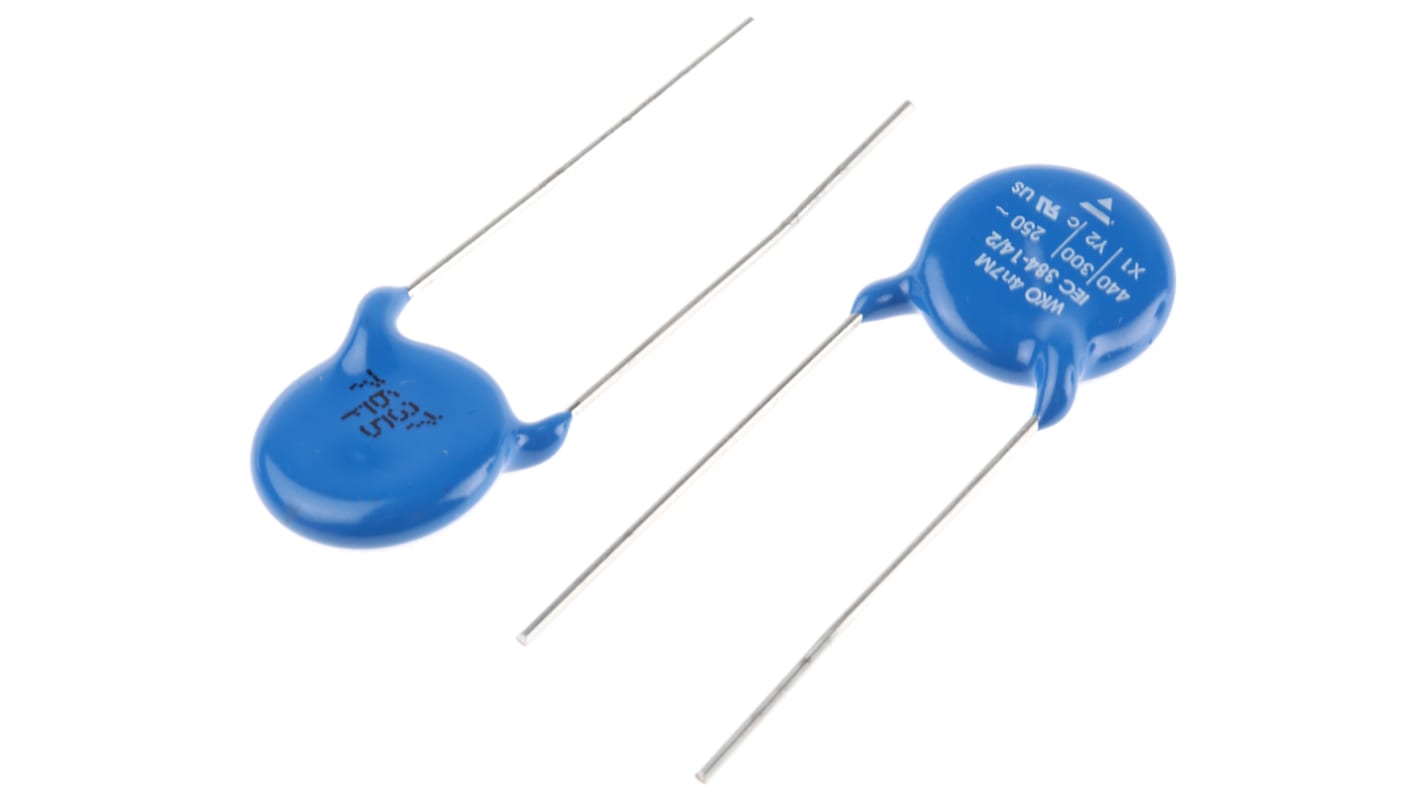

Vishay Single Layer Ceramic Capacitor 4.7 nF 400V ac ±20 % Y5U Dielectric, WYO, Through Hole 125 °C Max Op. Temp.
- RS Stock No.:
- 683-2204
- Mfr. Part No.:
- WKO472MCPEJ0KR
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 10 units)*
£9.54
(exc. VAT)
£11.45
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 20 left, ready to ship
- Plus 190 left, ready to ship from another location
- Plus 250 left, shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.954 | £9.54 |
| 100 - 240 | £0.658 | £6.58 |
| 250 - 490 | £0.62 | £6.20 |
| 500 - 990 | £0.572 | £5.72 |
| 1000 + | £0.525 | £5.25 |
*price indicative
- RS Stock No.:
- 683-2204
- Mfr. Part No.:
- WKO472MCPEJ0KR
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Single Layer Ceramic Capacitor | |
| Capacitance | 4.7nF | |
| Voltage | 400V ac | |
| Mount Type | Through Hole | |
| Series | WYO | |
| Tolerance | ±20 % | |
| Automotive Standard | No | |
| Dielectric | Y5U | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Length | 18mm | |
| Width | 5mm | |
| Standards/Approvals | EC, RoHS | |
| Diameter | 18mm | |
| Suppression Class | Class II | |
| Dissipation Factor | 2.5% | |
| Terminal Type | Radial | |
| Maximum Operating Temperature | 125°C | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Single Layer Ceramic Capacitor | ||
Capacitance 4.7nF | ||
Voltage 400V ac | ||
Mount Type Through Hole | ||
Series WYO | ||
Tolerance ±20 % | ||
Automotive Standard No | ||
Dielectric Y5U | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Length 18mm | ||
Width 5mm | ||
Standards/Approvals EC, RoHS | ||
Diameter 18mm | ||
Suppression Class Class II | ||
Dissipation Factor 2.5% | ||
Terminal Type Radial | ||
Maximum Operating Temperature 125°C | ||
WKO Series Ceramic Disc Capacitor
Vishay's AC line rated capacitors comprise of a ceramic radial mounted disc which is silver plated on each side and coated in a flame retardant epoxy resin. They feature tinned copper connection leads, offer a high degree of reliability and are suited to Line-by-pass and X1 and Y2 applications.
