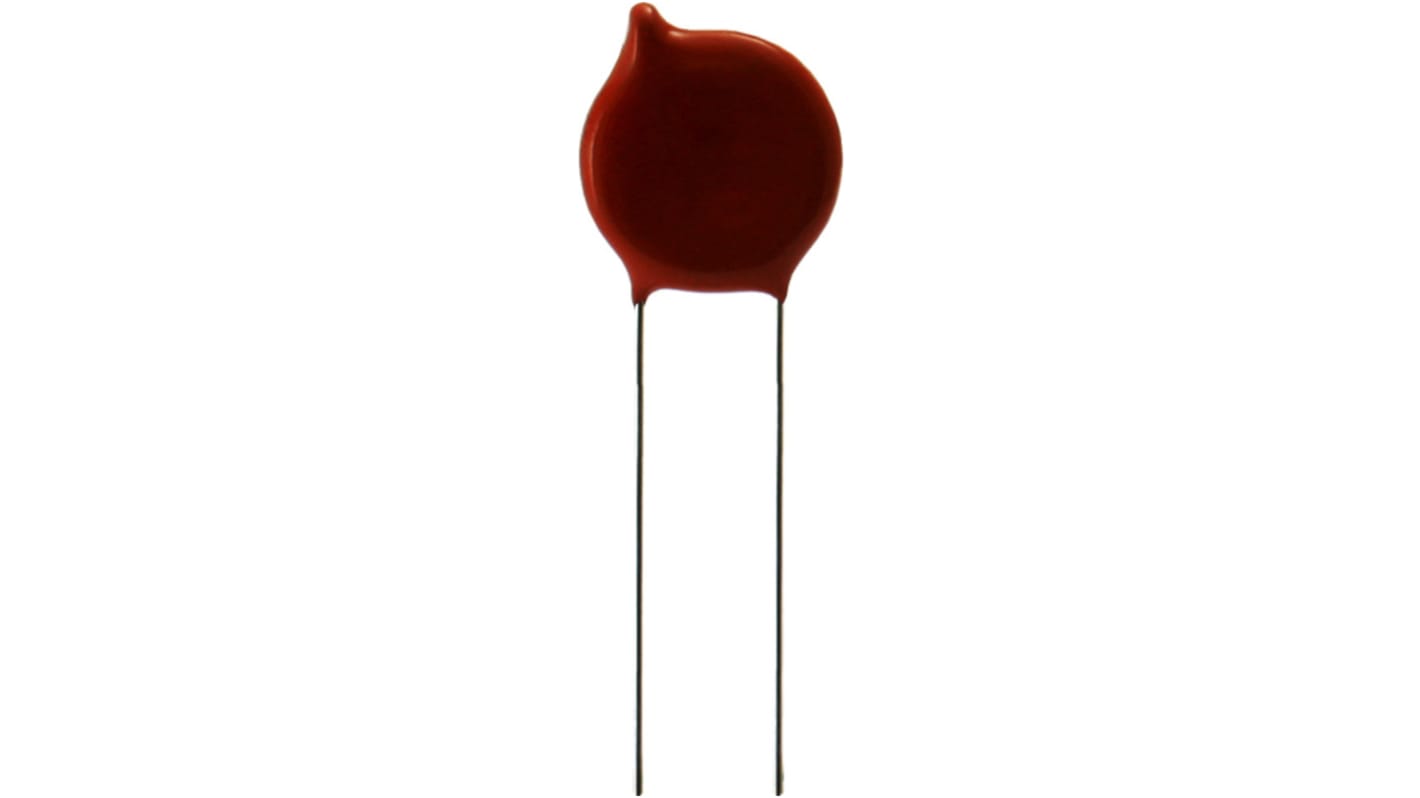

Vishay Single Layer Ceramic Capacitor (SLCC) 470pF 3kV dc ±20% X5S Dielectric, 564R, Through Hole +105°C Max Op. Temp.
- RS Stock No.:
- 181-6499
- Mfr. Part No.:
- 564R30GAT47
- Brand:
- Vishay
Bulk discount available
Subtotal (1 box of 250 units)*
£162.00
(exc. VAT)
£194.50
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 500 unit(s), ready to ship
Units | Per unit | Per Box* |
|---|---|---|
| 250 - 250 | £0.648 | £162.00 |
| 500 - 1000 | £0.631 | £157.75 |
| 1250 - 2250 | £0.615 | £153.75 |
| 2500 + | £0.599 | £149.75 |
*price indicative
- RS Stock No.:
- 181-6499
- Mfr. Part No.:
- 564R30GAT47
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Capacitance | 470pF | |
| Voltage | 3kV dc | |
| Mounting Type | Through Hole | |
| Series | 564R | |
| Tolerance | ±20% | |
| Dielectric | X5S | |
| Diameter | 8.4mm | |
| Depth | 4.4mm | |
| Dimensions | 8.4 Dia. x 40.4mm | |
| Suppression Class | Class II | |
| Terminal Type | Radial | |
| Dissipation Factor | 2% | |
| Minimum Operating Temperature | -25°C | |
| Dielectric Material Family | Ceramic | |
| Maximum Operating Temperature | +105°C | |
| Tolerance Minus | -20% | |
| Tolerance Plus | +20% | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Capacitance 470pF | ||
Voltage 3kV dc | ||
Mounting Type Through Hole | ||
Series 564R | ||
Tolerance ±20% | ||
Dielectric X5S | ||
Diameter 8.4mm | ||
Depth 4.4mm | ||
Dimensions 8.4 Dia. x 40.4mm | ||
Suppression Class Class II | ||
Terminal Type Radial | ||
Dissipation Factor 2% | ||
Minimum Operating Temperature -25°C | ||
Dielectric Material Family Ceramic | ||
Maximum Operating Temperature +105°C | ||
Tolerance Minus -20% | ||
Tolerance Plus +20% | ||
564R Series Ceramic Capacitors
The Vishay 564R series of singlelayer DC ceramic disc capacitors are designed for use in lighting ballasts, SMPS and other DC applications where high stability is required. The capacitors consist of a ceramic disc, with both sides silver plated and coated with a flame retardant epoxy resin.
High capacitance with small size
Low losses
High reliability
Tinned copper radial leads
Low losses
High reliability
Tinned copper radial leads
X7R Dielectric
