Patlite MP Series Buzzer Unit, LED Bulb 24V ac/dc, AC/DC, IP65
- RS Stock No.:
- 124-9162
- Distrelec Article No.:
- 303-17-608
- Mfr. Part No.:
- MP-B
- Brand:
- Patlite
Subtotal (1 unit)*
£51.35
(exc. VAT)
£61.62
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £51.35 |
*price indicative
- RS Stock No.:
- 124-9162
- Distrelec Article No.:
- 303-17-608
- Mfr. Part No.:
- MP-B
- Brand:
- Patlite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Patlite | |
| Product Type | Buzzer Unit | |
| Series | MP | |
| Component Type | Terminal Element | |
| Multifunction | No | |
| Current Type | AC/DC | |
| Sounder Type | Buzzer | |
| Mount Type | Base | |
| Current Consumption | 200mA | |
| Lamp Included | No | |
| Bulb Type | LED | |
| Terminal Type | Cable | |
| Maximum Supply Voltage | 24V ac/dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Sound Level | 80dB | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | CE Marking (EN 61000-6-4 and EN 61000-6-2), UL Recognised File No. E215660 | |
| Base Diameter | 30mm | |
| Hazardous Area Certification | No | |
| IP Rating | IP65 | |
| Housing Colour | Silver | |
| Select all | ||
|---|---|---|
Brand Patlite | ||
Product Type Buzzer Unit | ||
Series MP | ||
Component Type Terminal Element | ||
Multifunction No | ||
Current Type AC/DC | ||
Sounder Type Buzzer | ||
Mount Type Base | ||
Current Consumption 200mA | ||
Lamp Included No | ||
Bulb Type LED | ||
Terminal Type Cable | ||
Maximum Supply Voltage 24V ac/dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Sound Level 80dB | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals CE Marking (EN 61000-6-4 and EN 61000-6-2), UL Recognised File No. E215660 | ||
Base Diameter 30mm | ||
Hazardous Area Certification No | ||
IP Rating IP65 | ||
Housing Colour Silver | ||
- COO (Country of Origin):
- JP
Patlite MP Series
The MP series has various accessories available making them extremely versatile and suitable for a number of applications. They have been designed in a silver coloured body which is only 30mm in diameter and 220mm in height.

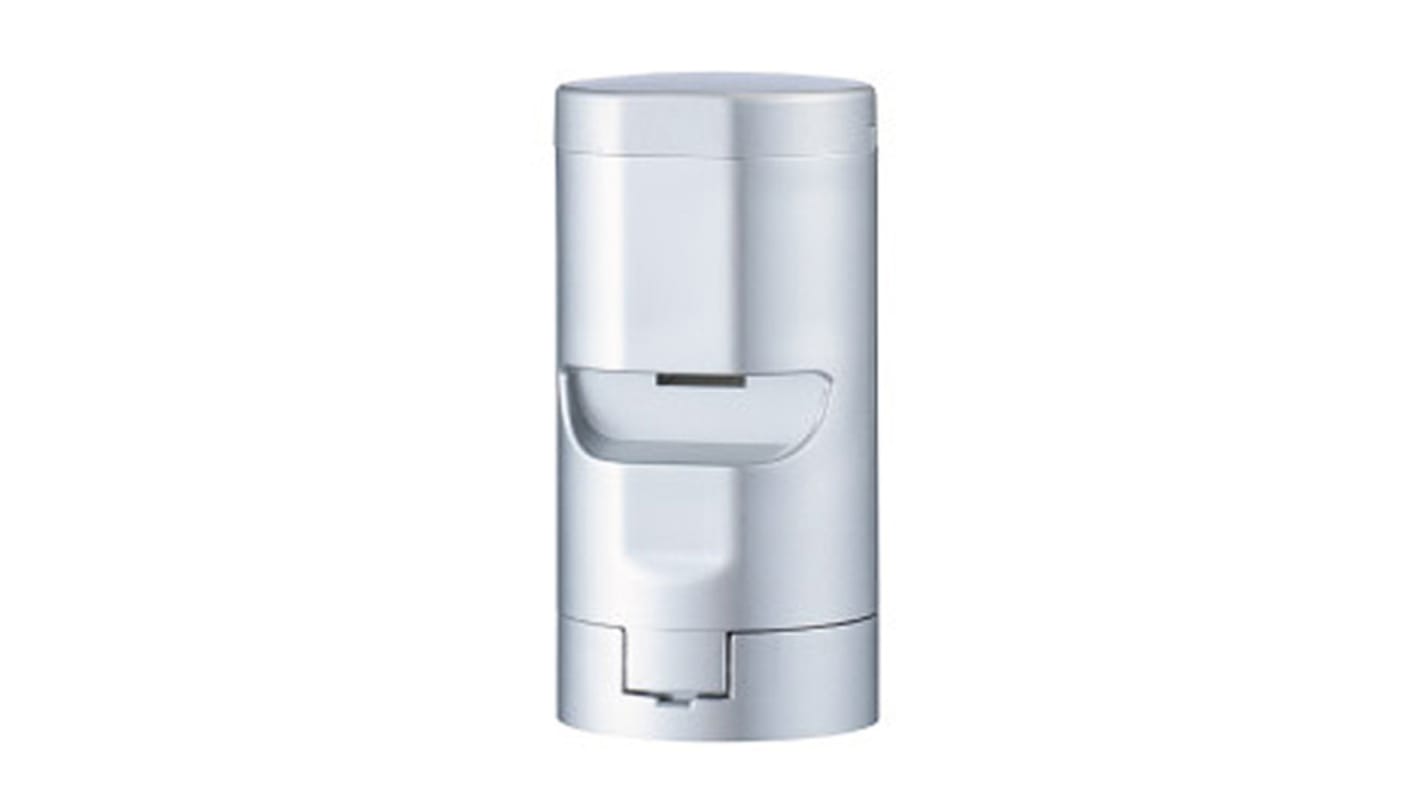

The MP-B is a slim style signal tower buzzer module. It has an adjustable buzzer module of up to 80dB (at 1m).
MP Series Features:
PATLITE's Exclusive Hybrid Prism Cut Lens: For enhanced visibility from any direction and distance
Double Insulation: For enhanced durability and safety in the work environment
Installation: Direct mount with a single hole
Interchangeable LED module: No re-wiring even after installation
Main Body: Superior impact and heat resistant ABS resin
Lens: Superior weather resistant and light translucent AS resin
Available colours: Red, Amber, Green, Blue, Clear/White
MP-B Series Features:
Easy attachment
Built-in adjustable buzzer sound of up to 80dB (at 1m)
Made of heat resistant ABS resin for superior impact resistance
RoHS, CE Conformity; UL Recognition; Complies with FCC Regulations
Operates in conjunction with the Red LED Unit
