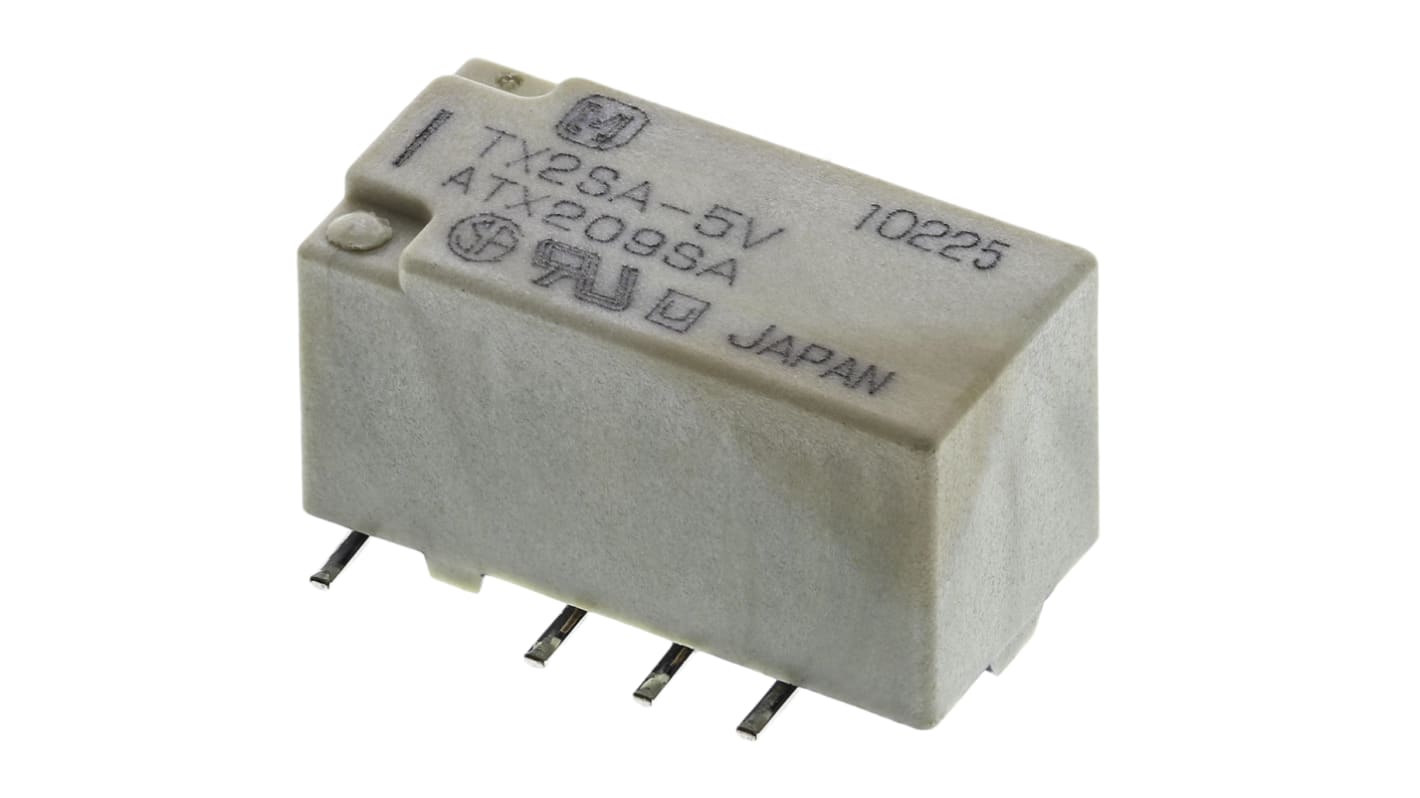

Panasonic Surface Mount Signal Relay, 5V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 173-8205
- Mfr. Part No.:
- TX2SA-5V
- Brand:
- Panasonic
Subtotal (1 tube of 40 units)**
£79.16
(exc. VAT)
£95.00
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit | Per Tube** |
|---|---|---|
| 40 - 40 | £1.979 | £79.16 |
| 80 - 120 | £1.837 | £73.48 |
| 160 - 280 | £1.788 | £71.52 |
| 320 - 600 | £1.74 | £69.60 |
| 640 + | £1.696 | £67.84 |
**price indicative
- RS Stock No.:
- 173-8205
- Mfr. Part No.:
- TX2SA-5V
- Brand:
- Panasonic
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | Surface Mount | |
| Maximum Switching Current DC | 2 A | |
| Maximum Switching Voltage DC | 220V | |
| Series | G6K | |
| Maximum Switching Power DC | 60 W | |
| Latching | No | |
| Length | 15mm | |
| Depth | 7.4mm | |
| Height | 8.2mm | |
| Dimensions | 15 x 8.2 x 7.4mm | |
| Terminal Type | Surface Mount | |
| Number of Poles | 2 | |
| Switching Current | 2A | |
| Application | High Voltage | |
| Maximum Operating Temperature | +85°C | |
| Coil Power | 140mW | |
| Minimum Operating Temperature | -40°C | |
| Isolation Coil To Contact | 750V | |
| Features | Outstanding Surge Resistance, Sealed Construction Allows Automatic Washing, | |
| Contact Material | Gold Plated | |
| Coil Resistance | 178Ω | |
| Operating Temperature Range | -40 → +85°C | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mounting Type Surface Mount | ||
Maximum Switching Current DC 2 A | ||
Maximum Switching Voltage DC 220V | ||
Series G6K | ||
Maximum Switching Power DC 60 W | ||
Latching No | ||
Length 15mm | ||
Depth 7.4mm | ||
Height 8.2mm | ||
Dimensions 15 x 8.2 x 7.4mm | ||
Terminal Type Surface Mount | ||
Number of Poles 2 | ||
Switching Current 2A | ||
Application High Voltage | ||
Maximum Operating Temperature +85°C | ||
Coil Power 140mW | ||
Minimum Operating Temperature -40°C | ||
Isolation Coil To Contact 750V | ||
Features Outstanding Surge Resistance, Sealed Construction Allows Automatic Washing, | ||
Contact Material Gold Plated | ||
Coil Resistance 178Ω | ||
Operating Temperature Range -40 → +85°C | ||
